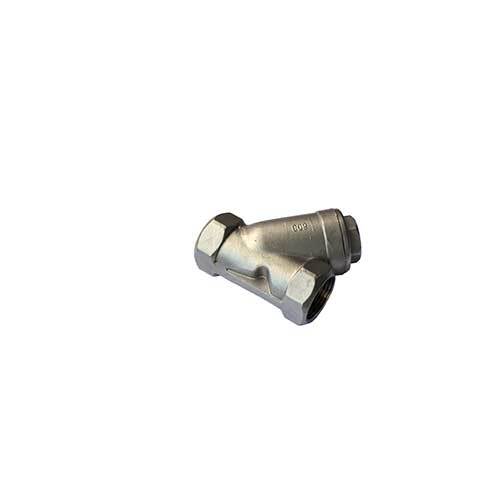

AAP Stainless Steel Y Strainer, 1/2"

This AAP stainless steel Y strainer has a CF8M stainless steel body and cap, a 316 stainless steel mesh, a PTFE gasket and female threaded ends. It is supplied in 8 sizes from 1/2" (15mm) to 3" (80mm).

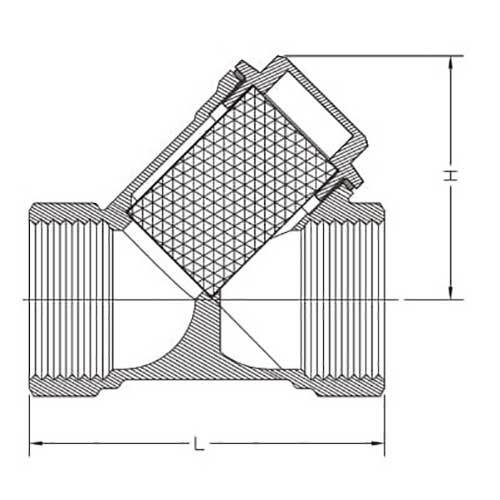

A Y strainer is fitted in line to protect control equipment, instruments, pumps and regulators. Fluid passes through a perforated stainless steel or wire mesh basket held in a Y shaped body. The basket traps fines and solids, which fall into the leg of the body. The leg can be flushed out while the plant is running if a ball valve is fitted to it, or the basket can be taken out for cleaning when the plant is shut down. The maximum working temperature is 230°C and the cold working pressure is 5,500 kPa (55 bar), with a thread to AS 1722.1.

Where this product is used

• Protecting inline valves, pumps and instruments from solids
• Corrosive or washdown lines that need stainless steel
• Higher temperature and pressure lines up to the rated pressure and temperature
• Process pipework in stainless steel

Features

• 8 sizes from 1/2" (15mm) to 3" (80mm)
• CF8M stainless steel body and cap with a 316 stainless steel mesh
• PTFE gasket
• Thread to AS 1722.1
• Cold working pressure 5,500 kPa (55 bar), maximum 230°C
• Mesh 1mm at 2mm centres

Key specifications

Choosing the right option

Choose the size to match your pipe thread.
