1/2 in (15 mm) Brass Foot Valve | VBF15

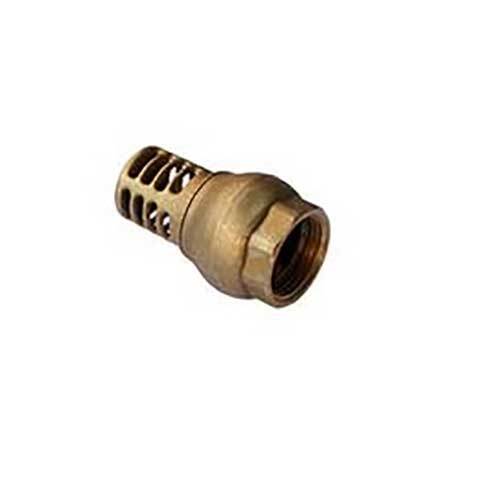

This AAP brass foot valve has a brass body, an NBR gasket and a female threaded connection. It is supplied in 9 sizes from 1/2 in (15 mm) to 4 in (100 mm).

A foot valve is a one-way valve fitted at the foot of a pump suction pipe. It holds liquid in the suction line when the pump stops, which helps keep the pump primed, and the strainer basket on the inlet keeps solids out. The AAP drawing shows a perforated strainer basket on the inlet end.

AAP gives a maximum working temperature of 100 degrees C and a cold working pressure of 965 kPa (9.65 bar), with a thread to AS 1722.1, and lists the valve for general, irrigation and rural services (all manufacturer-stated). AAP lists the body as brass and the gasket as NBR, and does not list the internal seat or spring materials.

Where this product is used

• Pump suction lines on tanks, dams and bores
• Irrigation and rural water services
• General water transfer
• Keeping a pump primed between starts

Features

• 9 sizes from 1/2 in (15 mm) to 4 in (100 mm)
• Brass body with an NBR gasket and an inlet strainer basket
• Thread to AS 1722.1 (manufacturer-stated)
• Cold working pressure 965 kPa (9.65 bar), maximum 100 degrees C (manufacturer-stated)
• Listed for general, irrigation and rural services (manufacturer-stated)

Materials

Key specifications

Options and part numbers

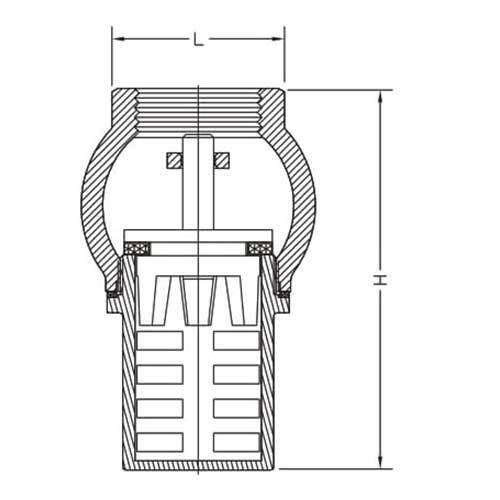

L is the width across the valve and H is its overall height with the strainer, as shown on the AAP drawing.

Selecting the right option

Choose the size to match your suction pipe thread. L is the width across the valve and H is its overall height with the strainer, as shown on the AAP drawing. AAP also lists galvanised and stainless steel flanged quick release foot valves for larger lines.
