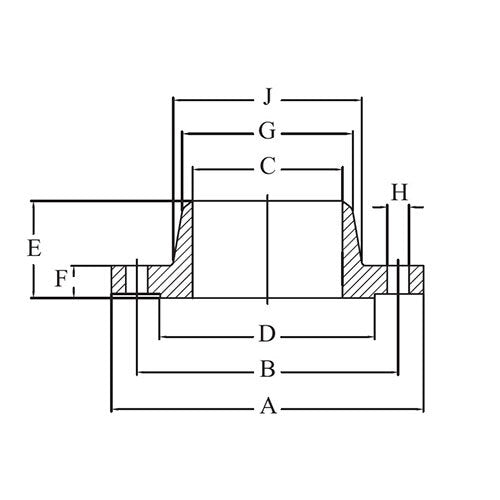

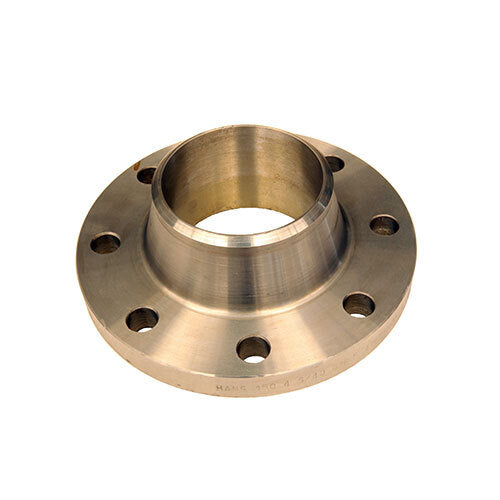

AAP weld neck flange, 1/2"
Available
This AAP weld neck flange is made from carbon steel to ANSI B16.5 Class 150. It is supplied in 13 sizes from 1/2" (15mm) to 12" (300mm).
A weld neck flange has a long tapered hub that is butt welded to the pipe, which passes load smoothly into the pipe wall. It is the usual choice where pressure, temperature or cyclic loading is higher. Forged steel flanges are commonly specified in the oil, gas, petrochemical and mining sectors, where pressure, temperature and safety considerations are higher. They are hot forged and then machined. A105 forgings are not recommended for prolonged use above 427 °C.
Where this product is used
- Pipework with higher pressure, temperature or cyclic loading
- Joints to flanged valves, pumps and vessels where a butt weld is specified
- Connections to pressure vessel and equipment nozzles
- Oil, gas, petrochemical and mining pipework
Features
- 13 sizes from 1/2" (15mm) to 12" (300mm)
- Made to ANSI B16.5 Class 150
- Material: carbon steel (ratings for ASTM A105 forgings)
- Raised face, 1.6mm raised face height
- Maximum working pressure 1,960 kPa (19.6 bar) up to 38 °C
- Tapered hub, butt welded to the pipe
- Marked where possible with heat number, size, table, grade and dimensional standard
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product type | Weld Neck Flange |
| Flange type | Weld neck flange |
| Standard | ANSI B16.5 Class 150 |
| Material | Carbon steel (ratings for ASTM A105 forgings) |
| Face | Raised face, 1.6mm raised face height |
| Connection | Weld neck, butt welded to the pipe |
| Sizes | 1/2" (15mm) to 12" (300mm) (13 sizes) |
| Maximum working pressure | 1,960 kPa (19.6 bar) at -29 to 38 °C |
| Marking | Where possible: heat number, size, table, grade and dimensional standard |
Choosing the right option
Match the standard and table or class to the mating flange and compare the drilling dimensions, because flanges made to different standards are not interchangeable. Gaskets and bolting are not included.
Related AAP products: AAP Blind Flange, ANSI B16.5 Class 150, AAP Slip-On Weld Flange, ANSI B16.5 Class 150, AAP Weld Neck Flange XS, ANSI B16.5 Class 150, AAP Weld Neck Flange, ANSI B16.5 Class 300.
| Option | Part number | SKU |
|---|---|---|
| 1/2" | PFW15 | A0078848 |
| 1" | PFW25 | A0078850 |
| 1-1/4" | PFW32 | A0078851 |
| 1-1/2" | PFW40 | A0078852 |
| 2" | PFW50 | A0078853 |
| 2-1/2" | PFW65 | A0078854 |
| 3/4" | PFW20 | A0078849 |
| 3" | PFW80 | A0078855 |
| 4" | PFW94 | A0078856 |
| 6" | PFW96 | A0078858 |
| 8" | PFW98 | A0078859 |
| 10" | PFWX25 | A0078860 |
| 12" | PFWX30 | A0078861 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Weld Neck Flange, ANSI B16.5 Class 150: 1/2"
SKU: A0078848 | Model: PFW15
AAP PFW15: AAP weld neck flange, 1/2". Pipe Size (inch): 1/2". Drilling Bolt Size: 1/2". Drilling No. Of Holes: 4.
