1/2 in (15 mm) Slip-On Weld Flange, ANSI B16.5 Class 150 | PF15
Available

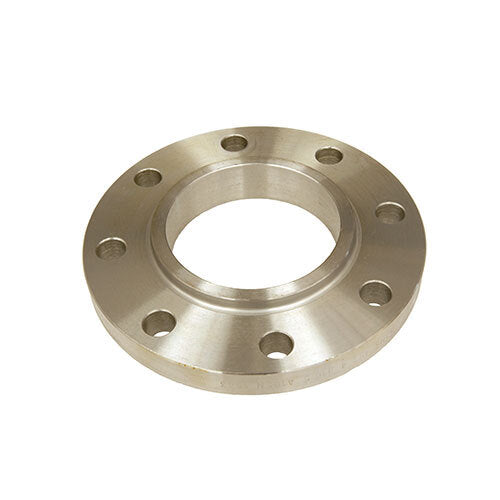

This AAP slip-on weld flange is made from carbon steel to ANSI B16.5 Class 150 (manufacturer-stated). It is supplied in 19 sizes from 1/2 in (15 mm) to 24 in (600 mm).
A slip-on flange slides over the end of the pipe and is fillet welded to it. It is easier to align than a weld neck flange and suits general pipework. AAP describes forged steel flanges as commonly specified in the oil, gas, petrochemical and mining sectors, where pressure, temperature and safety considerations are higher. They are hot forged and then machined.
AAP's temperature and pressure table for ASTM A105 flanges lists a maximum working pressure of 1,960 kPa (19.6 bar) for Class 150 from -29 to 38 °C, falling to 560 kPa (5.6 bar) at 425 °C. AAP notes that A105 forgings are not recommended for prolonged use above 427 °C.
Where this product is used
- General pipework joints where the flange is welded on to the pipe
- Connecting pipe to flanged valves, pumps and fittings
- Replacing or extending flanged pipework
- Oil, gas, petrochemical and mining pipework
Features
- 19 sizes from 1/2 in (15 mm) to 24 in (600 mm)
- Made to ANSI B16.5 Class 150 (manufacturer-stated)
- Material: carbon steel (AAP quotes ratings for ASTM A105 forgings)
- Raised face, 1.6 mm raised face height
- Maximum working pressure 1,960 kPa (19.6 bar) up to 38 °C, per the manufacturer
- Slip-on design, fillet welded to the pipe
- Marked where possible with heat number, size, table, grade and dimensional standard
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Flange type | Slip-on weld flange |
| Standard (manufacturer-stated) | ANSI B16.5 Class 150 |
| Material | Carbon steel (AAP quotes ratings for ASTM A105 forgings) |
| Face | Raised face, 1.6 mm raised face height |
| Connection | Slip-on, fillet welded to the pipe |
| Sizes | 1/2 in (15 mm) to 24 in (600 mm) (19 sizes) |
| Maximum working pressure | 1,960 kPa (19.6 bar) at -29 to 38 °C |
| Marking | Where possible: heat number, size, table, grade and dimensional standard |
Options and part numbers

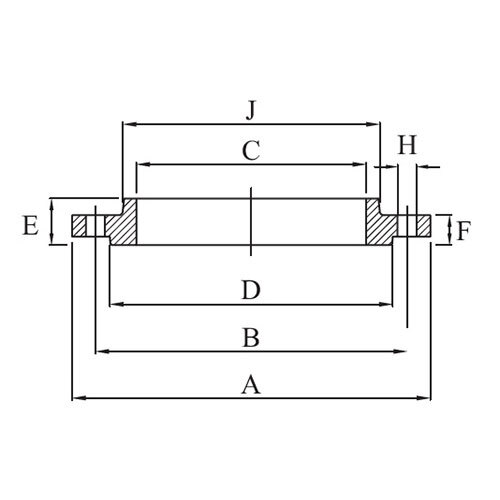

| Size | Part number | OD (mm) | PCD (mm) | Bore (mm) | Holes | Bolt size | Thickness (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 1/2 in (15 mm) | PF15 | 89 | 60.3 | 22.3 | 4 x 16 mm | 1/2 in | 11.1 | 0.5 |
| 3/4 in (20 mm) | PF20 | 98.5 | 69.8 | 27.6 | 4 x 16 mm | 1/2 in | 12.8 | 0.9 |
| 1 in (25 mm) | PF25 | 108 | 79.3 | 34.5 | 4 x 16 mm | 1/2 in | 14.3 | 0.9 |
| 1-1/4 in (32 mm) | PF32 | 117.5 | 88.9 | 43.1 | 4 x 16 mm | 1/2 in | 15.9 | 1.4 |
| 1-1/2 in (40 mm) | PF40 | 127.1 | 98.4 | 49.5 | 4 x 16 mm | 1/2 in | 17.5 | 1.4 |
| 2 in (50 mm) | PF50 | 152.5 | 120.6 | 61.9 | 4 x 20 mm | 5/8 in | 19.1 | 2.3 |
| 2-1/2 in (65 mm) | PF65 | 177.9 | 139.7 | 74.6 | 4 x 20 mm | 5/8 in | 22.3 | 3.2 |
| 3 in (80 mm) | PF80 | 190.6 | 152.4 | 90.6 | 4 x 20 mm | 5/8 in | 23.8 | 3.6 |
| 4 in (100 mm) | PF94 | 228.7 | 190.5 | 116 | 8 x 20 mm | 5/8 in | 23.8 | 5.9 |
| 5 in (125 mm) | PF95 | 254.1 | 215.9 | 143.7 | 8 x 22 mm | 3/4 in | 23.8 | 6.8 |
| 6 in (150 mm) | PF96 | 279.5 | 241.3 | 170.6 | 8 x 22 mm | 3/4 in | 25.5 | 8.6 |
| 8 in (200 mm) | PF98 | 343 | 298.4 | 221.4 | 8 x 22 mm | 3/4 in | 28.6 | 13.6 |
| 10 in (250 mm) | PFX25 | 406.5 | 361.9 | 276.3 | 12 x 26 mm | 7/8 in | 30.2 | 19.5 |
| 12 in (300 mm) | PFX30 | 482.7 | 431.8 | 327.1 | 12 x 26 mm | 7/8 in | 31.8 | 29.1 |
| 14 in (350 mm) | PFX35 | 533.5 | 476.2 | 359.1 | 12 x 30 mm | 1 in | 35 | 40.9 |
| 16 in (400 mm) | PFX40 | 597 | 539.7 | 410.4 | 16 x 30 mm | 1 in | 36.5 | 44.5 |
| 18 in (450 mm) | PFX45 | 635.1 | 577.8 | 461.7 | 16 x 33 mm | 1-1/8 in | 39.7 | 59 |
| 20 in (500 mm) | PFX50 | 698.6 | 635 | 513 | 20 x 33 mm | 1-1/8 in | 42.9 | 75 |
| 24 in (600 mm) | PFX60 | 812.9 | 749.3 | 615.9 | 20 x 36 mm | 1-1/4 in | 47.7 | 100 |
Selecting the right option
Check the pipe outside diameter against the flange bore before ordering. Match the standard and table or class to the mating flange and compare the drilling dimensions listed on this page, because flanges made to different standards are not interchangeable. Gaskets and bolting are not part of this listing. If you are not sure what suits, contact AIMS with the standard and size of the mating flange.
Related products
See also AAP Blind Flange, ANSI B16.5 Class 150, AAP Weld Neck Flange, ANSI B16.5 Class 150, AAP Weld Neck Flange XS, ANSI B16.5 Class 150, AAP Slip-On Weld Flange, ANSI B16.5 Class 300, AAP Insertion Gasket - Compressed Fiber Ring and AAP Insertion Gasket - Spiral Wound.
