AAP slip-on weld flange, 1/2"

This AAP slip-on weld flange is made from carbon steel to ANSI B16.5 Class 300. It is supplied in 15 sizes from 1/2" (15mm) to 16" (400mm).

A slip-on flange slides over the end of the pipe and is fillet welded to it. It is easier to align than a weld neck flange and suits general pipework. Forged steel flanges are commonly specified in the oil, gas, petrochemical and mining sectors, where pressure, temperature and safety considerations are higher. They are hot forged and then machined. A105 forgings are not recommended for prolonged use above 427 °C.

Where this product is used

• General pipework joints where the flange is welded on to the pipe
• Connecting pipe to flanged valves, pumps and fittings
• Replacing or extending flanged pipework
• Oil, gas, petrochemical and mining pipework

Features

• 15 sizes from 1/2" (15mm) to 16" (400mm)
• Made to ANSI B16.5 Class 300
• Material: carbon steel (ratings for ASTM A105 forgings)
• Raised face, 1.6mm raised face height
• Maximum working pressure 5,110 kPa (51.1 bar) up to 38 °C
• Slip-on design, fillet welded to the pipe
• Marked where possible with heat number, size, table, grade and dimensional standard

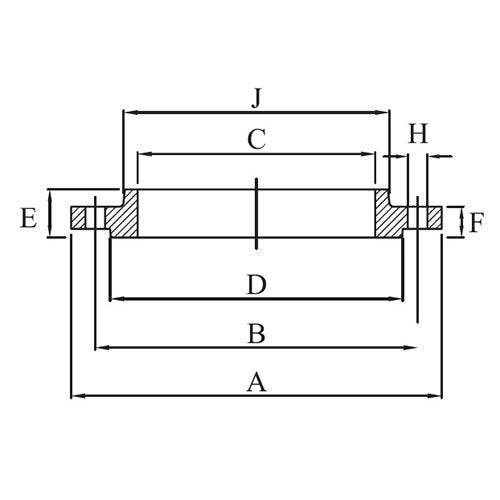

Key specifications

Choosing the right option

Check the pipe outside diameter against the flange bore before ordering. Match the standard and table or class to the mating flange and compare the drilling dimensions, because flanges made to different standards are not interchangeable. Gaskets and bolting are not included.
