Abbott & Ashby Linishing attachment

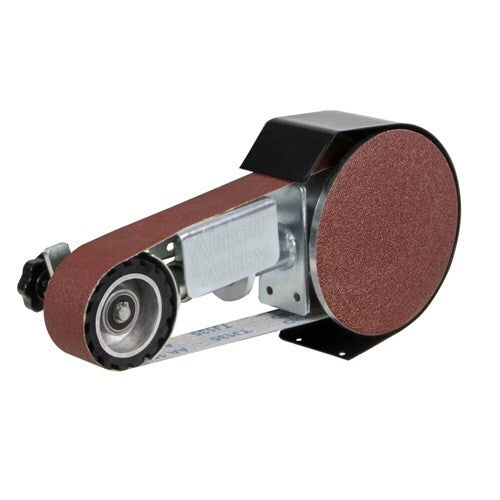

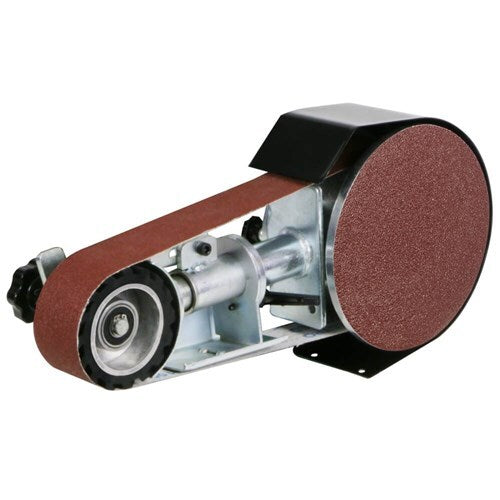

Abbott & Ashby AA362 is a linishing attachment that takes a 915 x 50mm (36 x 2") belt. It is installed on the left or right side of most 150mm (6") and 200mm (8") bench grinders with a maximum shaft size of 16mm. The belt is shorter than the 1,220mm belt on AA482.

Where this product is used

• Linishing and flat surface grinding on a bench grinder
• Belt finishing of metal parts in the workshop

Features

• Left or right side installation on most 150mm (6") and 200mm (8") grinders with a shaft up to 16mm
• Top platen for flat surface grinding, which can be moved out of the way for free strapping
• Working angle changes in 6° increments without disassembly, with 360° no tools rotation and a platen pivot
• Belt tracking adjustment knob and lock at the front of the unit
• Fast belt changes with a self-locking push in push out arm
• Abrasive disc on the side, which takes the mitre table attachment

Key specifications

Choosing the right option

Choose AA362 if you already have a bench grinder with a shaft of 16mm or less. The belt size is 915 x 50mm (36 x 2"); the other attachment, AA482 linishing attachment (1,220 x 50mm belt), takes a longer 1,220 x 50mm belt. If you want the grinder and linisher together, AA362W6 and AA362W8 industrial grinders with AA362 linisher and AA362W8-1100 professional grinder with AA362 linisher come with the AA362 fitted. The mitre table suits this attachment.

See also: aluminium oxide belts (3-packs), aluminium oxide belts (10-packs), assorted grit belts (5-pack), surface conditioning belts.
