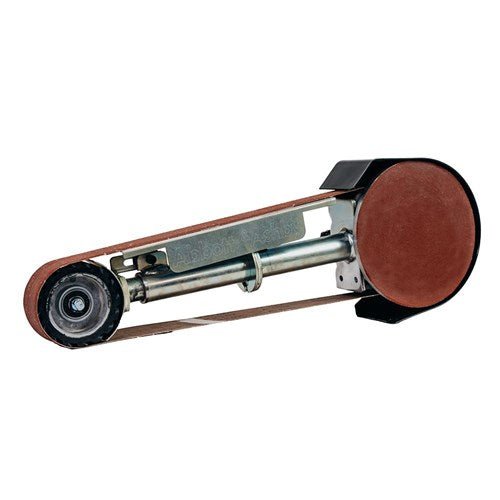

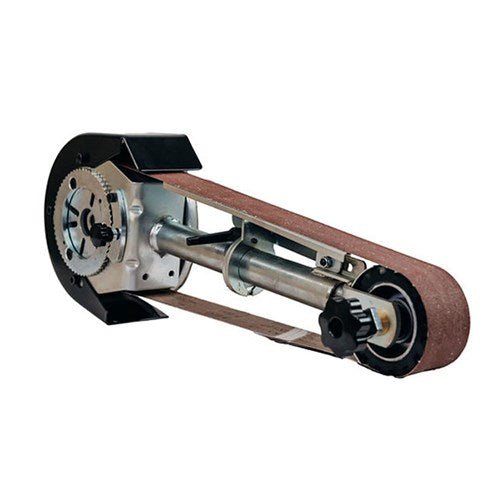

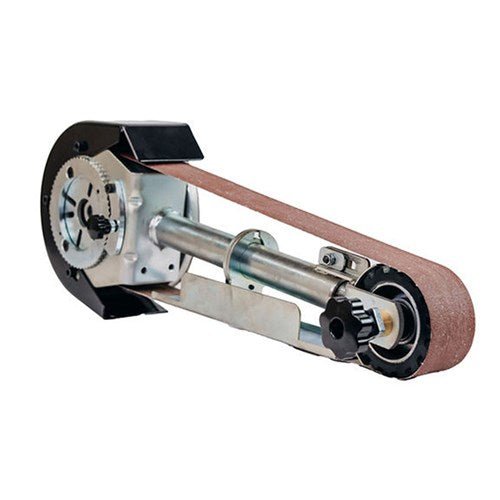

Abbott & Ashby AA482 Linishing Attachment, 1,220 x 50mm (48 x 2") Belt

The Abbott & Ashby AA482 is a linishing attachment with an extra long 1,220 x 50 mm (48 x 2") belt for larger work pieces. It is installed on the left or right side of most 150 mm (6") and 200 mm (8") bench grinders with a maximum shaft size of 16 mm (manufacturer-stated).

It is supplied with a 240 grit belt, a 178 mm (7") disc and an 89 mm (3 1/2") contact wheel, and has a catalogue weight of 6.5 kg. The belt is longer than the 915 mm belt on AA362.

Where this product is used

• Finishing jobs the catalogue names for its linishing attachments: tool sharpening, edge sanding, smoothing welds and polishing (manufacturer-stated).
• Materials the catalogue lists for its linishing attachments: wood, plastics, metals and ceramics, with a quick change of belts (manufacturer-stated).

Features

• Extra long 48" (1,220 mm) x 2" (50 mm) 240 grit belt for larger work pieces (manufacturer-stated)
• Left or right side installation on most 150 mm (6") and 200 mm (8") grinders with a shaft up to 16 mm (manufacturer-stated)
• Top platen for flat surface grinding, which can be moved out of the way for free strapping (manufacturer-stated)
• Working angle changes in 6 degree increments without disassembly, with 360 degree no tools rotation and a platen pivot (manufacturer-stated)
• Belt tracking adjustment knob and lock at the front of the unit (manufacturer-stated)
• Fast belt changes with a self-locking push in push out arm (manufacturer-stated)
• Catalogue warranty badge for this attachment: 3 years (manufacturer-stated)

Key specifications

Selecting the right option

Choose AA482 over AA362 linishing attachment (915 x 50mm belt) when you want the longer 1,220 mm belt for larger work pieces; otherwise the two attachments have the same disc and contact wheel sizes. AA482 weighs 6.5 kg against 5.4 kg for AA362, so check that your grinder and bench can carry it. The 915 mm belts listed for the AA362 are a different length from the 1,220 mm belt on AA482. The mitre table suits this attachment.

Related products

Accessories: AAMT mitre table, self-adhesive discs, hook and loop discs, hook and loop backing pad and belt cleaning stick. Also see: AA362 linishing attachment (915 x 50mm belt), AA362W6 and AA362W8 industrial grinders with AA362 linisher and AA362W8-1100 professional grinder with AA362 linisher.
