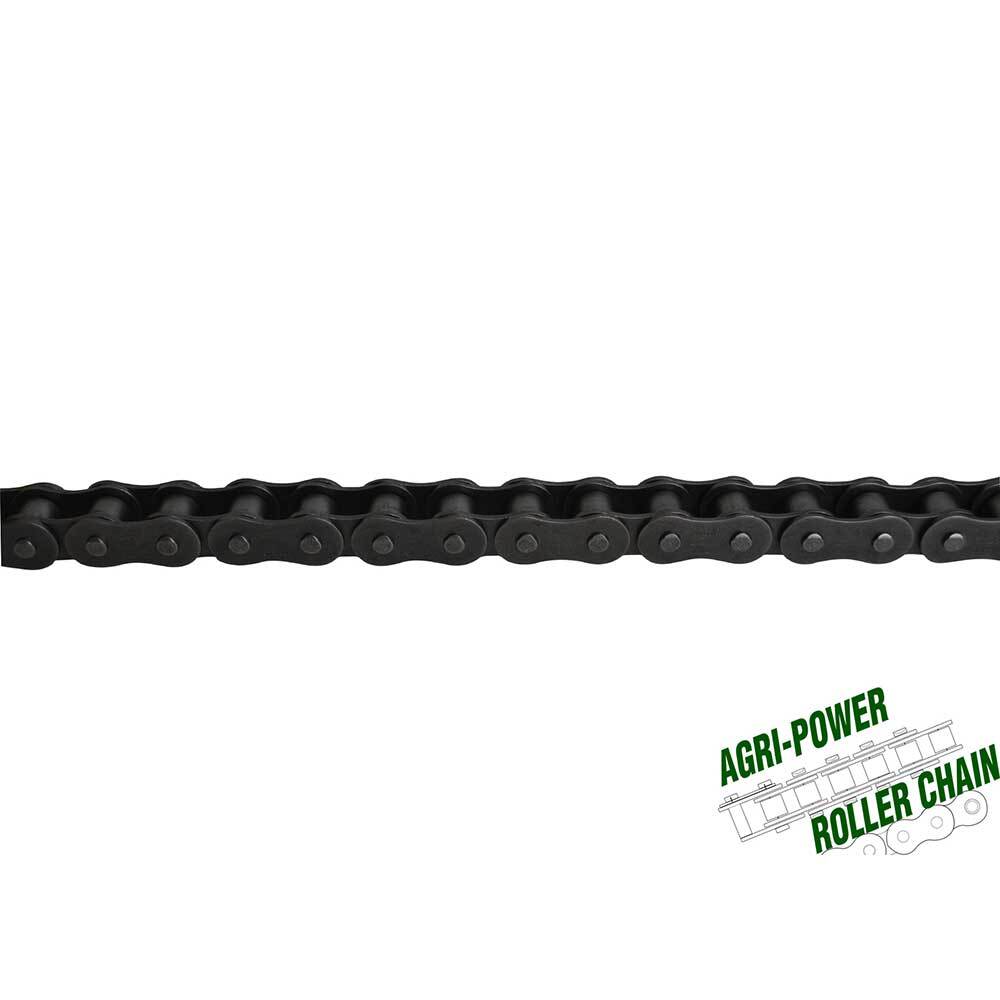

Agri-Power 50H-1 ASA Heavy Quad Rivet Roller Chain
Available
Agri-Power ASA (ANSI) heavy quad rivet roller chain in chain numbers 50H to 80H, with a pitch from 5/8 in to 1 in (15.875 to 25.4 mm). The pins are quad riveted, and the chain is supplied in a 10 ft box with one connecting link.
The dimensions of each chain number, including roller diameter, width between inner plates, pin and plate sizes, tensile strength and weight per metre, are in the size table on this page.
Where this product is used
- Agricultural machinery drives and elevators
- Conveyors and material handling equipment
- Industrial power transmission drives
- Packaging and general machinery
- Workshop and maintenance replacement chain
Features
- Quad rivet pin construction
- Heat-treated alloy steel
- ASA (ANSI) heavy series, chain numbers 50H to 80H
- Simplex strand
- Pitch from 5/8 in to 1 in
- Supplied in a 10 ft box with one connecting link
- Dimensions, tensile strength and weight listed for every chain number
Key specifications
| Specification | Detail |
|---|---|
| Brand | Agri-Power |
| Chain series | ASA (ANSI) heavy |
| Strand | Simplex |
| Pin construction | Quad rivet |
| Material | Heat-treated alloy steel |
| Chain numbers | 50H, 60H, 80H |
| Pitch | 5/8 in to 1 in (15.875 to 25.4 mm) |
| Pack | 10 ft box with one connecting link |

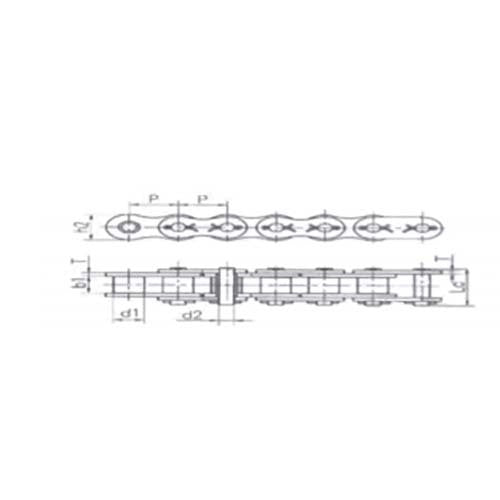

Chain dimensions
| Chain no. | Pitch | Roller dia. max (mm) | Inner width min (mm) | Pin dia. max (mm) | Plate depth max (mm) | Plate thickness max (mm) | Ultimate tensile (kN) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|
| 50H | 5/8 in (15.875 mm) | 10.16 | 9.4 | 5.08 | 15.09 | 2.42 | 22.2 | 1.25 |
| 60H | 3/4 in (19.05 mm) | 11.91 | 12.57 | 5.94 | 18 | 3.25 | 31.8 | 1.87 |
| 80H | 1 in (25.4 mm) | 15.88 | 15.75 | 7.92 | 24 | 4 | 56.7 | 3.1 |
Selecting the right option
This listing is the heavy series in ASA chain numbers 50H, 60H and 80H, which are the 50, 60 and 80 pitches (5/8, 3/4 and 1 in) with the plate thickness and pin length shown in the size table. Match the chain number, including the H, to the existing chain and sprockets.
Chain made to the ASA series and chain made to the BS series are not the same size, even where the pitch is the same, so do not mix them on one drive.
Contact AIMS with the existing chain number or sprocket details if you need help matching.
Fitting and use
Fit the chain to matching sprockets, keep it lubricated, and replace worn sprockets with the chain, as a new chain on worn sprockets wears quickly. Use the connecting link supplied to join the chain to length.
Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.
Related products
Other Agri-Power roller chain: Agri-Power ASA quad rivet simplex roller chain and Agri-Power BS quad rivet simplex roller chain.
