Agri-Power ASA Quad Rivet Simplex Roller Chain
Available
Agri-Power ASA (ANSI) quad rivet roller chain in chain numbers 40 to 80, with a pitch from 1/2" to 1" (12.7 to 25.4mm). The pins are quad riveted, and the chain is supplied in a 10 ft box with one connecting link.
Where this product is used
- Agricultural machinery drives and elevators
- Conveyors and material handling equipment
- Industrial power transmission drives
- Packaging and general machinery
- Workshop and maintenance replacement chain
Features
- Quad rivet pin construction
- Heat-treated alloy steel
- ASA (ANSI) series, chain numbers 40 to 80
- Simplex strand
- Pitch from 1/2" to 1"
- Supplied in a 10 ft box with one connecting link
- Dimensions, tensile strength and weight for every chain number
Key specifications
| Specification | Detail |
|---|---|
| Brand | Agri-Power |
| Product type | Roller Chain |
| Chain series | ASA (ANSI) |
| Strand | Simplex |
| Pin construction | Quad rivet |
| Material | Heat-treated alloy steel |
| Chain numbers | 40, 50, 60, 80 |
| Pitch | 1/2" to 1" (12.7 to 25.4mm) |
| Pack | 10 ft box with one connecting link |
Fitting and use
Fit the chain to matching sprockets, keep it lubricated, and replace worn sprockets with the chain, as a new chain on worn sprockets wears quickly. Use the connecting link supplied to join the chain to length.
Choosing the right option
ASA chain numbers are the pitch in eighths of an inch, so chain number 40 is 4/8" (1/2") pitch and chain number 80 is 8/8" (1") pitch. Match the chain number to the existing chain and sprockets.
Chain made to the ASA series and chain made to the BS series are not the same size, even where the pitch is the same, so do not mix them on one drive. Check the chain number stamped on the existing chain or sprocket before ordering.
See also: Agri-Power BS quad rivet simplex roller chain, Agri-Power ASA quad rivet heavy simplex roller chain.
| Option | Part number | SKU |
|---|---|---|
| 40 | A0158646 | |
| 50 | A0158647 | |
| 60 | A0158648 | |
| 80 | A0158649 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

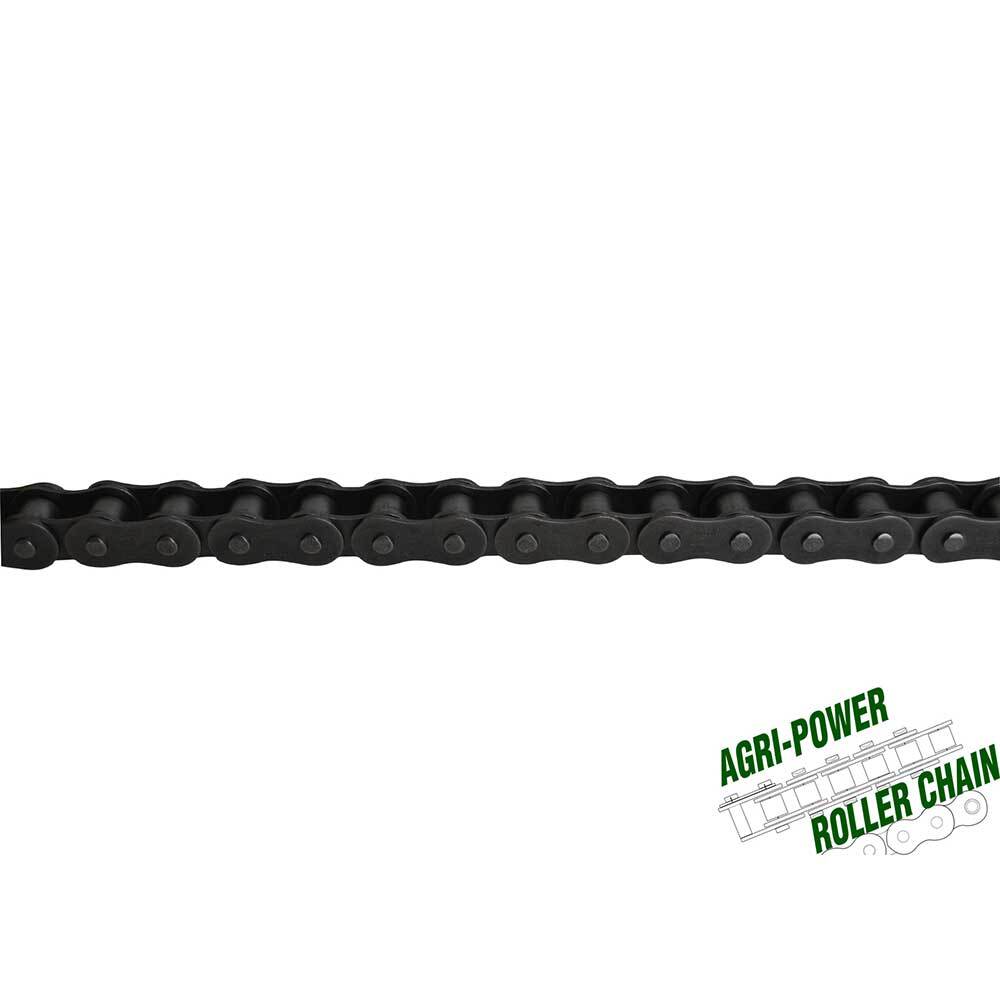

Agri-Power ASA Roller Chain Quad Rivet Simplex Strand: 40
SKU: A0158646 | Model: 40-1/AGRI-POWER
Agri-Power 40-1 ASA quad rivet simplex roller chain, 1/2" pitch. 10 ft box with connecting link.
