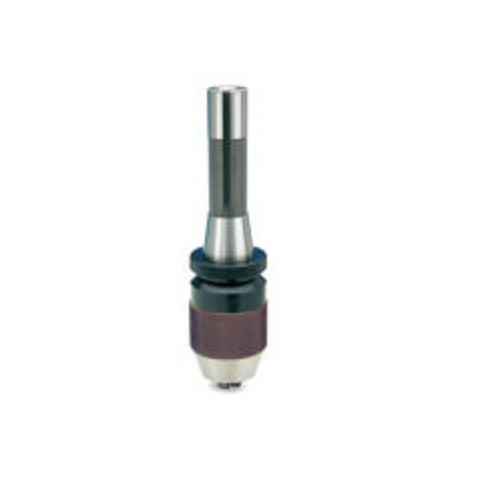

Albrecht SBFP130-MT3 Keyless Drill Chuck, 1-13mm, MT3 Shank

Albrecht SBFP chucks are SBF-Plus super drill chucks, keyless chucks with an integral shank in MT2, MT3, MT4 or R8, in 1-13mm and 3-16mm capacity (manufacturer-stated).

Albrecht says the integral shank is more compact than a combined drill chuck and arbor and removes the possibility of the chuck slipping on its arbor (manufacturer-stated). Each part number below gives its own capacity, shank, lengths L1 and L2 and sleeve diameter D.

Where this product is used

• Holding drills in a keyless chuck with an integral MT2, MT3, MT4 or R8 shank

Features

• Integral shank, more compact than a combined drill chuck and arbor (manufacturer-stated)
• Integral shank eliminates the possibility of the chuck slipping on its arbor (manufacturer-stated)
• Greater accuracy, greater rigidity and a larger work envelope than a combined chuck and arbor (manufacturer-stated)
• Self-tightening feature grips the drill tighter as more torque is applied (manufacturer-stated)
• Can be opened easily by hand even when high torque is applied (manufacturer-stated)
• Parts exposed to wear are hardened and ground (manufacturer-stated)

Common specifications

Key specifications

Capacity, shank, lengths L1 and L2 and sleeve diameter D as printed by Albrecht for each part number.

Selecting the right option

Choose the capacity first: the SBFP130 chucks are 1-13mm with a 50mm sleeve and the SBFP160 chucks are 3-16mm with a 57mm sleeve. Then pick the shank that fits your machine: MT2, MT3 or R8 for 1-13mm, and MT3, MT4 or R8 for 3-16mm. For a chuck with a separate Morse taper arbor see the CKS Morse taper keyless chuck.
