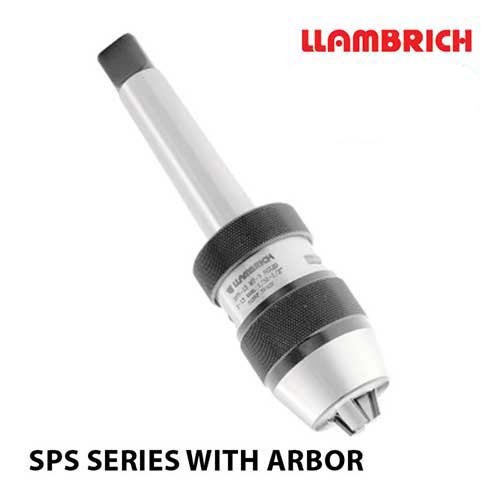

Llambrich SPS-13-MT3 Super Precision Keyless Drill Chuck, 1-13mm, 3 Morse Taper

Llambrich SPS-13-MT3 is an SPS-Solid super precision keyless drill chuck with an integrated 3 Morse taper shank and a 1-13mm capacity (manufacturer-stated).

Llambrich states a maximum total integrated run-out of 0.04mm. The arbor is integrated in the internal socket of the chuck, so the taper cannot slip from the drill chuck (manufacturer-stated).

Where this product is used

• Drilling on high-speed machines with instant spindle stop, where the chuck resists tool loosening (manufacturer-stated)

Features

• Maximum total integrated run-out of 0.04mm (manufacturer-stated)
• Arbor integrated in the internal socket of the chuck, in a compact design (manufacturer-stated)
• No possibility of the taper slipping from the drill chuck (manufacturer-stated)
• Greater rigidity and precision (manufacturer-stated)
• Self-tightening feature increases the gripping force in proportion to the torque, for right-hand rotation applications only (manufacturer-stated)
• Milled wrench flats and a spanner wrench for supplementary gripping torque; light tightening gives up to 3 times the gripping torque of hand tightening (manufacturer-stated)
• Resistance to tool loosening on high-speed machines with instant spindle stop (manufacturer-stated)
• Manufactured in Spain (manufacturer-stated)

Key specifications

Selecting the right option

This chuck has the Morse taper built in. If you would rather have a separate arbor, the CKS Morse taper keyless chuck comes with its arbor, which is not integral mounted, in 1-13mm with a 3 Morse taper. For other integral-shank chucks see the Albrecht SBFP.
