Alemlube 100L,20L,10L Waste Oil Drainer/Evacuator 372000

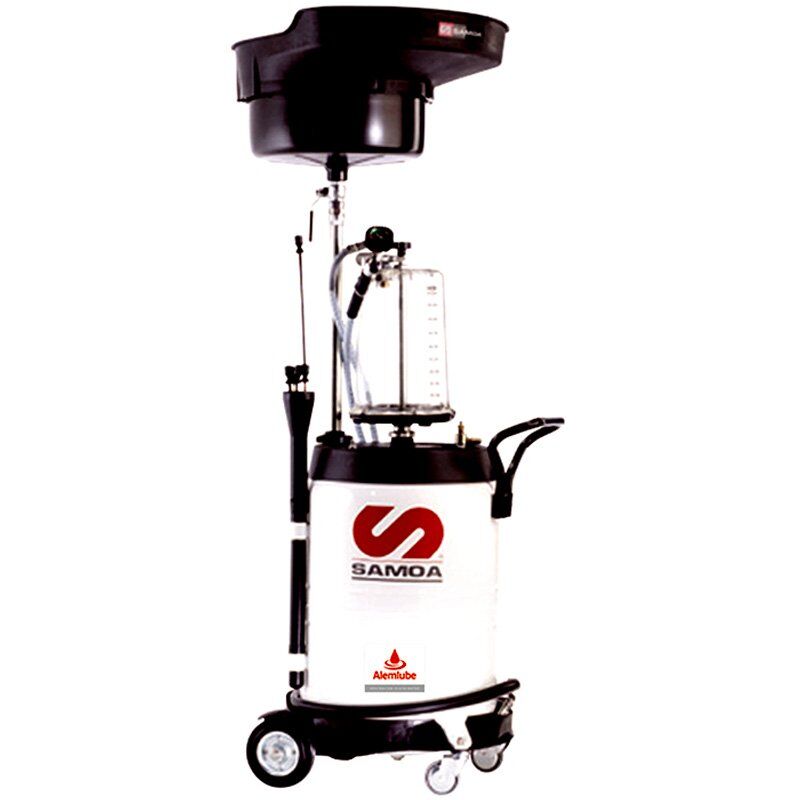

The Samoa 100L Mobile Waste Oil Drainer & Extractor is a three-in-one unit combining a 100L vacuum reservoir, a 20L height-adjustable gravity collection bowl with an anti-splash grid, and a 10L clear inspection chamber that lets the operator see and measure the extracted oil as it's drawn in.

An air-operated vacuum pump with no moving or wearing parts draws hot oil (up to 70-80°C) through a suction lance inserted into the dipstick tube at 1.5-2L per minute, and once the vacuum is built the unit can be disconnected from the air supply and used as a fully self-contained, mobile drainer. Discharge is via a tyre inflator pressurising the tank to up to 70psi (5 bar), with a safety valve to prevent over-pressurising.

Where this product is used

• Workshops extracting waste oil through the engine dipstick tube without removing the sump plug
• Mobile servicing where the unit needs to run untethered from the air line once charged
• Fleet and workshop environments needing gravity drain and suction extraction in one unit

Key specifications

• 100L reservoir tank capacity; 20L catchment bowl; 10L clear inspection chamber
• Air operated vacuum pump, no moving or wearing parts
• Suction time 1.5-2L/min (hot oil, 70-80°C, 6mm probe diameter)
• 2m suction hose; 2m drain hose
• Working pressure: vacuum 100-145psi (10 bar); discharge up to 70psi (5 bar)
• Fully mobile kit with pull handle & front swivel wheels
• 2 Year warranty
