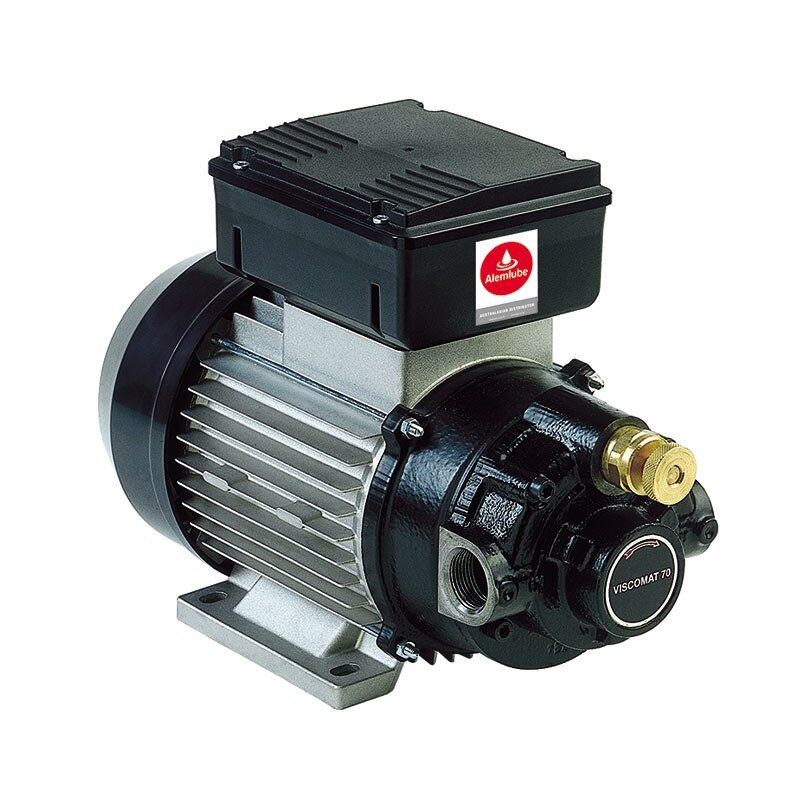

Alemlube 240V Oil Gear Pump 304100

The Alemlube 304100 is a 240V electric vane pump for bulk tank oil transfer, delivering continuous, standard free flow up to 9 L/min through 3/4" BSP(f) inlet and outlet ports.

Its sintered steel rotor with resin vanes handles hot oil up to 70°C, running a 750W, 1450rpm motor with an integrated bypass and a maximum pressure of 87psi (6 bar) -- the lower-flow member of the same Piusi vane pump family as the 25 L/min (334900) and 50 L/min (303100) models.

Where this product is used

• 240V bulk tank oil transfer where a lower, steady flow rate suits the job
• Continuous-duty oil transfer, including hot oil up to 70°C

Key specifications

• 240V, 750W, 1450rpm vane pump (not a gear pump); flow up to 9 L/min
• 3/4" BSP(f) inlet and outlet; sintered steel rotor with resin vanes
• Integrated bypass; maximum pressure 87psi (6 bar)
