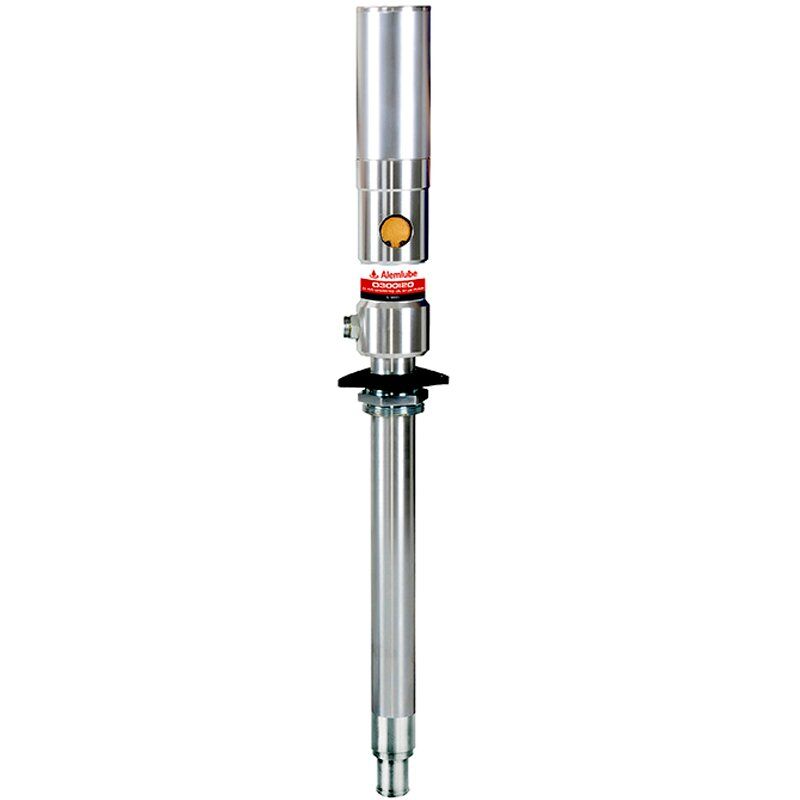

Alemlube Air Operated Oil Tank Pump - O300120

• EL Series air operated bulk tank oil transfer drum pump
• 3:1 ratio air powered drum motor
• Delivers light, medium & heavy oils over long distances.
• The EL Series O300120 is the ideal oil transfer kit for dispensing oil with a maximum viscosity of SAE130.
• Representing excellent value for money, the Alemlube EL Series O300120 gives you the opportunity to upgrade from standard hand operated stub drum pumps to a pneumatic solution.
• Delivering up to 20L/min with a 3:1 ratio pump, the O300120 is suitable to perform intermittent or seasonal work.
• The oil control valve with ergonomic grip is easy to operate and features a lock on device for your convenience. Smart design with fewer working parts effectively facilitates a lower cost of ownership.
• Manufactured with efficiency and reliability in mind, the O300120 3:1 Air-operated Stub Pump is well designed, affordable and is supported by readily available spare parts

Technical Details

Ratio
3:01
Air Inlet Pressure
30-150psi (2-10bar)
Max Fluid Pressure
450psi (30bar)
Air Consumption
3.6cfm @ 150psi
Max Free Flow Rate
20L/min
Tube Diameter
42mm
Suction Tube Length
270mm
Air Inlet Connection
1/4" quick plug
Oil Delivery Connection
Male 1/2"
Maximum Viscosity Oil Delivered
SAE 130
Temperature Oil Delivered
-10~50°C
Noise Level
82 dB

Features and Benefits

• EL Series air operated bulk tank oil transfer drum pump
• 3:1 ratio air powered drum motor
• Maximum operating pressure 450psi (30 bar)
• Maximum oil viscosity SAE130
• Suction tube length 270mm diameter 42mm
• Inlet filter protects against foreign particle contamination
• 2" bung adapter
• 1/2" BSP(f) oil outlet fitting
• 1/4" BSP(f) oil inlet connection
• Delivers light, medium & heavy oils over long distances
• Delivers up to 20L/min.
