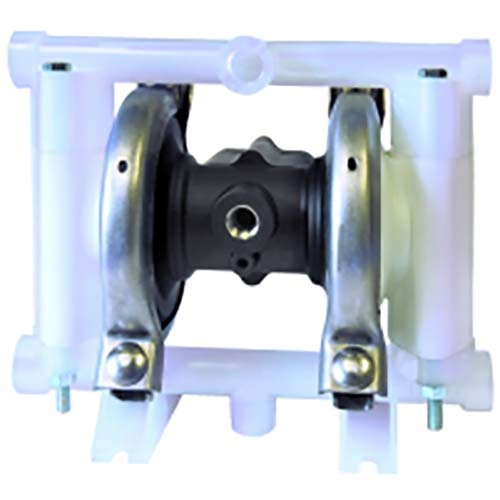

Alemlube 3/8" 34LPM Poly Diaphragm Pump PE-038

Product Features

• All-Flo (USA) made 1:1 ratio air operated diaphragm pump, 34LPM free flow
• "Max-Pass" valve allows larger solids to pass through without clogging
• Polypropylene body with Geolast diaphragms -- an all-round pump for diesel, oil and coolant (not suitable for waste oil)
• 1/4" NPTF air inlet, 3/8" NPTF fluid inlet/outlet
• Maximum suction lift of 5.2m
• Handles solids up to 6.35mm
• Compact and light at 1.7kg

Applications

• Diesel and fuel transfer from drums in workshops and on farm
• Coolant and antifreeze handling where larger particulate may be present
• General light industrial fluid transfer needing a compact, USA-made pump

• Flow rate: 34 L/min (free flow)
• Ratio: 1:1
• Body material: Polypropylene
• Diaphragm: Geolast
• Air inlet: 1/4" NPTF
• Fluid inlet/outlet: 3/8" NPTF
• Maximum suction: 5.2m
• Maximum solid size: 6.35mm
• Weight: 1.7kg
