Alemlube 12V Oil Pump - Gear, 10 LPM 309010

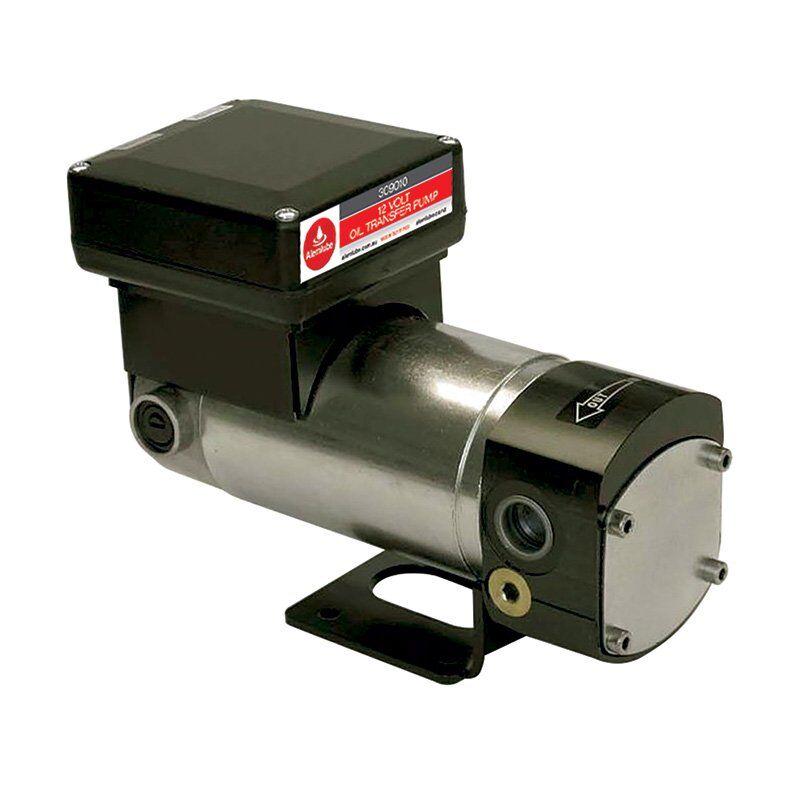

The Alemlube 309010 is a 12V electric vane pump for bulk tank oil transfer, delivering continuous free flow up to 10 L/min through 3/4" BSP(f) inlet and outlet ports.

Its sintered steel rotor with resin vanes handles hot oil up to 70°C, running a 750W, 1450rpm motor with an integrated bypass and a maximum pressure of 87psi (6 bar) -- the 12V version of the same Piusi vane pump range as the 240V 334900/303100/304100 models.

Where this product is used

• 12V bulk tank oil transfer where mains power isn't available
• Continuous-duty oil transfer, including hot oil up to 70°C

Key specifications

• 12V, 750W, 1450rpm vane pump (not a gear pump); flow up to 10 L/min
• 3/4" BSP(f) inlet and outlet; sintered steel rotor with resin vanes
• Integrated bypass; maximum pressure 87psi (6 bar)
