Alpha Combination Drill & Tap Set with Hex Shank Drills, Gold Series, 25 Piece
Available

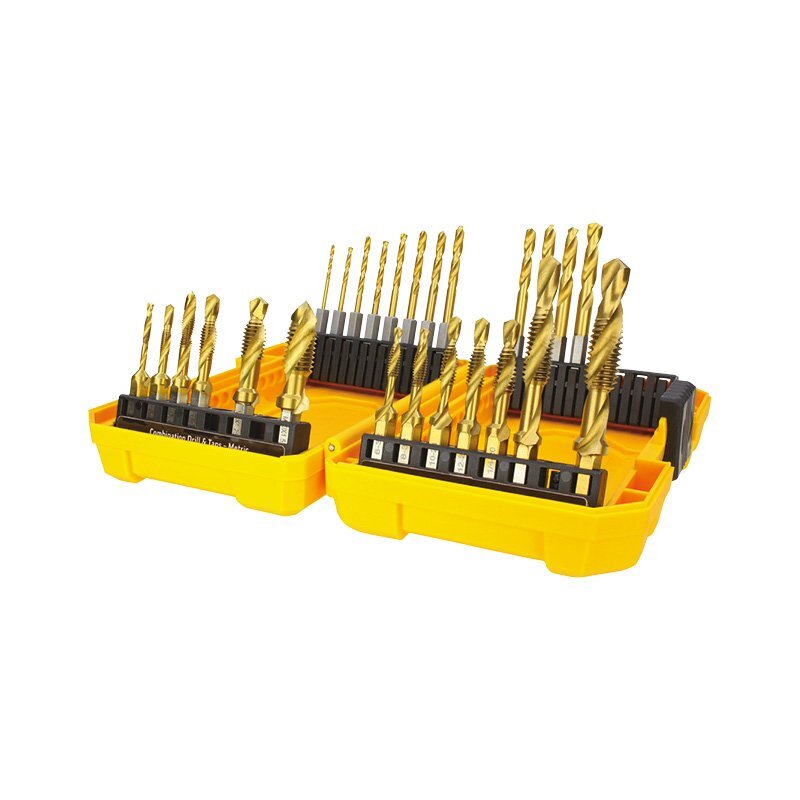

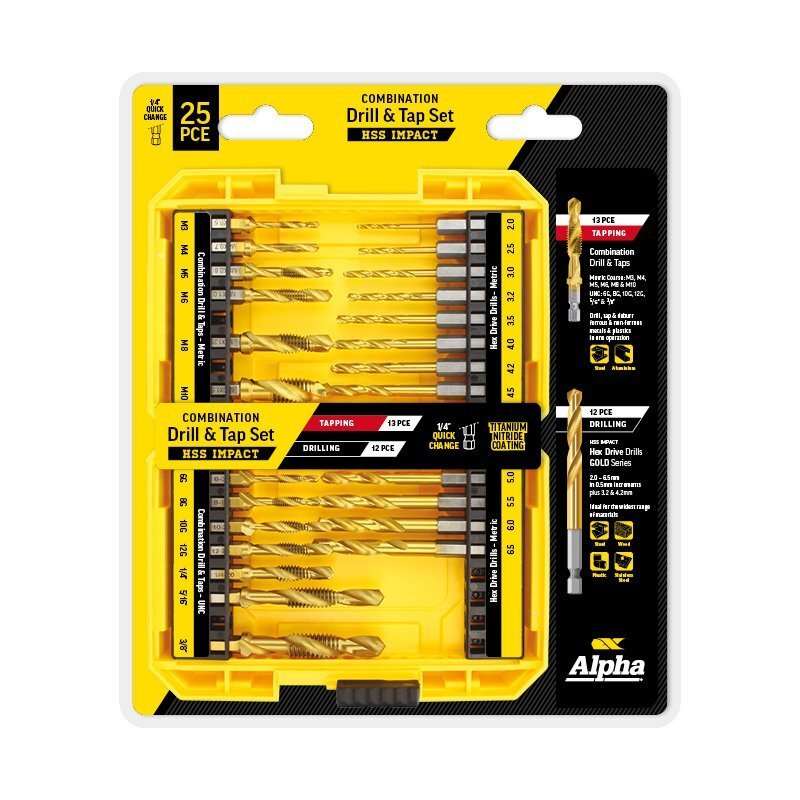

The Alpha CDT25PB is a 25 piece set of 13 combination drill and taps and 12 Gold Series hex shank drills in a plastic storage case, covering metric coarse M3 to M10 and UNC 6G to 12G and 1/4" to 3/8" threads.
All tools have a 1/4" quick change shank and suit cordless drills and impact drivers, with a titanium nitride coating, fully ground M2 HSS and a 135° split point. 500 to 600 RPM. Cutting fluid is recommended when tapping metals. The set is supplied carded.
Where this product is used
- Drilling and tapping threads in steel, aluminium and stainless steel up to 3.5mm thick
- Site work where both metric and UNC threaded holes are needed
- Maintenance and repair kits for threaded holes
- Drilling the pilot hole sizes from 2.0mm to 6.5mm
Features
- 13 combination drill and taps
- 12 Gold Series hex shank drills, 2.0mm to 6.5mm
- Metric coarse M3 to M10 and UNC 6G to 12G, 1/4" to 3/8"
- Titanium nitride coating and fully ground M2 HSS
- 135° split point
- Working thickness up to 3.5mm
- 1/4" quick change shank, suits cordless drills and impact drivers
Key specifications
| Specification | Detail |
|---|---|
| Brand | Alpha |
| Pieces | 25 |
| Combination drill and taps | 13 (metric coarse M3 to M10, UNC 6G to 12G and 1/4" to 3/8") |
| Hex shank drill bits | 12 (2.0mm to 6.5mm) |
| Material | M2 HSS with TiN coating |
| Point | 135° split point |
| Working thickness | Up to 3.5mm |
| Shank | 1/4" quick change |
| Recommended speed | 500 to 600 RPM |
| Case | Plastic storage case, carded |
Choosing the right option
Buy this set for the full range of thread sizes in one case. If you only need one thread size, see the metric or the UNC single combination drill and taps. Cutting fluid when tapping metals: see Alpha Liquid Gold cutting fluid.
See also the: Alpha Combination Drill & Tap, Metric Coarse M3 to M10, HSS TiN Coated, Alpha Combination Drill & Tap, UNC 6G to 3/8", HSS TiN Coated, Alpha Liquid Gold Cutting Fluid, Water Soluble, 250ml Squeeze Bottle.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Alpha Combination Drill & Tap Set with Hex Shank Drills, Gold Series, 25 Piece
SKU: A0139362 | Model: CDT25PB
Alpha 25 piece drill and tap set. Pieces: 25. Combination drill and taps: 13 (metric coarse M3 to M10, UNC 6G to 12G and 1/4" to 3/8").
