Alpha ball end hex power bits, H5 / 50
The price shown is for the handi pack.
Available
The Alpha ball end hex power bits are 1/4" power bits with a ball end hex point in H5 and H6, each in 50mm and 150mm overall length, sold as a handi pack of 10.
The range is organised by hex size and length: H5 and H6 each come in a 50mm length for normal reach and a 150mm length for deep or recessed fasteners. The point size is the hex socket the bit fits, so measure the fastener before choosing H5 or H6.
Where this product is used
- Driving hex socket screws at an angle to the work
- Reaching hex fasteners in confined or recessed positions with the 150mm length
- Assembly and maintenance work where a straight bit cannot be lined up
Features
- Ball end hex point in H5 and H6
- 50mm and 150mm overall lengths
- 7.2mm body diameter on all four codes
- 1/4" power bit format
- Handi pack of 10
Key specifications
| Specification | Detail |
|---|---|
| Brand | Alpha |
| Point type | Ball end hex |
| Hex sizes | H5, H6 |
| Overall lengths | 50mm, 150mm |
| Body diameter | 7.2mm |
| Format | 1/4" power bit |
| Pack | Handi pack of 10 |
Choosing the right option
Choose the hex size to match the socket (H5 or H6), then the length: 50mm for normal reach, 150mm when the fastener is deep or recessed. For straight hex bits see the ThunderMAX hex power bits.
See also the: Alpha ThunderMAX Hex Impact Power Bits, H4 to H6, 50mm and 75mm, Wrapped Pack of 5, Alpha H8 x 32mm Hex Insert Bit, 9.0mm Body, Pack of 10.
| Model | Hex size | Overall length | Body diameter | Pack |
|---|---|---|---|---|

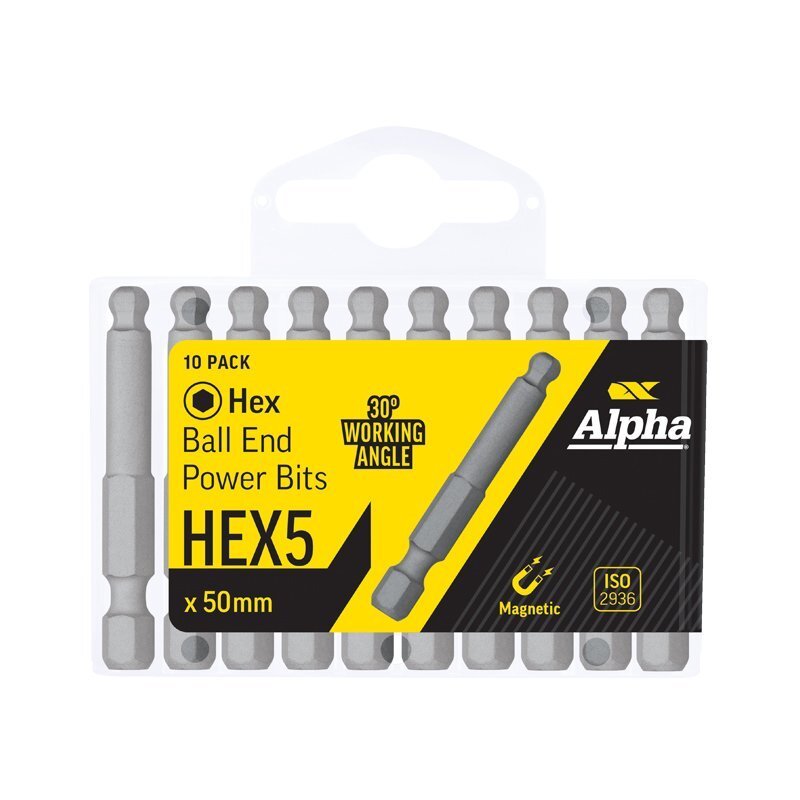

| HEX5BE50H | H5 | 50mm | 7.2mm | Handi pack of 10 |
| HEX5BE150H | H5 | 150mm | 7.2mm | Handi pack of 10 |

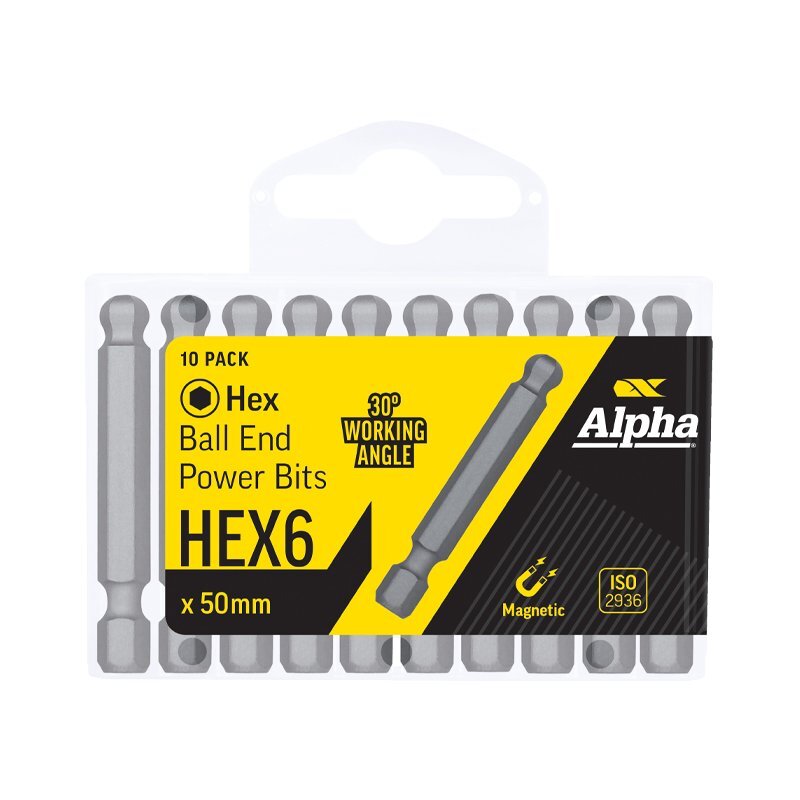

| HEX6BE50H | H6 | 50mm | 7.2mm | Handi pack of 10 |

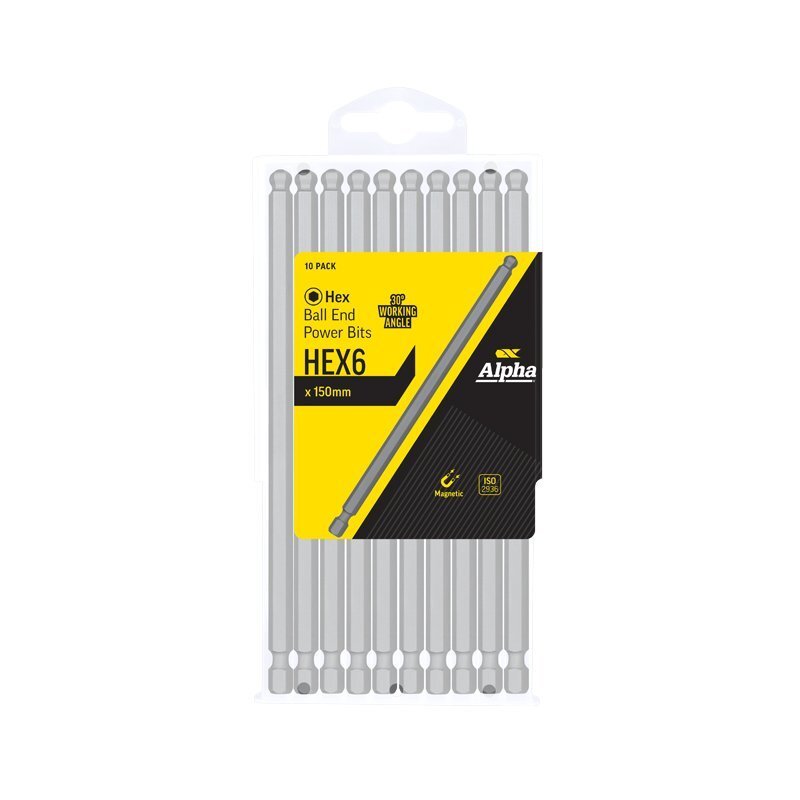

| HEX6BE150H | H6 | 150mm | 7.2mm | Handi pack of 10 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Alpha Ball End Hex Power Bits, H5 and H6, 50mm and 150mm, Handi Pack of 10: H5 / 50
SKU: A0146739 | Model: HEX5BE50H
Alpha HEX5BE50H: H5 x 50mm ball end hex power bit, handi pack of 10. Ball end hex point, 7.2mm body diameter.
