***Price per 30cm. Order in multiples of 30cm. For example, if you order 3 units, you will receive a 90cm length.***

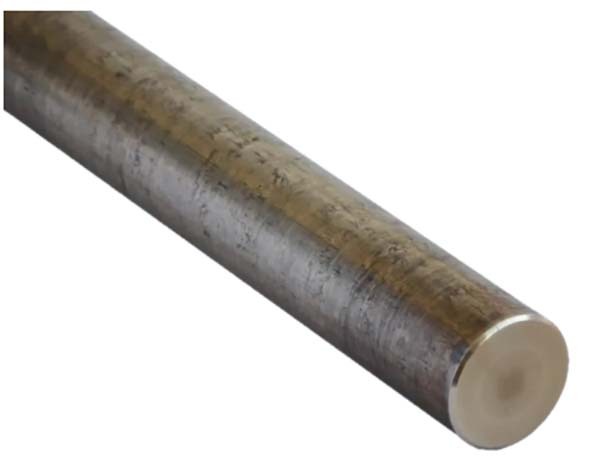

Aluminium Bronze Solid Bar 954 Imperial

• Alloy 954 is a high strength aluminium bronze that is widely used in heavy-duty applications such as forestry, mining, construction & marine.
• Very hard material that has excellent strength and wears resistance, yet still retains good machining properties.
• Alloy 954 also has good resistance to impact loading, but it should be noted that proper lubrication is necessary to prevent metal to metal contact. Inadequate lubrication is likely to cause scoring or ‘galling’, and consequent damage to the bronze component and/or other moving parts.
• General corrosion resistance is good but de-luminification may occur under some circumstances.
• 954 Aluminium Bronze is manufactured using finely controlled continuous or centrifugal casting techniques to ensure that hardness and strength is superior to sand-casting methods. This also means that the material has a fine grain structure and is free from porosity.

Element Symbol Range % Nominal % Aluminium Al 10.0-11.5 10.5 Iron Fe 3.0-5.0 4.0 Nickel Ni 1.5 maximum 0.5 maximum Manganese Mn 0.5 maximum   Copper Cu Balance

Physical Properties

Material Unit Aluminium Bronze 954 Tensile Strength psi 85000 Yield Strength psi 32000 Elongation Min % 12% Hardness BHN 170

Common Applications

• Bearing Segments & Bushings
• Construction Equipment Parts
• Forestry Equipment Parts
• Gears, incl Heavily Loaded Worm Gears
• High-Strength Clamps
• Landing Gear Parts
• Marine hardware
• Mining Equipment Parts
• Pressure Blocks
• Pump Parts
• Valves, Bodies & Guides
• Worm Gears

Chemical Composition

Key Features

• High Strength
• Excellent wear resistance
• Good Machining qualities
• Reasonable corrosion resistance
• Good impact resistance
