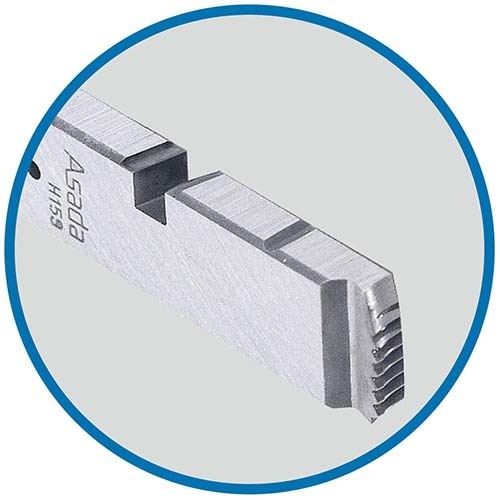

Asada SD89049 Dies Alloy 1 1/2-2" BSPT
Available
Asada alloy BSPT threading dies, supplied by size. They are made from special pre heat-treated steel for long life and easy threading.
The life of the dies is greatly affected by the quality of cutting oil used, so Asada Threading Oil is strongly recommended. Alloy dies are for general purpose threading, such as black or galvanised pipe and rod.
Where this product is used
- General purpose threading, such as black or galvanised pipe and rod.
Features
- Made from special pre heat-treated steel for long life and easy threading
- Alloy: for general purpose threading, such as black or galvanised pipe and rod
- 6 sizes available: 1/4-3/8", 1/2-3/4", 1-2", 1 1/2-2", 2-3" and 3 1/2-4"
- Asada Threading Oil strongly recommended, as cutting oil quality greatly affects die life
Key specifications
| Model | Size (inch) | TPI (threads per inch) |
|---|---|---|
| SD89046 | 1/4 to 3/8 | 19 |
| SD89211 | 1/2 to 3/4 | 14 |
| SD89227 | 1 to 2 | 11 |
| SD89049 | 1 1/2 to 2 | 11 |
| SD89051 | 2 to 3 | 11 |
| SD89052 | 3 1/2 to 4 | 11 |
Selecting the right option
Choose the die by thread type (BSPT) and the size you thread. For stainless and high tensile steels choose HSS dies. Use Asada Threading Oil, Standard Grade or Asada Neat Threading Oil, High Grade to extend die life.
Related products
See also the Asada HSS BSPT dies. See the Asada pipe and bolt threading machines that use these dies.
