Asada SD89056 Dies HSS 1 1/2-2" BSPT
Available
Asada HSS BSPT threading dies, supplied by size. They are made from special pre heat-treated steel for long life and easy threading.
The life of the dies is greatly affected by the quality of cutting oil used, so Asada Threading Oil is strongly recommended. HSS dies are for threading stainless steels and high tensile steels.
Where this product is used
- Threading stainless steels and high tensile steels.
Features
- Made from special pre heat-treated steel for long life and easy threading
- HSS: for threading stainless steels and high tensile steels
- 5 sizes available: 1/4-3/8", 1/2-3/4", 1-2", 1 1/2-2" and 2-3"
- Asada Threading Oil strongly recommended, as cutting oil quality greatly affects die life
Key specifications
| Model | Size (inch) | TPI (threads per inch) |
|---|---|---|
| SD89053 | 1/4 to 3/8 | 19 |
| SD89203 | 1/2 to 3/4 | 14 |
| SD89248 | 1 to 2 | 11 |
| SD89056 | 1 1/2 to 2 | 11 |
| SD89142 | 2 to 3 | 11 |
Selecting the right option
Choose the die by thread type (BSPT) and the size you thread. For general purpose threading of black or galvanised pipe and rod choose alloy dies. Use Asada Threading Oil, Standard Grade or Asada Neat Threading Oil, High Grade to extend die life.
Related products
See also the Asada alloy BSPT dies. See the Asada pipe and bolt threading machines that use these dies.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
1 1/2 to 2
Model Number: SD89056
-
1 to 2
Model Number: SD89248
-

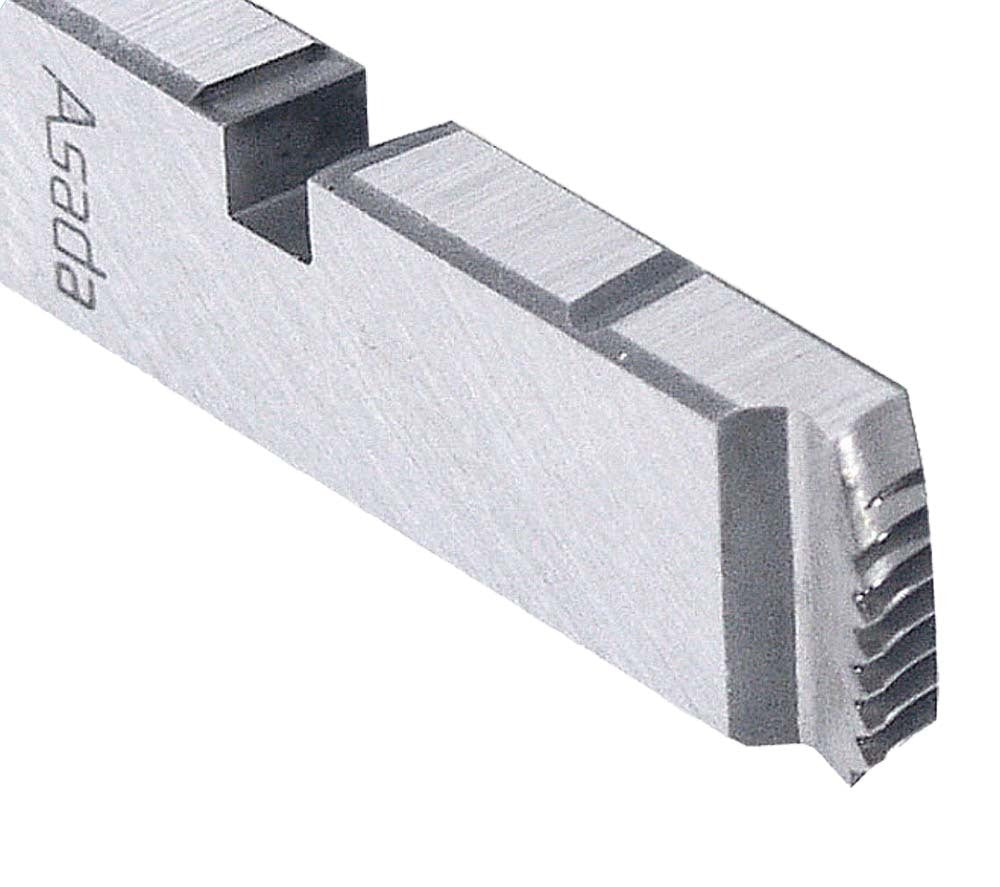

1/2 to 3/4
Model Number: SD89203
-
1/4 to 3/8
Model Number: SD89053
-

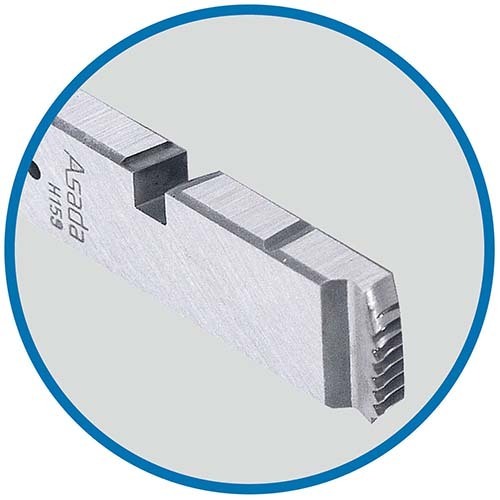

2 to 3
Model Number: SD89142
