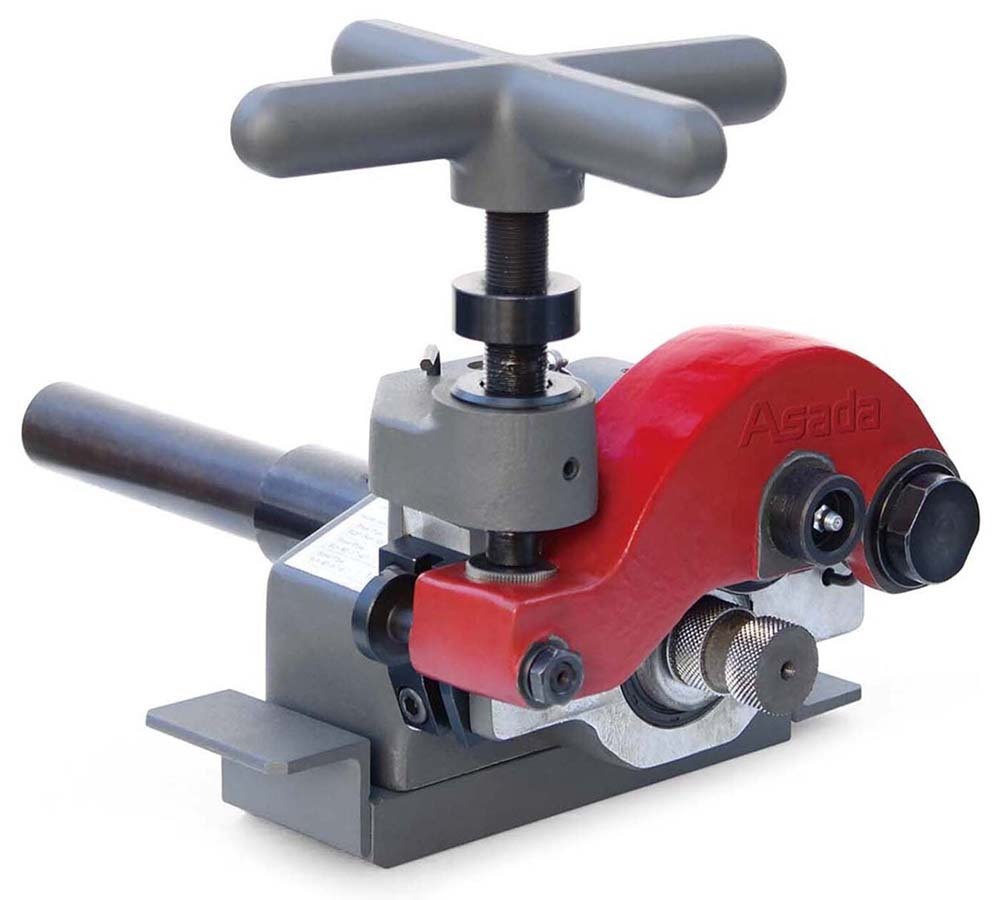

Asada GR641 Roll Groover 6" (150mm) N.B Sch. 40 Pipe Suits B50
Available
The Asada GR641 roll groover fits directly onto the Asada B50 threading machine and grooves pipe up to 6" (150 mm) N.B Sch. 40. The standard unit is supplied with a roller and shaft set to suit 2" to 6" pipe, and an optional roller shaft set for 1" to 1.1/2" pipe is available.
Roll grooved ends let pipe be joined with grooved couplings without welding or threading. Spare blades are available.
Where this product is used
- Roll grooving pipe ends for grooved couplings on fire sprinkler, mechanical services and plumbing pipework.
Features
- Fits directly onto the Asada B50 threading machine
- Grooves up to 6" (150 mm) N.B Sch. 40 pipe
- Standard roller/shaft set suits 2" to 6" pipe
- Optional roller shaft set for 1" to 1.1/2" pipe
- Spare blades available
Key specifications
| Specification | Detail |
|---|---|
| Model | GR641 |
| Grooving capacity | Up to 6" (150 mm) N.B Sch. 40 pipe |
| Standard roller/shaft set | 2" to 6" pipe |
| Optional roller shaft set | 1" to 1.1/2" pipe |
| Fits | Asada B50 threading machine directly |
Selecting the right option
Check the pipe size against the roller set supplied (2" to 6") and order the optional set for 1" to 1.1/2" pipe if needed. It fits the Asada B50; for the RG916 roll groover see the RGAR916 adapter and drivebar.
Related products
See the Asada B50 threading machine that the GR641 fits.
