Austlift Safety Pin Bow Crosby Shackle
Available
A Grade S bow shackle fitted with a rotating safety pin, designed for more permanent lifting connections to chain, wire rope and other rated fittings across marine, agricultural, mining and engineering work.
Where this product is used
- General rigging, dogging and lifting-gear assembly on site or in the workshop
Key specifications
| Product Type | Rigging Hardware |
| Finish | Hot Dipped Galvanised |
| Grade | Grade S |
| Standard(s) | AS 2741 |
Features
- Conforms to AS2741.
- Safety pin rotates under load, so it won't dislodge from vibration.
- Hot dipped galvanised finish.
- Batch numbered with WLL (tonnes), grade, size (mm) and supplier ID.
- Proof tested to 2x WLL, with a minimum break force of 6x WLL.
- Available in black on request.
- Test certificates available.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Austlift Blue Safety Pin Bow Crosby Shackle Grade S: 89
SKU: A0168815 | Model: 503589

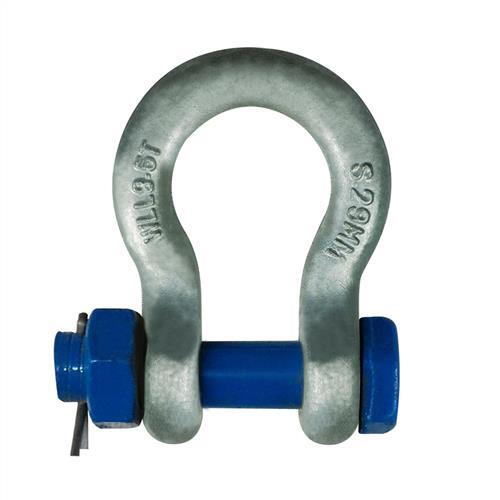

This is the 89mm size option of the Austlift Blue Safety Pin Bow Crosby Shackle Grade S. Key details for this option: grade S, finish Hot Dipped Galvanised.
***Safety Pin colour may change. Image is for illustration purposes only.***
Austlift Blue Safety Pin Bow Crosby Shackle Grade S
A Crosby shackle type G2130 not AS type.
Austlift blue safety pin bow shackles are most commonly used for lifting applications, providing more permanent connections to chain, wire rope, and other rated fittings within the marine, agricultural, mining, and engineering industries.
Suitable for equipment that may vibrate to ensure the pin will not dislodge during use.
The safety pin allows the pin to rotate during loading conditions.
Manufactured from Grade S material in bow configuration with safety pin hot-dipped galvanised.
Marked with working load limit in tonnes, quality grade, batch numbered, nominal size in milliMetre, and supplier identification.
Proof tested to 2 x working load limit, with a minimum break force of 6 x working load limit.
Suitable for lifting applications.
