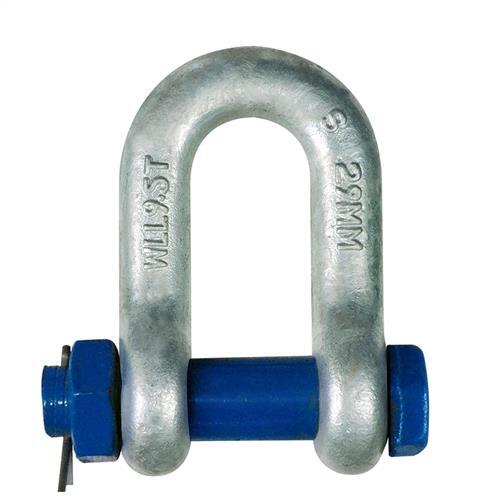

Austlift Safety Pin Dee Shackle Grade S 504516
Available
Austlift's Grade S dee shackle with rotating safety pin is used to make more permanent lifting connections to chain, wire rope and other rated fittings, in marine, agricultural, mining and engineering applications.
Where this product is used
- General rigging, dogging and lifting-gear assembly on site or in the workshop
Key specifications
| Product Type | Rigging Hardware |
| Finish | Hot Dipped Galvanised |
| Grade | Grade S |
| Standard(s) | AS 2741 |
Features
- Complies with AS2741.
- Safety pin rotates under load, resisting vibration-induced dislodgement.
- Hot dipped galvanised finish.
- Marked with WLL (tonnes), grade, batch number, size (mm) and supplier ID.
- Proof tested to 2x WLL; minimum break force 6x WLL.
- Test certificates available on request.
- Also available in black on request.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Austlift Blue Safety Pin Dee Shackle Grade S Galvanised: 16
SKU: A0168835 | Model: 504516
This is the 16mm size option of the Austlift Blue Safety Pin Dee Shackle Grade S Galvanised. Key details for this option: grade S, finish Hot Dipped Galvanised.
***Safety Pin colour may change. Image is for illustration purposes only.***
***Special order on 57mm.***
Austlift Blue Safety Pin D Shackle Grade S Galvanised
Austlift blue safety pin dee shackles are most commonly used for lifting applications, providing more permanent connections to chain, wire rope, and other rated fittings within the marine, agricultural, mining, and engineering industries. Suitable for equipment that may vibrate to ensure the pin will not dislodge during use.
The safety pin allows the pin to rotate during loading conditions.
Conforms to AS2741 manufactured from Grade S material in dee configuration with safety pin hot-dipped galvanised.
Marked with working load limit in T, quality grade, batch numbered, nominal size in mm, and supplier identification.
Proof tested to 2 x working load limit, with a minimum break force of 6 x working load limit.
Suitable for lifting applications.
