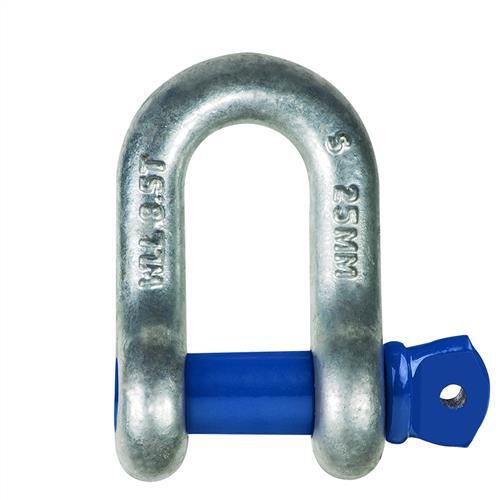

Austlift Screw Pin Dee Shackle Grade S
Available
Austlift's Grade S dee shackle with screw pin is commonly used for lifting connections to chain, wire rope and other rated fittings across marine, agricultural, mining and engineering industries.
Where this product is used
- General rigging, dogging and lifting-gear assembly on site or in the workshop
Key specifications
| Product Type | Rigging Hardware |
| Finish | Hot Dipped Galvanised |
| Grade | Grade S |
| Standard(s) | AS 2741 |
Features
- Conforms to AS2741.
- Screw pin, hot dipped galvanised finish.
- Marked with WLL (tonnes), quality grade, batch number, size (mm) and supplier ID.
- Test certificates available on request.
- Also available in black on request.
- Proof tested to 2x WLL; minimum break force 6x WLL.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Austlift Blue Screw Pin Dee Shackle Grade S Galvanised: 6
SKU: A0168817 | Model: 504006
This is the 6mm size option of the Austlift Blue Screw Pin Dee Shackle Grade S Galvanised. Key details for this option: grade S, finish Hot Dipped Galvanised.
***Screw Pin colour may change. Image is for illustration purposes only.***
***Special order on 6mm and 57mm.***
Austlift Blue Screw Pin D Shackle Grade S Galvanised
Austlift blue screw pin dee shackles are most commonly used for lifting applications, providing connections to chain, wire rope, and other rated fittings within the marine, agricultural, mining, and engineering industries.
Conforms to AS2741 manufactured from Grade S material in dee configuration with screw pin hot-dipped galvanised.
Marked with working load limit in tonnes, quality grade, batch numbered, nominal size in millimetre, and supplier identification.
Proof tested to 2 x working load limit, with a minimum break force of 6 x working load limit.
Suitable for lifting applications.
