Description +

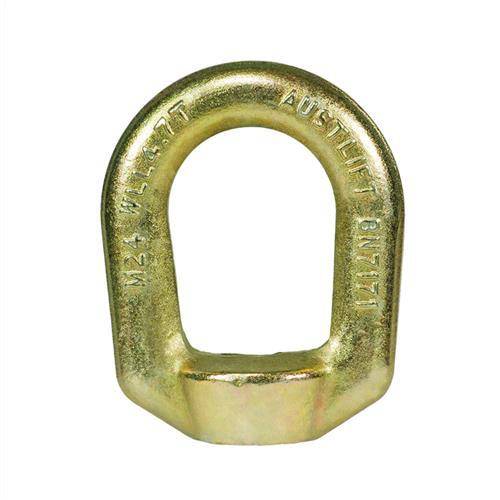

Austlift Bow Eye Nut Zinc Plated

Bow nut in accordance with requirements of ASME B30.26 used as a removable hanging eye nut where a rated male thread or bolt can be utilised commonly used in the mining industry.
Made from C15 carbon steel and tempered with zinc plated finish, manufactured with a bow shape, available in metric thread sizes only.
Marked with working load limit in tonne, nominal size in millimetre, batch number, and supplier identification.
Proof tested to 2 x working load limit and minimum breaking force of 5 x working load limit.

Size (mm)
WLL (T)
Weight (kg)
D (mm)
D2 (mm)
D3(mm)
H (mm)
H1 (mm)
W (mm)
W1 (mm)
M24
4.7
1.18
24
46
21
125
75
98
53

Specifications +

Specifications

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Austlift Bow Eye Nut Zinc Plated M24 x 4.7T WLL

SKU: A0168981

Type: Clevis Claw Hook

$19.03

Inc. GST

Buy It Now

Available

The Austlift Bow Eye Nut Zinc Plated M24 x 4.7T WLL by Austlift is a Clevis Claw Hook made from C15 carbon steel. It provides a working load limit of 4.7 T and is suitable for the mining industry as a removable hanging eye nut.
