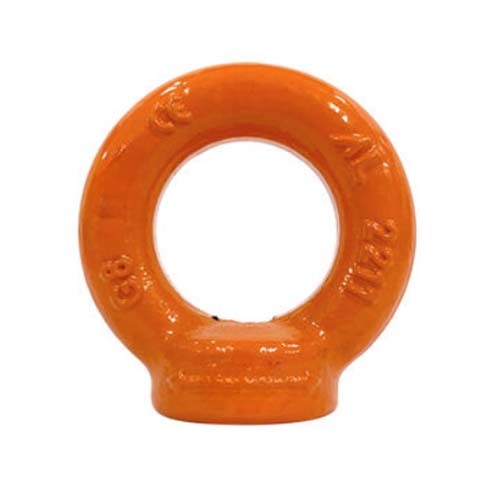

Austlift Eye Nut G80 6mm (M6) x 0.4T WLL
Regular price
$4.70
Sale price
$4.70
Regular price
Inc. GST
Available
End fittings match standard hook, eye, fork and chain terminations, allowing the screw or eye bolt to be substituted into existing rigging without modification. Suited to wire rope and rigging tensioning, lifting eye attachment points, tent and marquee tension assemblies, marine and yacht rigging, and crane and lifting accessory attachment. Drop-forged alloy steel construction and traceable WLL marking deliver the load performance lifting and structural applications demand. Built for repeat service across trade, marine and industrial rigging.
Where this product is used
- Wire rope and rigging tensioning.
- Lifting eye attachment points.
- Tent, marquee and structural tension assemblies.
- Crane and lifting accessory attachment.
Key specifications
| Product Type | Rigging Hardware |
| Standard(s) | DIN 582 |
Working Load Limit by size
| Size / Variant | WLL axial (t) | WLL transverse (t) |
|---|---|---|
| M6 | 0.4 | 0.15 |
| M8 | 0.8 | 0.4 |
| M10 | 1 | 0.4 |
| M12 | 2 | 0.75 |
| M16 | 4 | 1.5 |
| M20 | 6 | 2.3 |
| M24 | 8 | 3.2 |
| M27 | 10 | 4 |
| M30 | 12 | 4.5 |
| M36 | 16 | 7 |
| M42 | 24 | 9 |
| M48 | 32 | 12 |
Product Highlights
Resources
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
M6
Model Number: 602106
-
M8
Model Number: 602108
-
M10
Model Number: 602110
-
M12
Model Number: 602112
-
M16
Model Number: 602116
-
M20
Model Number: 602120
-
M24
Model Number: 602124
-
M27
Model Number: 602127
-
M30
Model Number: 602130
-
M36
Model Number: 602136
-
M42
Model Number: 602142
-
M48
Model Number: 602148
