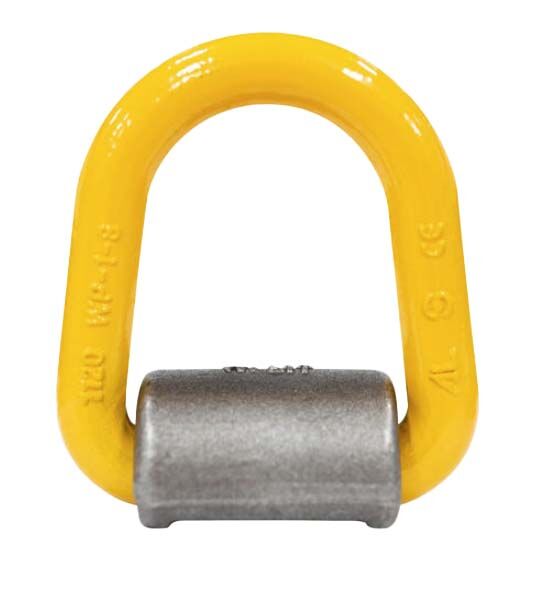

Austlift G80 Weld On Lifting Point WP
Available
This is the Austlift G80 Weld On Lifting Point WP Type.
End fittings match standard hook, eye, fork and chain terminations, allowing the screw or eye bolt to be substituted into existing rigging without modification. Suited to wire rope and rigging tensioning, lifting eye attachment points, tent and marquee tension assemblies, marine and yacht rigging, and crane and lifting accessory attachment. Drop-forged alloy steel construction and traceable WLL marking deliver the load performance lifting and structural applications demand. Built for repeat service across trade, marine and industrial rigging.
Where this product is used
- Wire rope and rigging tensioning.
- Lifting eye attachment points.
- Tent, marquee and structural tension assemblies.
- Crane and lifting accessory attachment.
Key specifications
| Product Type | Rigging Hardware |
| Standard(s) | AS/NZS 3776 |
Working Load Limit by size
| Size / Variant | WLL (t) |
|---|---|
| 1 | 1 |
| 3 | 3 |
| 5 | 5 |
| 8 | 8 |
Product details
| Model | 104001 |
|---|---|
| Dimension C1 (mm) | 95.7 |
| Dimension C (mm) | 35 |
| Dimension W (mm) | 50 |
| Dimension B (mm) | 55 |
| WLL (T) | 1 |
| Weight (kgs) | 0.55 |
| Dimension D (mm) | 14 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Austlift G80 Weld On Lifting Point WP Type: 1
SKU: A0209193 | Model: 104001
WLL (T) 1. Austlift G80 Weld On Lifting Point WP Type
Austlift WP type weld onlifting points can be welded on any carbon steel surface as a lifting point,or to be used as a fixed anchor point for spreader beam attachment.
Can also be used as an anchor point forload restraint applications.
Marked with chain size,batch number. grade, WLL, Austlift branded with manufacture quality mark.
Batchtested,test certificates available upon request.
Weldinginsuuct ons supplied with each unit.
