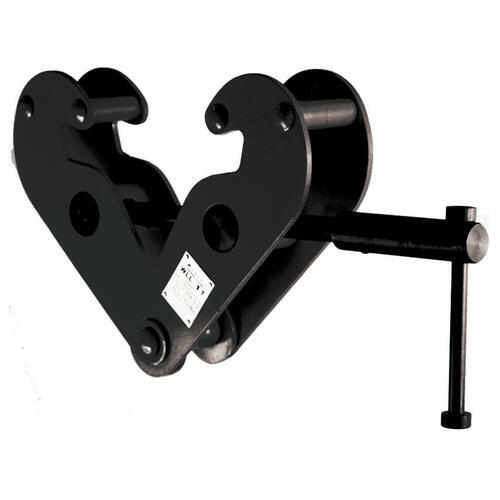

Austlift Girder Clamp Black 1Tonne, 75
Regular price
$125.32
Sale price
$125.32
Regular price
Inc. GST
Available
The Austlift Girder Clamp in black finish is a GC01-style clamp used to lift steel girders or narrow steel plate, or to create a clamped lifting point on a beam. It's for vertical lift only.
Where this product is used
- Overhead lifting, hoisting and load handling in industrial and construction settings
Key specifications
| Product Type | Lifting Equipment |
| Beam Size (mm) | 75 - 220 |
| Dimension E (mm) | 215 |
| A Max (mm) | 260 |
| B Min (mm) | 180 |
| Dimension H (mm) | 22 |
| B Max (mm) | 360 |
| F Min. (mm) | 102 |
| Dimension G (mm) | 25 |
| F Max (mm) | 155 |
Working Load Limit by size
| Size / Variant | WLL (t) |
|---|---|
| 1 | 1 |
| 2 | 2 |
Features
- Black colour finish.
- Vertical lift only.
- Individually serial numbered with test certificate.
- A simple, fast and portable way to attach a lifting point to a beam.
Product Highlights
Resources
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Austlift Girder Clamp Black: 1
SKU: A0168358 | Model: 132005B
WLL (T) 1. Austlift Girder Clamp
Austlift girder clamps are designed to lift steel girders and narrow steel plates or clamped on the girder to utilize as a lifting point.
Can use on material hardness up to 37RC.
Individually serial numbered with test certificates and user manual.
Can only be used on vertical lift.
