Austlift G100 Alloy Steel Master 170010
Available
The fitting provides a rated WLL termination for lifting chain, wire rope and sling assemblies in crane, mining and industrial rigging work. Suited to crane hook terminations, chain sling assembly and repair, lifting eye attachment points, mining and stevedoring rigging, and general load attachment. Bow and Dee shackles, self-locking hooks, master links and connecting links in the Austlift range deliver a coordinated chain component set. Built to perform safely under rated load through repeat trade service. This page covers the Austlift Master Link G100 Alloy Steel, available in 8 suit chain size 1 leg - 2 leg options: 8 / 6, 10 / 8, 13 / 10, 16 / 13, 20 / 16, 22 / 20, 26 / 22, 32 / 26.
Where this product is used
- Crane and lifting hook terminations.
- Chain sling assembly and repair.
- Rigging and load attachment points.
- Mining and stevedoring rigging.
Key specifications
| Product Type | Lifting Equipment |
| Standard(s) | AS 3776 |
Working Load Limit by size
| Size / Variant | WLL |
|---|---|
| 8 / 6 | 2.5 T |
| 10 / 8 | 4.3 T |
| 13 / 10 | 6.9 T |
| 16 / 13 | 11.6 T |
| 20 / 16 | 17.3 T |
| 22 / 20 | 27.7 T |
| 26 / 22 | 32.9 T |
| 32 / 26 | 45.8 T |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

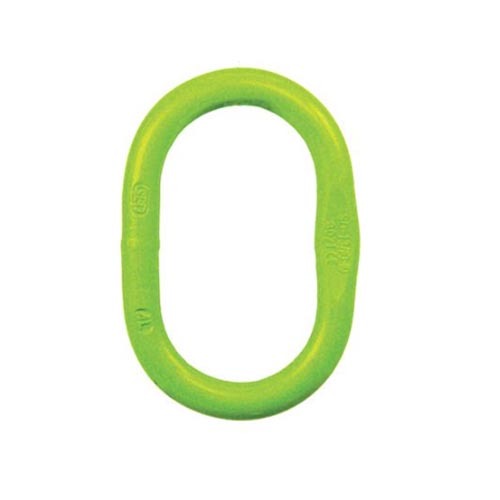

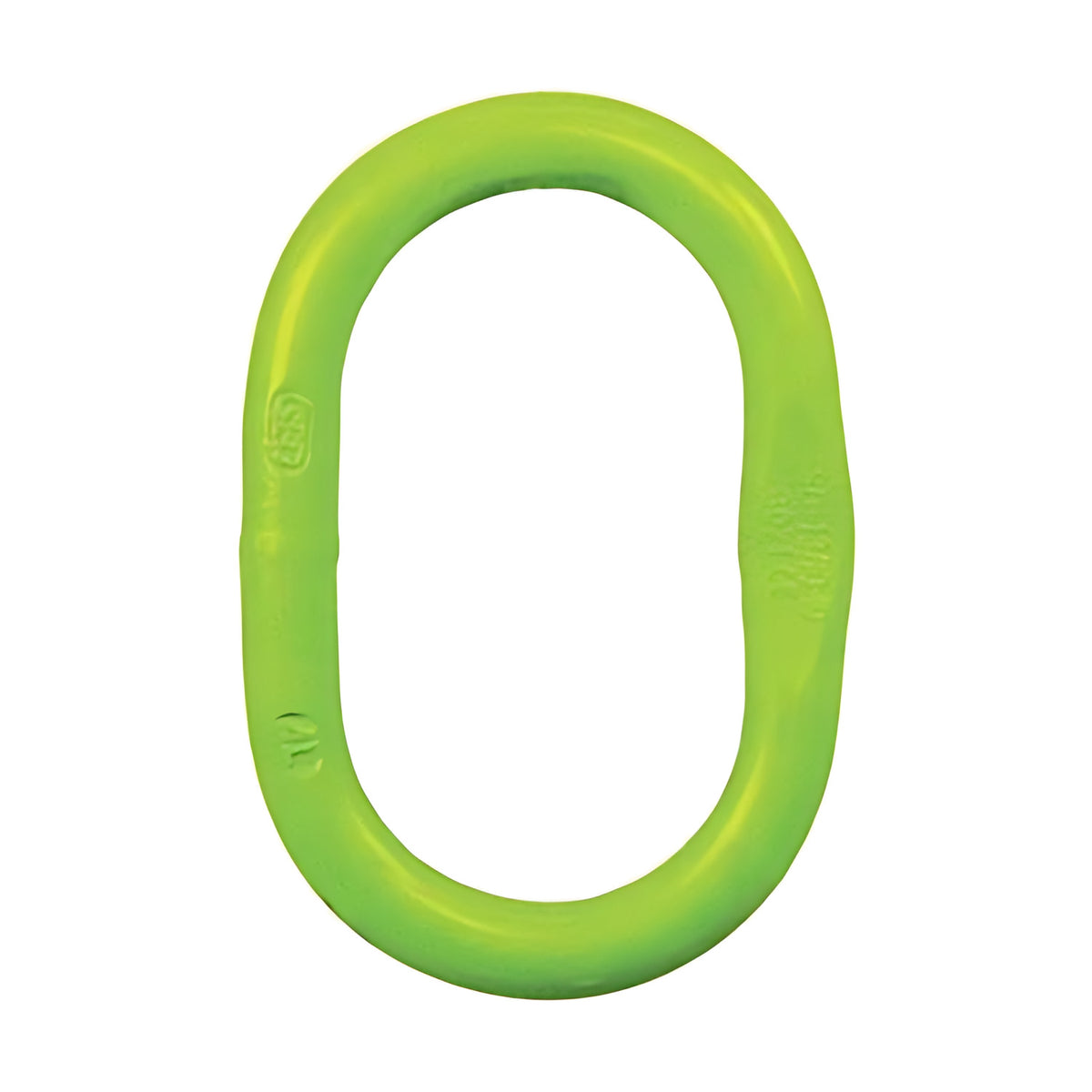

Austlift Master Link G100 Alloy Steel: 10 / 8
SKU: A0207720 | Model: 170010
Suit Chain Size 1 Leg - 2 Leg 10 / 8. Austlift Master Link G100 Alloy Steel
Master Link (Type SD, with flat).
Austlift SD type G100 head-rings are designed to cater for single leg, and double leg chain sling or wire rope sling applications.
Marked with single and double chain sizes, designation, grade, manufacture quality mark, and Austlift branded.
25% higher working load limit than G80 alloy chain.
Batch Tested. Test certificates available upon request.
Fatigue tested > 20,000 times.
