Austlift Snatch Block With Shackle Head
Available
The fitting provides a rated WLL termination for lifting chain, wire rope and sling assemblies in crane, mining and industrial rigging work. Suited to crane hook terminations, chain sling assembly and repair, lifting eye attachment points, mining and stevedoring rigging, and general load attachment. Bow and Dee shackles, self-locking hooks, master links and connecting links in the Austlift range deliver a coordinated chain component set. Built to perform safely under rated load through repeat trade service. This page covers the Austlift Snatch Block With Shackle Head, available in 9 sheave diameter (mm) options: 75, 115, 152, 203, 254, 305, 355, 510 and 1 more.
Where this product is used
- Wire rope and chain direction change in crane rigging assemblies.
- Mechanical advantage rigging using snatch blocks for load movement.
- Multi-purchase rigging assembly for heavy load movement.
- Mine site vehicle and equipment recovery using snatch blocks.
- Winch recovery mechanical advantage block rigging.
- Underground and surface mine rigging direction-change blocks.
Key specifications
| Product Type | Lifting Equipment |
| Standard(s) | AS/NZS 2089 |
Working Load Limit by size
| Size / Variant | WLL (t) |
|---|---|
| 75 | 2 |
| 115 | 4 |
| 152 | 4 |
| 152 | 6 |
| 203 | 8 |
| 254 | 10 |
| 305 | 12 |
| 305 | 15 |
| 355 | 22 |
| 510 | 30 |
| 610 | 50 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

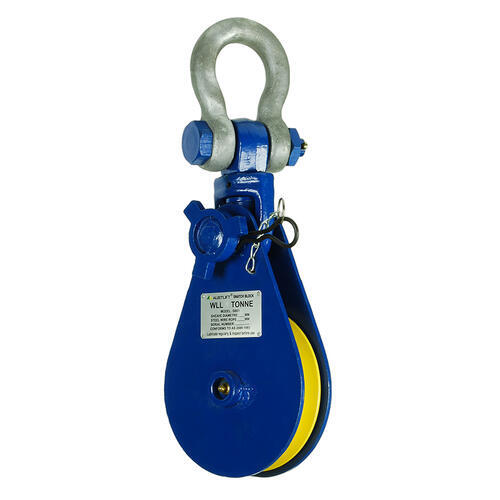

Austlift Snatch Block With Shackle Head: 75 / 2
SKU: A0168360 | Model: 140102
Sheave Diameter (mm) 75, WLL (T) 2. Austlift Snatch Block With Shackle Head
Austlift manually operated snatch blocks are popular in mining, construction, off shore rigging and heavy duty lifting applications. Complies with AS/NZS 2089.
Made from hi-tensile steel body and cast steel sheave.

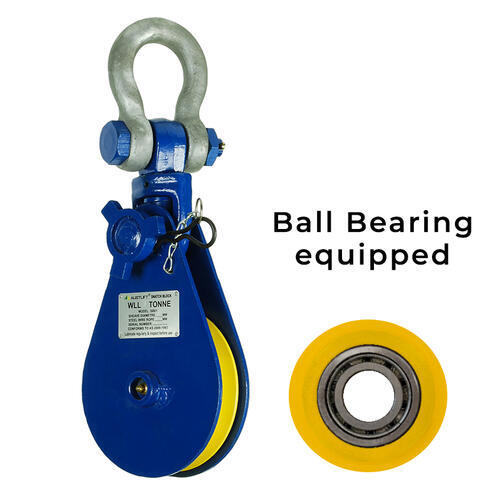

Grease nipples fitted with roller bearings (2-50T) and brass bush bearings (2T).
Blocks come with swivel bow shackle.
Drop forged, heat treated swivel shackle.
