Austlift 10mm (3/8") x 152mm Turnbuckle Jaw/Jaw Grade P - 0.54T WLL

Austlift 12mm (1/2") x 152mm Turnbuckle Jaw/Jaw Grade P - 1T WLL

Austlift 16mm (5/8") x 229mm Turnbuckle Jaw/Jaw Grade P - 1.59T WLL

Austlift 16mm (5/8") x 200mm Turnbuckle Jaw/Jaw Grade P - 1.59T WLL

Austlift 20mm (3/4") x 305mm Turnbuckle Jaw/Jaw Grade P - 2.36T WLL

Austlift 22mm (7/8") x 375mm Turnbuckle Jaw/Jaw Grade P - 3.27T WLL

Austlift 25mm (1") x 305mm Turnbuckle Jaw/Jaw Grade P - 4.54T WLL

Austlift 32mm (1-1/4") x 305mm Turnbuckle Jaw/Jaw Grade P - 6.89T WLL

Austlift 38mm (1-1/2") x 305mm Turnbuckle Jaw/Jaw Grade P - 9.71T WLL

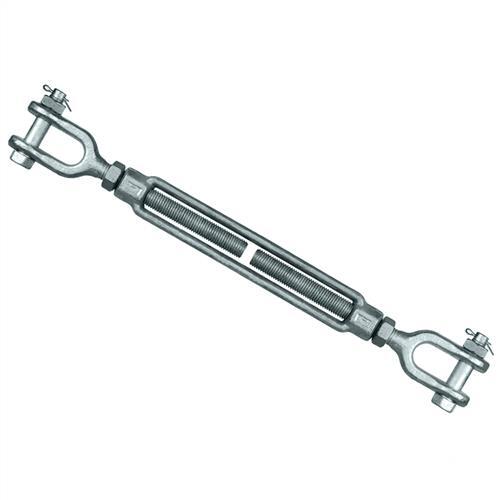

Austlift 45mm (1-3/4") x 457mm Turnbuckle Jaw/Jaw Grade P - 12.7T WLL

Austlift 51mm (2") x 610mm Turnbuckle Jaw/Jaw Grade P - 16.8T WLL

Austlift 64mm (2-1/2") x 610mm Turnbuckle Jaw/Jaw Grade P - 27.2T WLL

Description +

Austlift Turnbuckle Jaw/Jaw Grade P

Generally used for straight or in-line tensioning in conjunction with wire rope and or chain assemblies when heavy-duty straining and lifting applications are required.
Manufactured from Grade P high tensile material quenched and tempered hot-dipped galvanised finish suitable for outdoor use available in imperial sizing and jaw end fittings with locknuts.
Meets the design requirements of ASTM F1145:2017.
Proof tested to 2 x WLL and minimum brake force is 5 x WLL.
Suitable for industrial lifting purposes.
The actual sizes of thread are Whitworth.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Austlift Turnbuckle Jaw/Jaw Grade P

SKU: A0168706

Type: Turnbuckle Jaw/Jaw

$10.49

Inc. GST

Buy It Now

Available

The Austlift Turnbuckle Jaw/Jaw Grade P by Austlift is a Turnbuckle Jaw/Jaw with hot-dipped galvanised finish. It provides proof testing to 2 x WLL and is suitable for heavy-duty straining and lifting with wire rope and chain assemblies.

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Description +

Austlift Turnbuckle Jaw/Jaw Grade P

Generally used for straight or in-line tensioning in conjunction with wire rope and or chain assemblies when heavy-duty straining and lifting applications are required.
Manufactured from Grade P high tensile material quenched and tempered hot-dipped galvanised finish suitable for outdoor use available in imperial sizing and jaw end fittings with locknuts.
Meets the design requirements of ASTM F1145:2017.
Proof tested to 2 x WLL and minimum brake force is 5 x WLL.
Suitable for industrial lifting purposes.
The actual sizes of thread are Whitworth.
