Austlift W4 Chain Block 0.25Tonne (250kg)
Available
Engineered for chain block, lever hoist, push trolley or beam clamp service, the hoist pairs with standard I-beam and H-beam profiles and matched Austlift chain components. Suited to construction and steel erection lifting, mining and quarry shaft work, plant and machinery maintenance, workshop fabrication, and container and freight handling. The Austlift hoist range covers manual chain blocks, lever (ratchet) hoists, push trolleys, gear trolleys and beam clamps as a coordinated lifting system. Built to perform safely under heavy load through repeat trade and industrial use. This page covers the Austlift W4 Chain Block 3m, available in 9 wll (t) options: 0.25, 0.5, 1, 1.5, 2, 3, 5, 10 and 1 more.
Where this product is used
- Construction and steel erection lifting.
- Mining and quarry shaft work.
- Plant and machinery maintenance.
- Workshop fabrication and assembly.
Key specifications
| Product Type | Lifting Equipment |
| Standard(s) | AS 1418.2 |
Working Load Limit by size
| Size / Variant | WLL (t) | Working Load (WLL kg) |
|---|---|---|
| 0.25 | 0.25 | 250 |
| 0.5 | 0.5 | 500 |
| 1 | 1 | 1000 |
| 1.5 | 1.5 | 1500 |
| 2 | 2 | 2000 |
| 3 | 3 | 3000 |
| 5 | 5 | 5000 |
| 10 | 10 | 10000 |
| 20 | 20 | 20000 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Austlift W4 Chain Block 3m: 0.25
SKU: A0168402 | Model: 110002

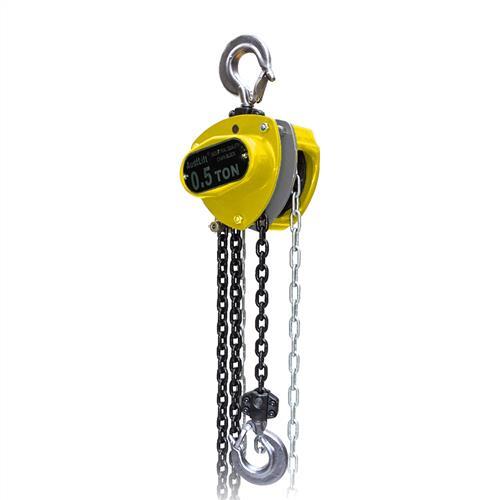

Austlift W4 Chain Block 3m
Austlift industrial grade W4 series manually operated chain blocks are used for general hoisting operation such as mining, construction, industrial lifting and domestic applications. Other colours and height of lift available upon request. Black colour available for 110500, 1T 10M chain block.
Standard height of lift is 3 metres. Other height of lift available.
Manufactured for ease of operation, and light weight in design.
Robust, durable and compact in construction.
All blocks come with ball bearing swivel hook.
Individually serial numbered with test certificate and instruction manual supplied.
