Austsaw BXR4C 103mm (4") Boxer Continuous Rim Diamond Blade

The Austsaw Boxer Continuous Rim Diamond Blade is a continuous rim diamond cutting blade for ceramics, porcelain, terracotta and cement sheet with angle grinders, listed by Austsaw as suitable for wet and dry use (manufacturer-stated). This page lists four sizes: 103mm, 115mm, 125mm and 180mm, each supplied as a single carded blade.

Boxer is listed in the Austsaw catalogue next to the Austsaw branded diamond blades, with a diamond count rating of HIGH (the Austsaw Continuous Rim range is rated HIGHEST). Austsaw lists excellent blade life and fast, smooth, clean cutting for this blade (manufacturer-stated).

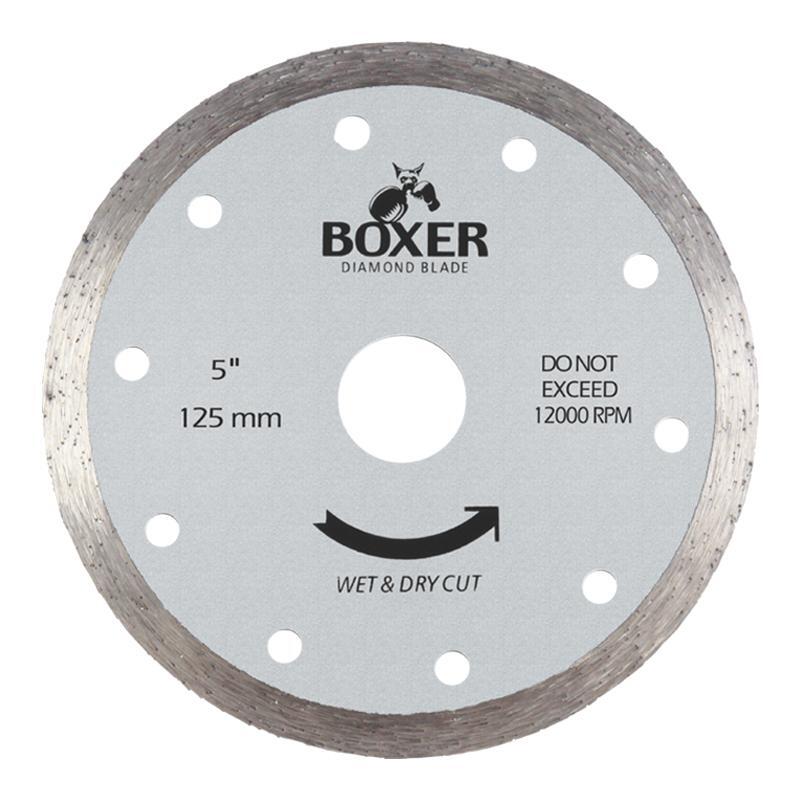

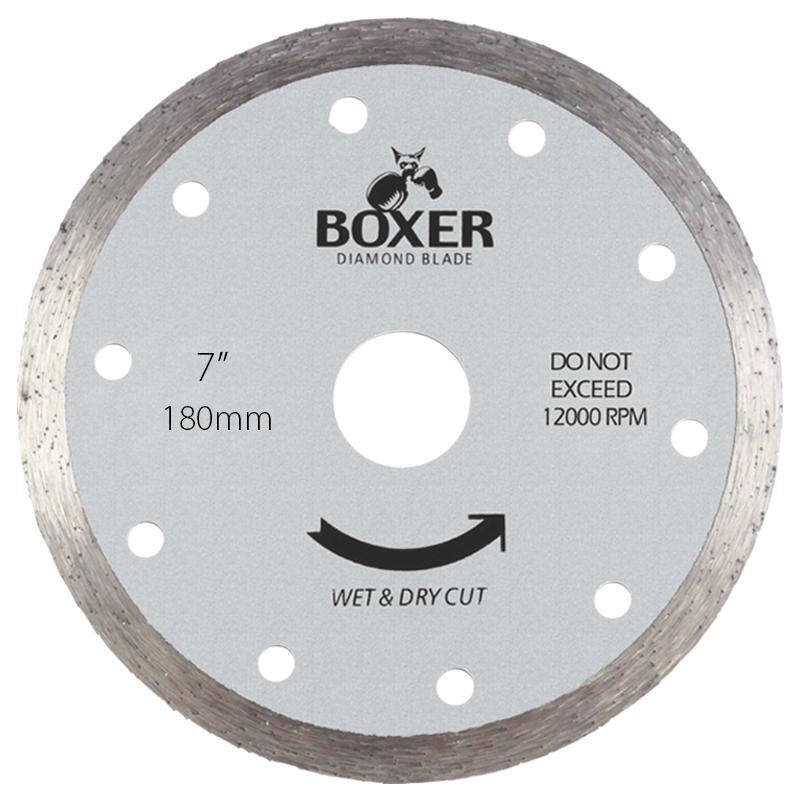

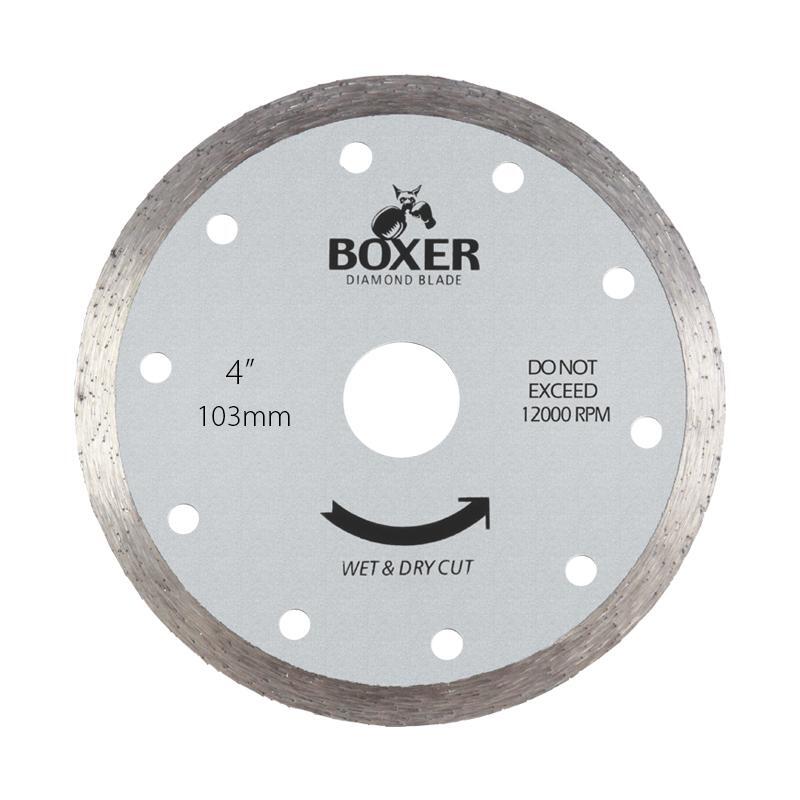

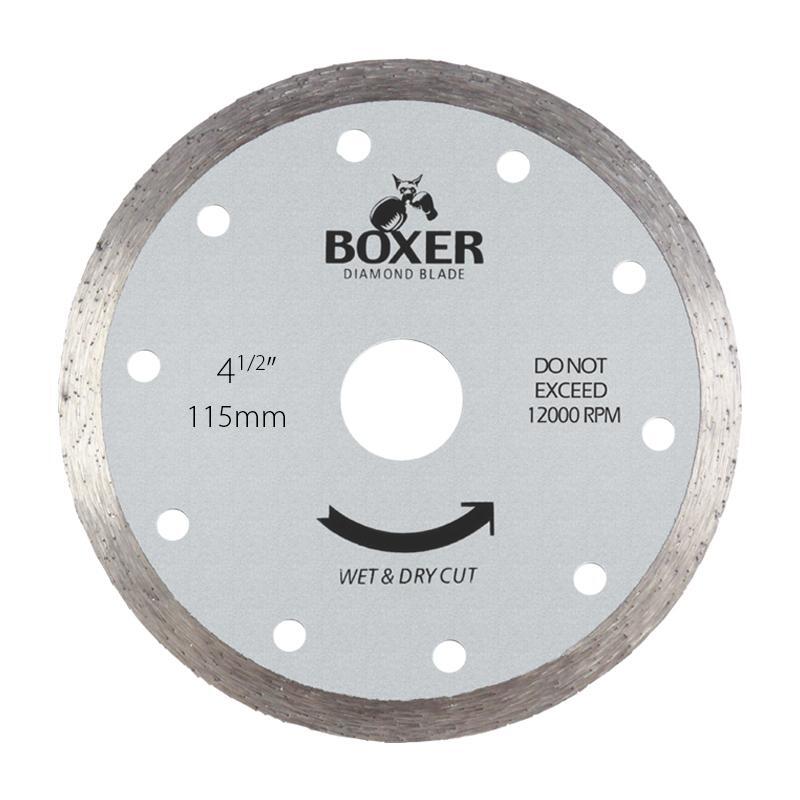

All four sizes are listed for angle grinders. The 103mm blade has a 16mm bore, the 115mm and 125mm blades a 22.2mm bore and the 180mm blade a 22.2/20mm bore. Kerf is 1.8mm on the three smaller blades and 2.4mm on the 180mm blade, and the maximum speed falls from 15,000 RPM to 8,730 RPM, so check your grinder before fitting.

Where this product is used

• Cutting ceramic and porcelain tiles
• Cutting terracotta
• Cutting cement sheet
• Wet or dry cutting with an angle grinder

Features

• Continuous rim for smooth, clean cutting (manufacturer-stated)
• Excellent blade life (manufacturer-stated)
• Suitable for wet and dry use (manufacturer-stated)
• Four sizes from 103mm to 180mm, each a single carded blade (manufacturer-stated)
• Diamond count rated HIGH in the catalogue (manufacturer-stated)

Common specifications

Key specifications

Figures are from the Austsaw catalogue Edition 21 and the Alpha Tools product feed (manufacturer-stated). Where the catalogue and the maker site differ, both are shown.

Selecting the right option

Pick 103mm, 115mm, 125mm or 180mm to suit your angle grinder and check the bore and maximum speed in the table. For sizes up to 350mm and a diamond count rated HIGHEST see Austsaw Continuous Rim Diamond Blade; for a thin kerf see Austsaw Boxer Ultra Thin Diamond Blade.

Related products

See also Austsaw Continuous Rim Diamond Blade, Austsaw Boxer Ultra Thin Diamond Blade, Austsaw Boxer Segmented Diamond Blade and Austsaw Boxer Super Turbo Wave Diamond Blade.
