Austsaw general purpose segmented diamond blade, 103

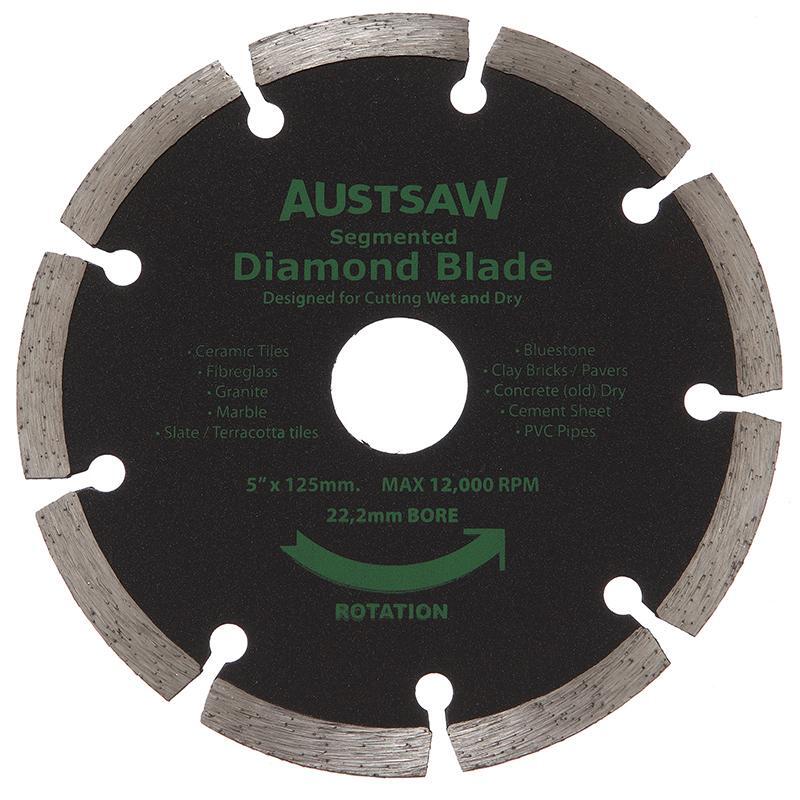

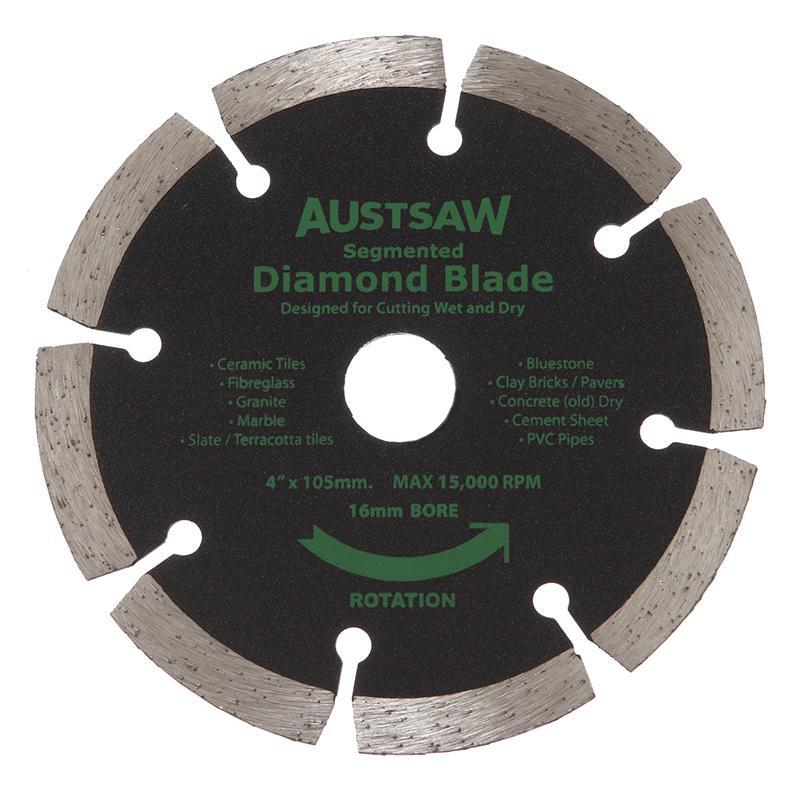

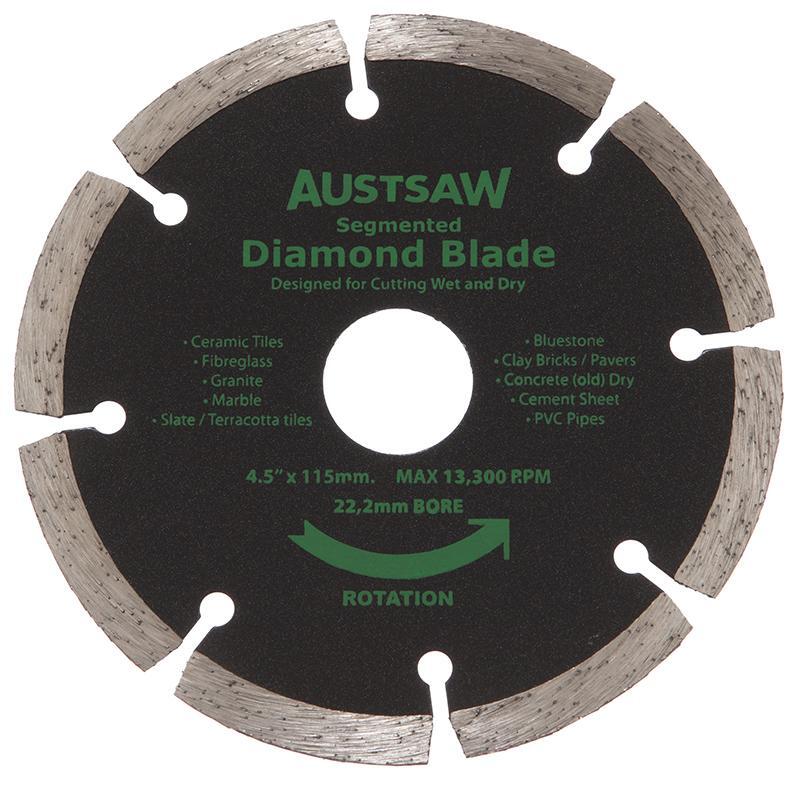

The Austsaw Segmented Diamond Blade is a general purpose segmented diamond cutting blade for concrete, brick, pavers and stone, suitable for wet and dry use. There are four sizes: 103mm, 115mm and 125mm for angle grinders and 230mm for portable saws, each supplied as a single carded blade.

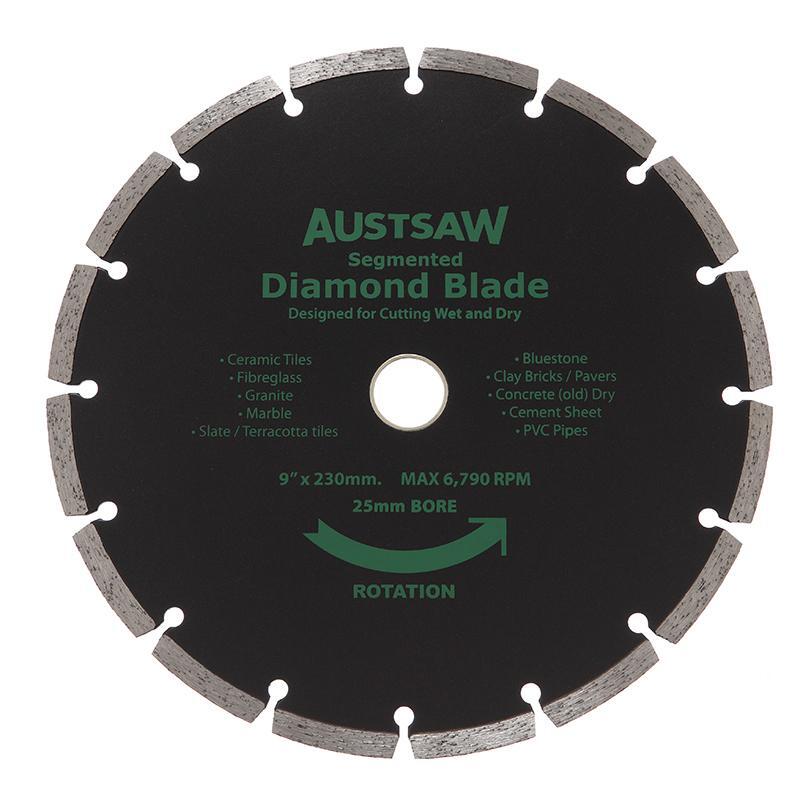

The blade has an extremely high diamond count, fast, smooth, clean cutting and less vibration, and gives a smooth clean wet or dry cut. It is for ceramic bricks, pipes, floor and wall tiles and terracotta, clay products, concrete blocks, bricks, pavement, pavers and pipes, cement sheet, and stone including basalt, bluestone, granite, limestone, marble, slate and sandstone. The three small blades have a 1.8mm kerf and maximum speeds from 15,000 RPM down to 12,000 RPM. The 230mm blade has a 25mm bore with a 22.2mm bush, a 2.8mm kerf and a maximum speed of 6,790 RPM. Check the maximum speed against your tool before fitting.

Where this product is used

• Cutting concrete blocks, bricks, pavers and pipes
• Cutting clay products and ceramic bricks
• Cutting cement sheet and board
• Cutting granite, marble, limestone and sandstone

Features

• Segmented rim with an extremely high diamond count
• Fast, smooth, clean cutting with less vibration
• Suitable for wet and dry use
• Four sizes from 103mm to 230mm, each a single carded blade

Key specifications

Choosing the right option

Choose the size for your tool: 103mm, 115mm and 125mm are for angle grinders and 230mm for portable saws. For larger segmented blades from 300mm to 530mm, including asphalt blades, see Austsaw Segmented Diamond Blade, General Purpose and Asphalt. For clean tile and porcelain cuts see Austsaw Continuous Rim Diamond Blade.

See also: Austsaw Segmented Diamond Blade, General Purpose and Asphalt, Austsaw Boxer Segmented Diamond Blade, Austsaw Super Turbo Wave Diamond Blade.
