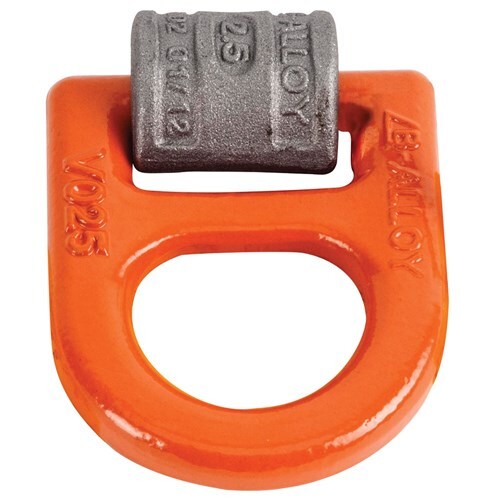

Beaver grade 100 weld-on lifting and lashing rings
Available
They have a powder coated baked enamel finish and are welded into position using the height lugs on a weld block.
The welding must be carried out to EN 287 or AWS standards by an authorised welder, and supplies welding instructions and procedures with each unit. The rings comply with AS 3776. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.
Where this product is used
- Mining, offshore exploration, road or rail transport and maritime associated industries
- Providing a lifting point on equipment
Features
- Grade 100, quenched and tempered alloy steel
- Full WLL at all angles
- Powder coated baked enamel finish
- Functional, compact design
- Welding instructions and procedures supplied with each unit
- Three sizes, WLL 1.5 to 4 t, with dimensions, weld details and weight for each
Key specifications
| Specification | Detail |
|---|---|
| Brand | Beaver |
| Product type | Lifting Ring |
Choosing the right option
The welding of these rings must only be carried out to EN 287 or AWS standards by an authorised welder, with the welding instructions and procedures supplied with each unit.
Beaver sells the rings singly (unit of measure: each).
Other Beaver lifting points and connectors: Beaver G70 Gold Clevis Lug Link, Beaver Grade 80 Eye Sling Hook w/ Safety Latch (1.1 Tonne to 15 Tonne), Beaver Grade S Screw Pin Bow Shackle.

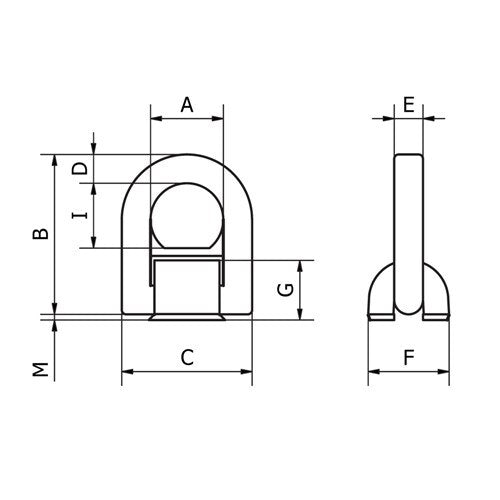

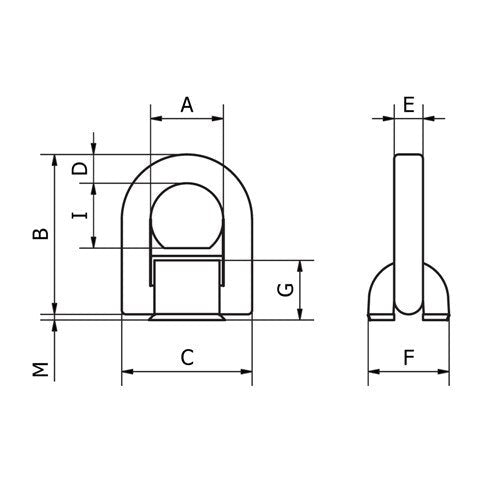

| Code | WLL (t) | A | B | C | D | E | F | G | I | M | Weld size | Weld length | Weld volume | Weight (kg each) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BALPV015 | 1.5 | 38 | 79 | 66 | 14 | 13.5 | 32 | 25 | 31 | 2 | HV 5+a3 | 2 x 33mm | Ca. 1.2cm3 | 0.4 |
| BALPV025 | 2.5 | 45 | 92.5 | 77 | 16 | 13.5 | 36 | 27 | 38 | 3.5 | HV 7+a3 | 2 x 40mm | Ca. 2.6cm3 | 0.6 |
| BALPV040 | 4 | 51 | 102 | 87 | 18 | 16.5 | 42 | 32 | 40.5 | 2 | HV 8+a3 | 2 x 40mm | Ca. 3.2cm3 | 0.9 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Beaver B-Alloy-V Weld-On Lifting and Lashing Rings, WLL 1.5 to 4 t: 1.5
SKU: A0182709 | Model: BALPV015
Beaver BALPV015 Grade 100 weld-on lifting and lashing ring, WLL 1.5 t, 0.4kg.
