Load Restraints

Load Restraint Capacity — Quick Reference (NTC Load Restraint Guide)

The NTC Load Restraint Guide (Australian Standard for road transport) requires sufficient restraint to prevent load movement under: 0.8g forward, 0.5g sideways, 0.5g rearward, 0.2g vertical bounce. Restraint capacity is rated as Lashing Capacity (LC, kg) — NOT breaking strength. Use LC for the math.

Critical rule: Total LC of restraints must be ≥ 0.8 × load weight in the forward direction. Replace any strap with cuts, frayed edges, chemical damage or UV degradation. Brands: Austlift, Beaver, Mackay, FASTY. Companion ranges: ratchet straps, chain binders, lashing chain.

Load Restraints — Ratchet Straps, Tie Downs & Chain Binders for Transport

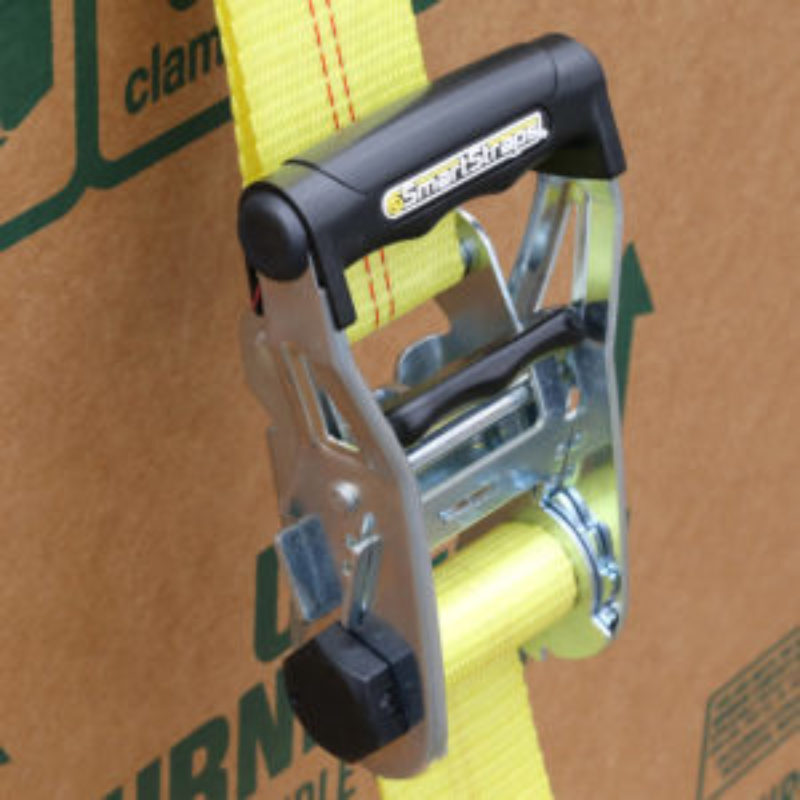

AIMS Industrial supplies a complete range of certified load restraints for transport, logistics, mining, and construction industries. Our range from Austlift, Beaver, Mackay, FASTY, and SmartStraps covers ratchet tie-down straps, axle straps, ratchet load binders, soft eye straps, and cam buckle systems — all load-rated and compliant with Australian Transport Safety standards for road freight restraint.

Load Restraint Types & Applications

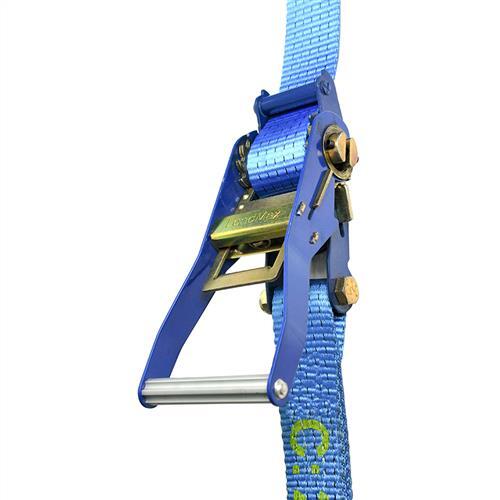

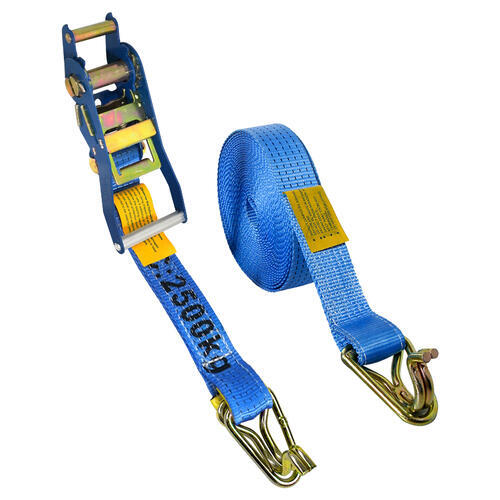

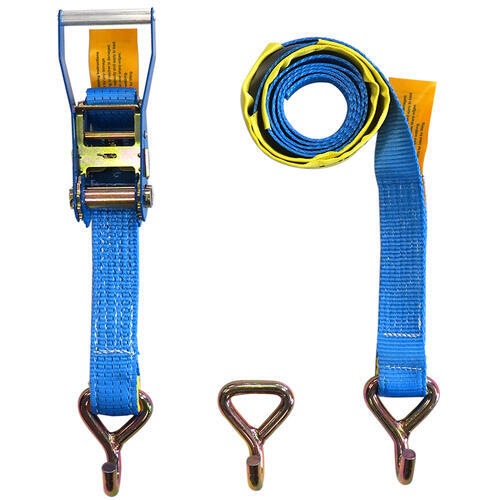

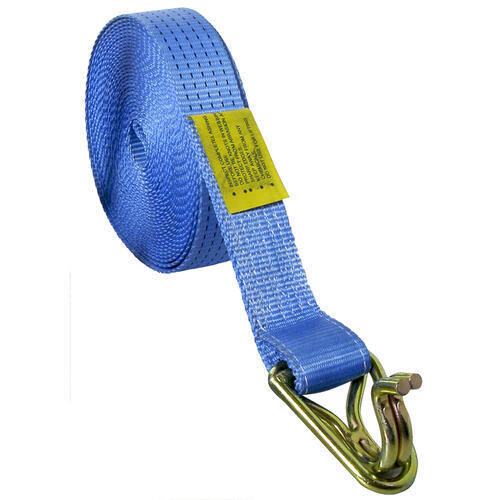

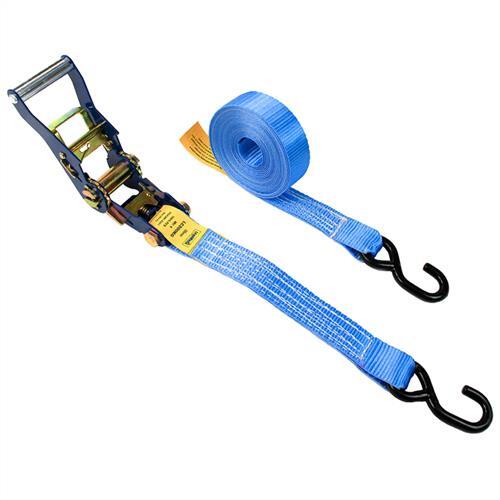

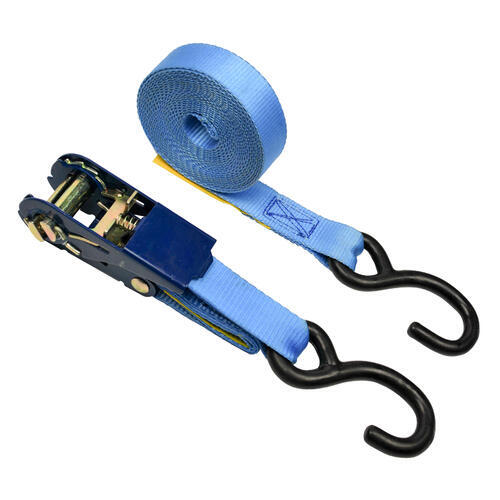

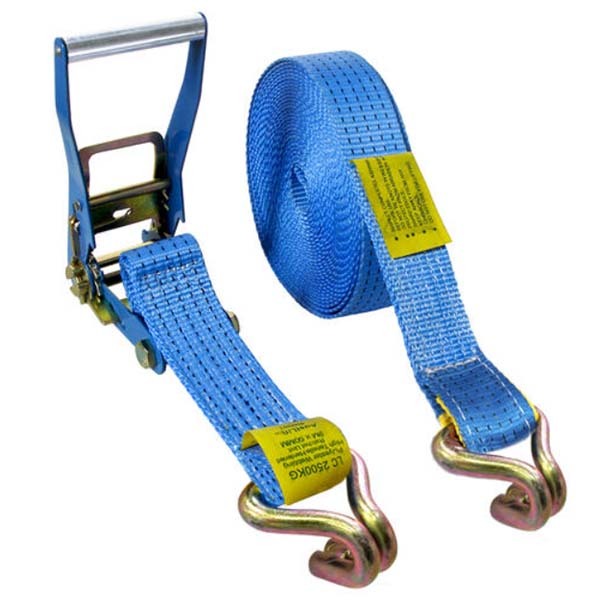

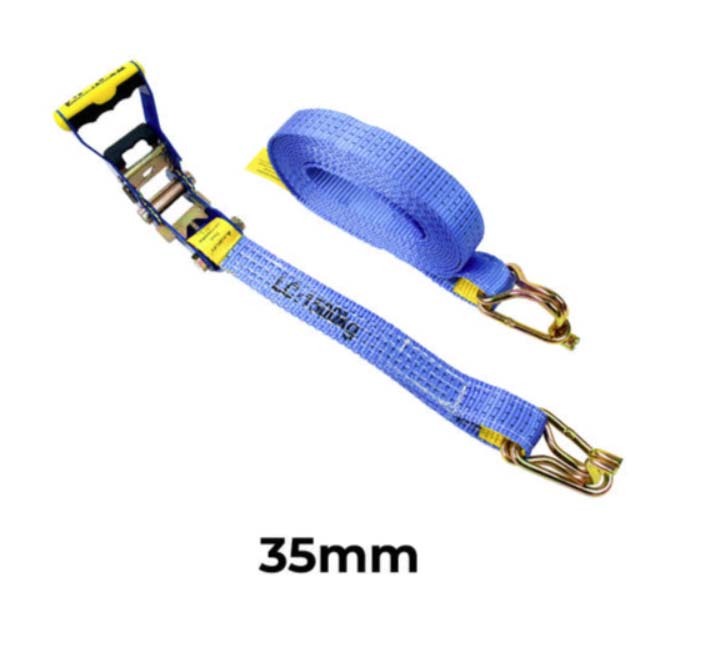

• Ratchet Tie-Down Straps: Austlift ratchet tie-down straps with hook/keeper hardware and Raze Ratchet 3/8" single-pack straps provide rated lashing capacity for securing loads on flat-top trailers, utes, and flatbed trucks — available in 1T to 5T LC ratings.
• Soft Eye Axle Straps: Austlift Soft Eye Axle Straps loop around vehicle axles and wheel hubs without metal hooks — preventing hook damage to axle housings and providing direct-contact load restraint for car transport and plant loading on float trailers.

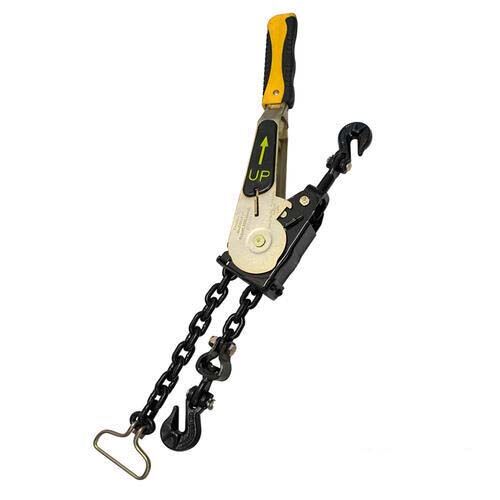

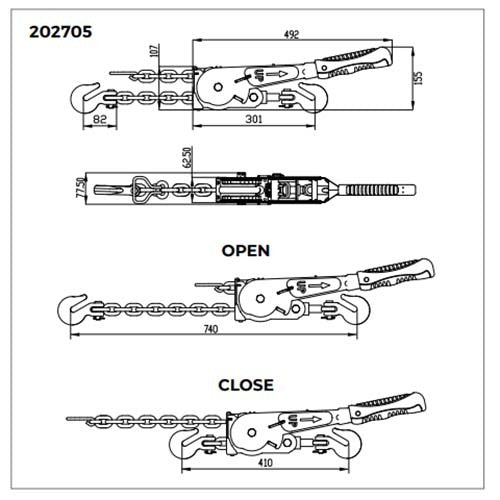

• Ratchet Load Binders: Austlift ratchet load binders with winged grab hooks are used to tension Grade 70 and Grade 80 chains securing heavy plant, machinery, and structural loads on heavy haulage trailers — lever and ratchet designs available for different tensioning requirements.

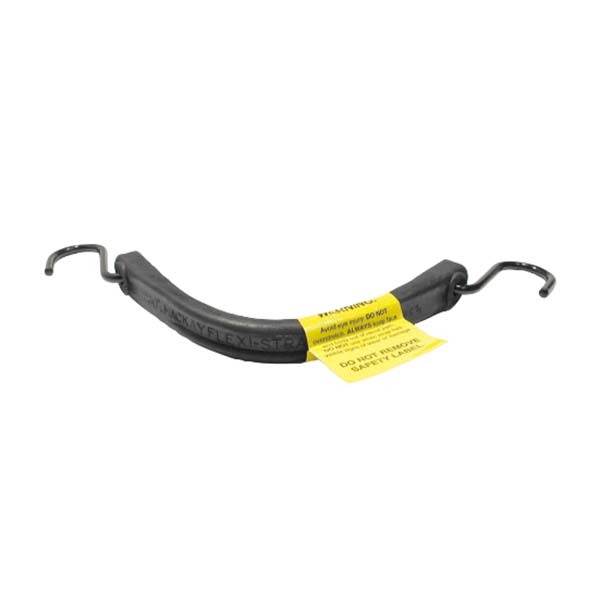

• Cam Buckle Straps: Mackay Flexi-Straps with hooks and FASTY cam buckle systems provide gentle, even load tensioning for sensitive loads such as motorcycles, automotive panels, and fragile equipment where ratchet over-tensioning could cause damage.
• D-Ring Tie-Down Straps: Austlift 50 x 460mm D-Ring End Tie-Down Straps (1T LC) provide a short, high-strength anchor strap for connecting to D-ring tie-down points on trailers and trays — a standard component in multi-point load restraint systems.

Load Restraint Compliance & Selection

• Load Capacity (LC) Rating: Select tie-down straps with a combined LC rating of at least 50% of the load mass for direct lashing, or to the load mass for indirect (loop/basket) lashing — as required by the Australian Load Restraint Guide (NHVR).
• Ratchet vs. Cam Buckle: Ratchet straps provide higher and more precise tensioning for heavy loads; cam buckle straps are better suited to lighter, fragile, or vibration-sensitive loads where controlled, lower tension is required.
• Axle Strap vs. Hook Strap: Always use soft axle straps (no metal hooks) when securing loads directly to axle housings, suspension components, and aluminium wheel rims — metal hooks cause gouging and long-term structural damage to these surfaces.
• Inspection & Retirement: Inspect all load restraints before each use for cuts, fraying, UV degradation, distorted hooks, and damaged ratchet pawls — any damage to webbing or hardware requires immediate retirement. Load restraints should also be retired after shock loading or overload events.

Australian Business, Local Supply: As a proudly Australian business since 1988, we stock locally and work with trusted local Australian manufacturers and distributors to ensure fast, reliable supply.

Browse the full range above, or contact our team for expert advice on the right product for your application or reach out if you need a quote. Fast dispatch from our Australian warehouse.

Australian load restraint regulation — the NHVR and NTC framework

Load restraint in Australia is regulated through the Heavy Vehicle National Law (HVNL) administered by the National Heavy Vehicle Regulator (NHVR), with technical requirements set out in the National Transport Commission (NTC) Load Restraint Guide. The framework applies to any vehicle carrying a load on a public road in Australia — from small contractors transporting equipment on a ute or trailer through to B-double prime movers carrying freight on the highway. The Chain of Responsibility (CoR) provisions extend liability beyond the driver to anyone in the supply chain who consigns, packs, loads or receives a load — meaning sales, dispatch and warehouse staff at AIMS customers carry direct responsibility for load restraint adequacy.

The NTC framework requires sufficient restraint to prevent load movement under the standard test deceleration values: 0.8g forward (the most demanding — equivalent to a hard emergency stop), 0.5g sideways (cornering), 0.5g rearward (acceleration), and 0.2g vertical bounce (rough road). Restraint capacity is rated as Lashing Capacity (LC, kg) — the force a restraint can apply continuously without failure. Lashing Capacity is NOT the breaking strength of the strap or chain — it's typically half the minimum breaking load, providing the safety margin built into the standard. Always use LC values for the load restraint calculation, not breaking strength.

The four restraint methods and when each is right

NTC recognises four restraint methods. Most loads use a combination, not a single method:

Tie-down (friction restraint): Ratchet straps over the load create downward force that increases the friction between load and deck. This is the most common method for general freight. Required LC depends on the friction coefficient between load and deck — friction matting under loads can lift the effective restraint significantly. Tie-down alone needs more LC than direct methods because friction is the working principle.

Direct restraint: Chains or straps attached directly to anchor points on the load, capturing the load to the deck or trailer structure. Used for machinery and vehicles with rated tie-down points. Lower LC requirement than friction tie-down because the restraint acts directly rather than through friction.

Blocking (containment): Headboards, side gates, end gates and load-stops physically prevent the load from moving in the relevant direction. Common on flatbed trucks with full headboard plus removable side and rear gates. Often combined with tie-down for vertical bounce restraint.

Attachment (fastening): The load is bolted, welded or otherwise rigidly connected to the deck. Used for permanent or semi-permanent installations on the vehicle.

Calculating the right LC for your load

The basic NTC calculation works in steps. (1) Identify the load weight in kg. (2) Apply the worst-case deceleration multiplier (0.8 forward × 1.0g of weight = 0.8 × load weight as the forward force to restrain). (3) Account for friction credit if using tie-down with measured friction coefficient between load and deck. (4) Specify the combined LC across all restraints to exceed the calculated force. For a 2,000kg piece of plant on a flatbed with a typical 0.4 friction coefficient on bare steel, the tie-down calculation requires substantially more LC than the same load on a 0.7-coefficient rubber friction mat. The Load Restraint Guide includes worked examples for typical load types.

Ratchet straps, chains and binders — the restraint hardware

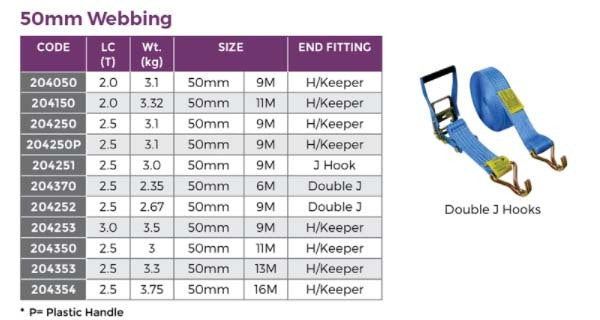

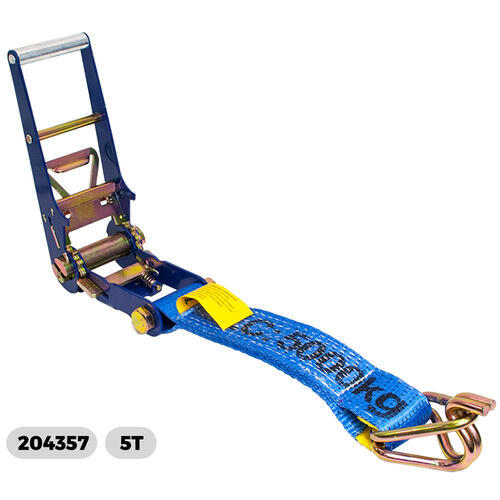

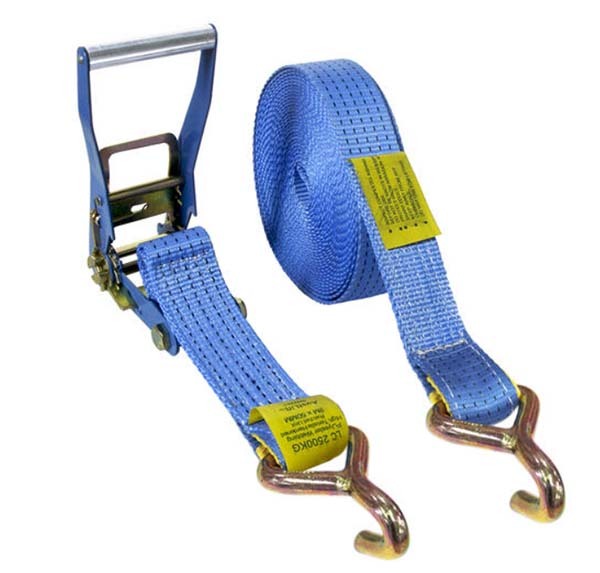

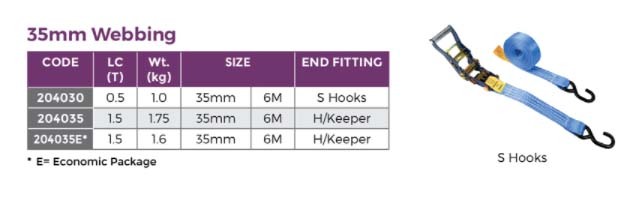

Ratchet tie-down straps are the dominant restraint hardware in Australian transport. Common LC ratings: 250kg LC (25mm webbing — light freight), 1,000kg LC (35mm webbing — general transport), 2,500kg LC (50mm webbing — heavy freight, machinery), 5,000kg LC (75mm webbing — heavy machinery, vehicles). Webbing standard AS 4380.1 covers manufacturing requirements. Inspect webbing before each use for fraying, cuts, chemical damage and UV deterioration — damaged webbing must be removed from service.

Load binder chains handle heavy machinery and vehicle transport. Grade 70 transport chain is the Australian standard for general transport; Grade 80 and Grade 100 chains are higher LC for the same chain diameter and suit heavy mining and earthmoving equipment transport. The chain assembly includes the chain itself, end fittings (clevis hooks, sling hooks, foundry hooks), and the tensioning binder (ratchet binder or lever binder). Specify the complete assembly to match — mixing manufacturers and grades complicates the LC rating.

Webbing slings and load-rated straps for specific lifting and lashing applications — see lifting equipment for the lifting-rated webbing range.

Workplace and roadside enforcement — what gets checked

NHVR roadside inspections of load restraint are routine on Australian highways. Inspectors check: visible restraint coverage (enough straps/chains for the load weight), restraint condition (frayed webbing, damaged hooks, cut chains — any of which can result in an immediate defect notice), restraint anchor points (rated and welded vs unrated and bolted), load distribution (centre of mass, axle weight compliance), and load coverage (tarps or covers for loose materials, dust suppression for bulk loads). Penalties for non-compliance range from a defect notice and on-the-spot fine through to vehicle grounding for severe breaches. The CoR framework means the consignor (AIMS or AIMS customers) shares liability with the driver — the legal documentation showing restraint adequacy at the point of dispatch protects the consignor in the event of an incident or roadside inspection.

Brand depth — Austlift, Beaver and the AIMS load restraint range

Austlift is the Australian-distributed industrial lifting and restraint brand and the headline supplier of load restraint hardware at AIMS. The Austlift range covers ratchet tie-down straps (25mm through 75mm webbing, LC ratings from 250kg through 5,000kg), load binder chains (Grade 70 and Grade 80, with matching end fittings), winch bars and dollies for tensioning chain assemblies, corner protectors for sharp-edged loads, and the related lifting equipment ecosystem. Austlift's strength is the Australian distribution and warranty position — when a strap fails in service or a chain needs recertification, the supply chain works.

Beaver brings premium Grade 80 and Grade 100 chain and rigging to AIMS, suiting the heavy mining and earthmoving load restraint segment where the lighter Grade 70 chain doesn't reach the required LC at workable diameters.

The Austlift and Beaver ranges are complemented by AIMS-stocked Toho shackles (galvanised and stainless), Mack winch bars and dollies, and the broader Garrick hoist and rigging range for lifting and restraint cross-applications.

Cross-link to AIMS lifting and load handling ecosystem

Load restraint connects to the broader AIMS lifting and load handling category. Companion ranges: lifting equipment (chain blocks, lever hoists, electric hoists, slings — for lifting before tying down), lifting chains (Grade 80 chain slings for lifting), shackles (rated bow and dee shackles for chain end connections), lifting hooks, material handling and storage (pallet jacks, hand trucks for the load setup before restraint), and safety for the PPE side (hi-vis, gloves, safety boots for the loading operation). For load restraint training and reference see the ratchet strap guide and related load restraint articles.

Load restraints — common questions

How many ratchet straps do I need for a 2,000kg pallet?

The calculation depends on the friction between pallet and deck plus the strap LC. For a 2,000kg load on a typical 0.4 friction surface, you need around 2,400kg of LC in the forward direction (calculated as 0.8g × 2,000kg ÷ friction credit). Two 1,500kg LC straps (3,000kg total) exceeds this minimum and provides margin. The NTC Load Restraint Guide includes a "rules of thumb" appendix that simplifies the calculation for common load shapes — worth keeping a printed copy in the dispatch area.

Are ratchet straps OK for transporting machinery?

For light machinery within their LC rating, yes — 5,000kg LC straps handle 5-tonne machinery within the calculation framework. For heavier machinery, chains and binders are typically the right choice because the higher LC per restraint reduces the number of restraints needed and the load on each anchor point. The NHVR roadside inspection on heavy machinery transport typically expects to see chains rather than straps for any single load over 10 tonnes.

What's the difference between LC and WLL ratings?

LC (Lashing Capacity) is the load restraint context — the rated working force for tie-down and direct restraint applications. WLL (Working Load Limit) is the lifting context — the rated working force for lifting and rigging applications. The two ratings are different test methodologies and shouldn't be interchanged. A strap rated for lifting (WLL) is not automatically rated for tie-down at the same number, and vice versa. AS 4380 covers tie-down restraints; AS 1353 and others cover lifting equipment. Buy fit for purpose — lifting slings for lifting, ratchet tie-downs for restraint.

How often do I inspect and replace ratchet straps?

Visual inspection before every use. Look for: webbing fraying, cuts or holes; chemical or UV damage (typically visible as a stiff, brittle or discoloured patch); damaged ratchet mechanism (worn pawl teeth, bent handle, broken release); damaged end fittings (cracked or deformed hooks). Any of these flags removes the strap from service. There's no hard replacement schedule but practical service life for trade use is typically 12–24 months before the webbing accumulates enough wear to require replacement. Heavy outdoor use shortens this; light intermittent use extends it.

Can I store ratchet straps wet?

No. Wet webbing left coiled in a confined space (toolbox, ute box) accumulates microbial growth that weakens the fibres over time. Dry the straps thoroughly before storage, and ideally hang or loosely coil rather than tight-packing wet. UV exposure degrades nylon and polyester webbing — store straps out of direct sunlight when not in use.

What about transporting motorcycles, bicycles or quad bikes?

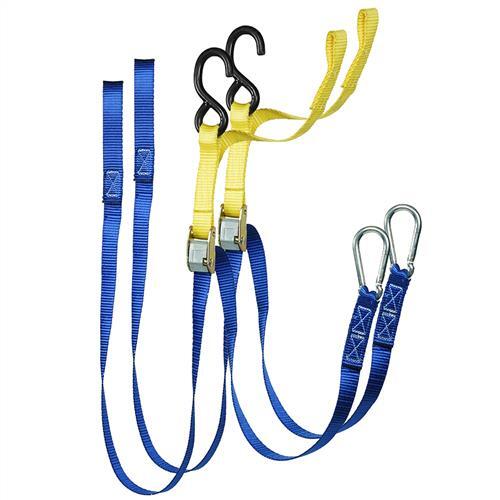

Two-wheel and quad transport has specific challenges — the load is unstable until restrained, has limited rated tie-down points, and exposed components (handlebars, mirrors, panels) damage easily. The standard approach: front wheel chock or wheel cradle to hold position, four corner straps to compress suspension and lock the bike to the deck, soft loops or tie-down extenders to protect anodised and painted surfaces. Specific motorcycle tie-down sets are available with the integrated soft loops and lower-LC straps appropriate to the bike weight. For quads use four straps to the rated tow points (where fitted) plus a wheel chock.

For load restraint sizing matched to your typical loads, compliance review against NTC Load Restraint Guide, or quotes on Austlift and Beaver restraint hardware, contact our team.

People Also Ask — Load Restraints and Tie-Downs

Q: What load restraint standards apply in Australia?

The National Transport Commission's Load Restraint Guide (current 3rd edition) sets the legal requirement for vehicle load restraint in Australia. Key principle: load must not move under 0.8g forward, 0.5g sideways, 0.5g rearward acceleration. Equipment must have rated capacities marked (LC — Lashing Capacity for straps, WLL — Working Load Limit for chain). Compliance is enforced by state road authorities and police; non-compliance can lead to penalties and unloading at roadside.

Q: Ratchet strap or chain restraint?

Ratchet strap (webbing with ratchet tensioner): suitable for general cargo, lighter loads, easy to tension, doesn't damage surface finish. LC ratings 250kg-5000kg per strap depending on width. Chain restraint with binder: heavy loads, machinery, abrasive cargo, longer life under heavy duty. WLL ratings up to 20+ tonnes per chain. For most general cargo: ratchet straps. For heavy mining/construction equipment: chains. The LRG specifies minimum restraint capacity based on load weight and type.

Q: What width ratchet strap do I need?

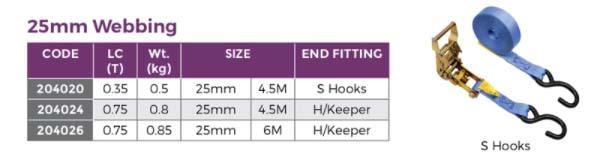

25mm webbing: LC 750-1500kg, suitable for light cargo, motorcycles, light equipment. 35mm: LC 1500-2500kg, suitable for medium general cargo. 50mm: LC 2500-5000kg, the workshop and trade standard for general transport. 75mm: LC 4000-8000kg, heavy cargo and machinery. Match LC to load weight + safety margin. Width relates to strap strength, not necessarily the right answer — sometimes multiple narrower straps are better than fewer wider straps.

Q: How often do load restraints need inspection?

Pre-trip visual inspection every use — operator checks for cuts, fraying, hardware damage, missing labels. Detailed inspection every 6-12 months by competent person — full record check, hardware function, webbing UV degradation. Damaged restraints must be removed from service immediately — re-using damaged straps invalidates compliance. Maintain inspection records for fleet operators. AIMS can recommend qualified inspectors for ongoing fleet maintenance.

Q: What does the LC rating on a strap mean?

LC = Lashing Capacity, the maximum load the strap can hold in tie-down service per AS/NZS 4380. Marked on every strap label. Used for general lashing applications. WLL (Working Load Limit) is similar but applies to lifting equipment — DON'T use lashing equipment for lifting and vice versa. They're rated for different load conditions. Stick to the marked use case. For specific load configurations (over-edge bend, looped lashing), capacity may need de-rating per the LRG.
