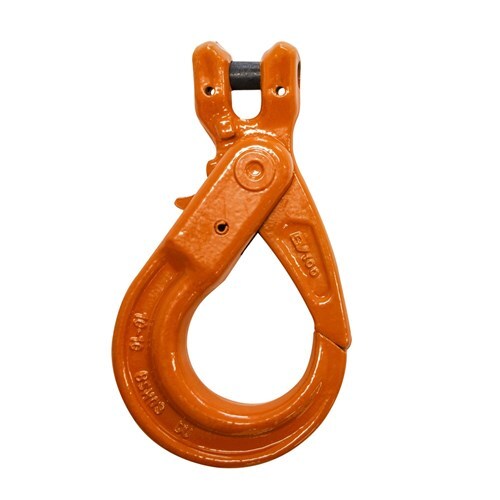

Beaver BV100 Grade 100 Clevis Self Locking Hook, 10 mm, 4 t WLL (HKCSLBV100010MM)

The Beaver BV100 Grade 100 clevis self locking hook (HKCSLBV100010MM) suits 10 mm Grade 100 chain, with a working load limit (WLL) of 4,000 kg (4 t). Beaver states that the hook closes and locks automatically and will not open under load.

Beaver states that the hook is made from heat treated alloy steel, is tested throughout manufacture, carries identification markings and complies with AS 3776. The clevis pin connects the hook directly to the chain, so no connecting link is needed.

Where this product is used

• Lifting component, commonly used in a Grade 100 chain assembly (manufacturer-stated)
• Heavy duty lifting (manufacturer-stated)

Features

• Grade 100 clevis self locking hook, WLL 4,000 kg (4 t) for 10 mm chain
• Closes and locks automatically and will not open under load (manufacturer-stated)
• Clevis pin connects directly to chain without a connecting link (manufacturer-stated)
• Replacement pin available (manufacturer-stated)
• Replacement trigger kit RSLKBV10010MM
• Heat treated alloy steel (manufacturer-stated)
• Complies with AS 3776 (manufacturer-stated)
• Weight 1.4 kg, approximate

Key specifications

Code, chain size, WLL, weight and trigger kit are from Beaver's website. This hook is not listed in Beaver's Materials Handling Technical Manual (Vol. 4). Weight is approximate.

Selecting the right option

Use this hook only with matching Grade 100 components, and keep the whole assembly (chain, link, hook and lifting point) rated for the load. The assembly is limited by its lowest-rated component. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards. If you are unsure what suits your lift, contact AIMS or a qualified rigger before ordering.
