Beaver Grade 80 Component Connector 6 mm, 1.1 t WLL (C6)
Available

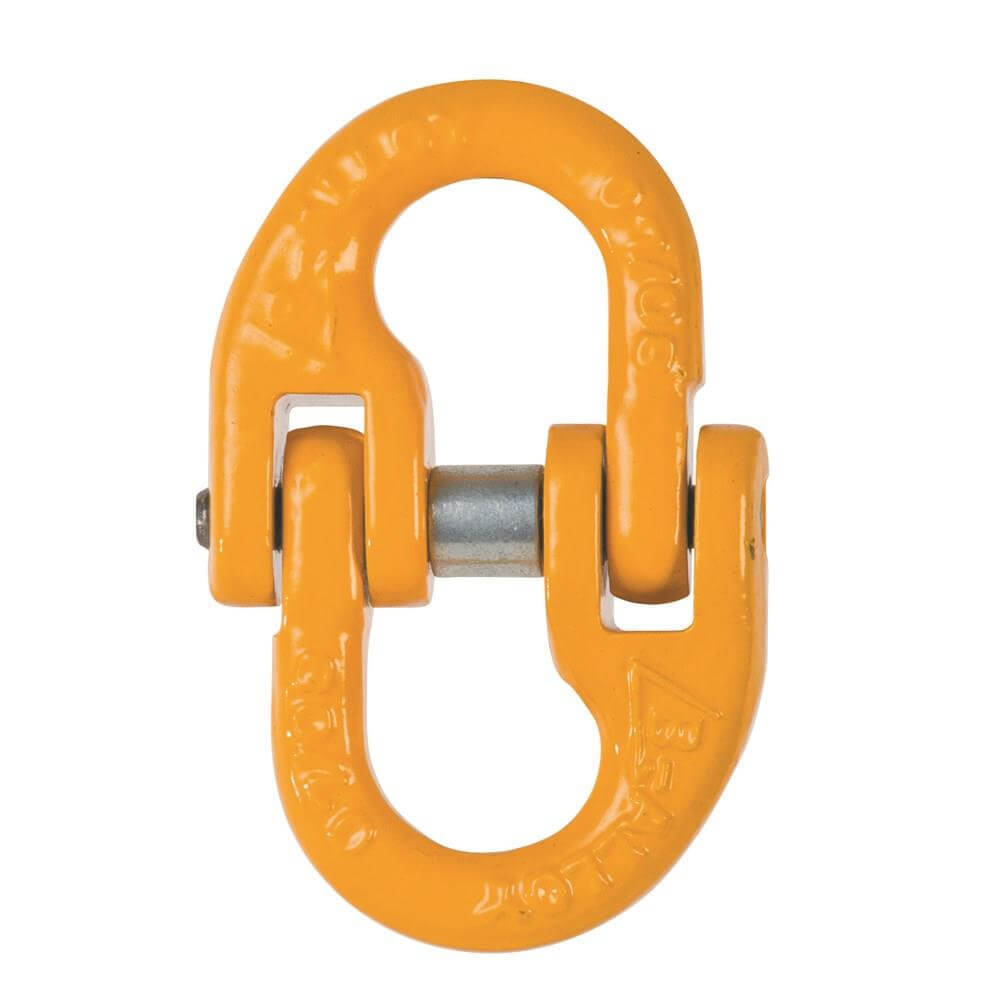

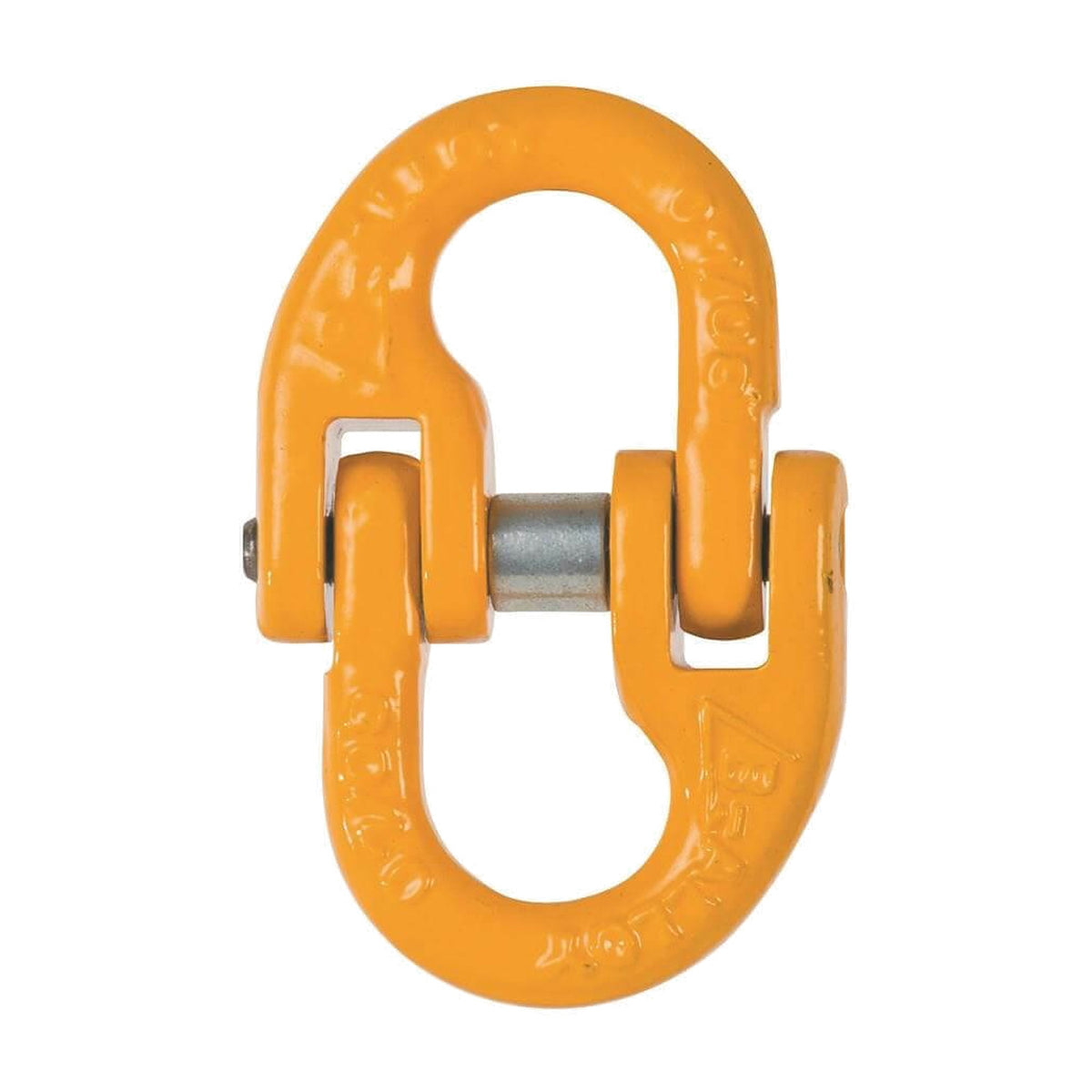

Beaver Grade 80 component connectors (couplers) suit 6 mm to 32 mm Grade 80 chain, with working load limits (WLL) of 1,100 kg (1.1 t) to 31,500 kg (31.5 t). Beaver states each connector is two symmetrical die-forged halves joined by a heavy duty stud and pin, so it can be separated when needed, and that it is a conventional style chain connector.
Beaver states that its Grade 80 lifting components are made from heat treated alloy steel, are tested throughout manufacture, and meet AS 3776, Lifting Components for Grade T Chain Slings. They carry distinguishing marks, including the brand, grade and size and a date of manufacture and batch ID.
Where this product is used
- Heavy duty lifting where chain needs to be joined with a connector (manufacturer-stated)
- Joining Grade 80 chain assemblies, with a replacement pin and stud kit listed for each size
Features
- Grade 80 component connector (coupler), WLL 1,100 kg (1.1 t) to 31,500 kg (31.5 t)
- Two symmetrical die-forged halves joined by a heavy duty stud and pin (manufacturer-stated)
- Replacement pin and stud kit available for each size
- Marked with brand, grade and size, date of manufacture and batch ID (manufacturer-stated)
- Meets AS 3776, Lifting Components for Grade T Chain Slings (manufacturer-stated)
Key specifications
| Code | Chain size (mm) | WLL (kg) | Weight each (kg) | Replacement pin and stud kit |
|---|---|---|---|---|
| C6 | 6 | 1,100 | 0.08 | 894206BA |
| C7-8 | 7-8 | 2,000 | 0.15 | 894208BA |
| C10 | 10 | 3,200 | 0.3 | 894210BA |
| C13 | 13 | 5,300 | 0.63 | 894213BA |
| C16 | 16 | 8,000 | 1.2 | 894216BA |
| C20 | 20 | 12,500 | 2.1 | 894220BA |
| C22 | 22 | 15,000 | 3.1 | 894222BA |
| C26 | 26 | 21,200 | 4.5 | 894226BA |
| C32 | 32 | 31,500 | 8.21 | 894232BA |
Weights and codes are from Beaver's Materials Handling Technical Manual (Vol. 4) and are approximate. Chain size is the Grade 80 chain size the component suits.
Selecting the right option
Choose the size by the WLL and the chain size it must match, and make sure every part of the assembly (chain, link, hook and lifting point) is Grade 80 and rated for the load. When replacing the pin and stud, use the Beaver kit listed in the table for that size. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards. If you are unsure what suits your lift, contact AIMS or a qualified rigger before ordering.
Related products
Other Beaver Grade 80 components: clevis single master links, clevis sling hooks with safety latch.
