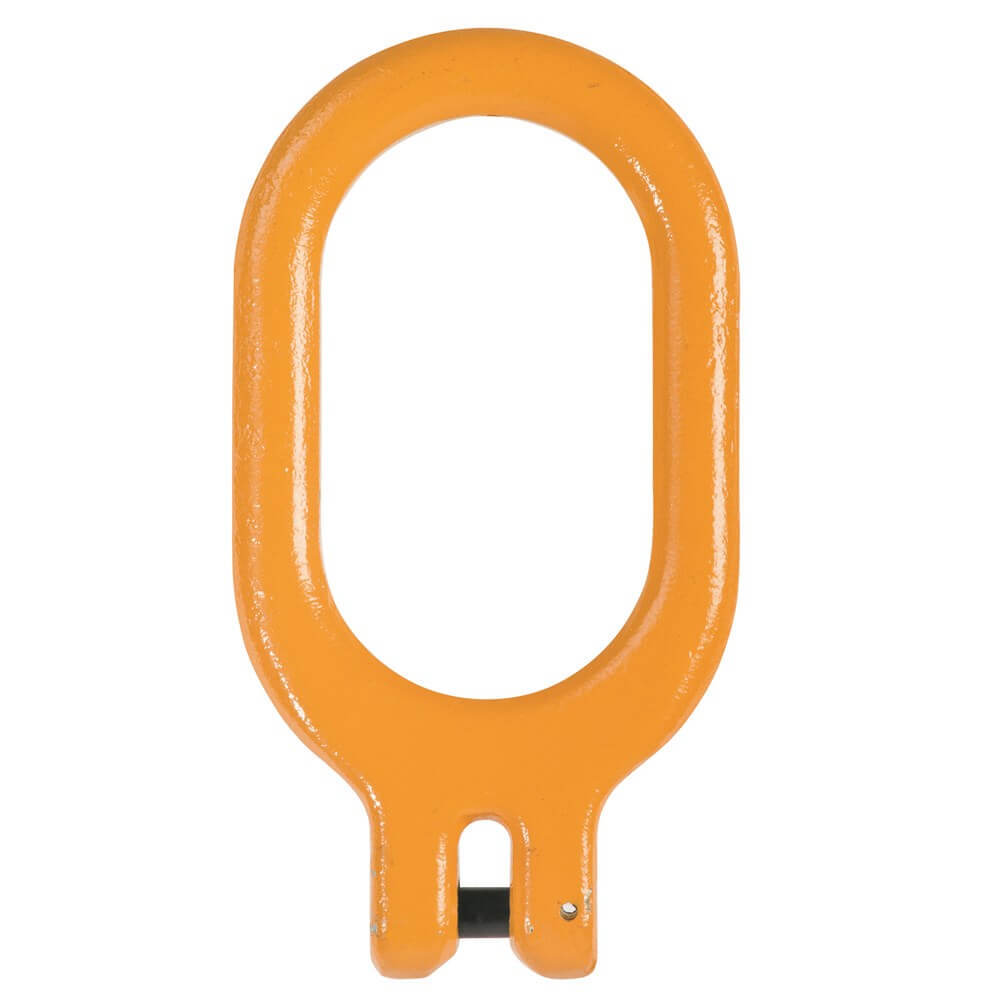

Beaver grade 80 clevis single master links, 8 / 2000

Beaver Grade 80 clevis single master links suit 7-8mm to 13mm Grade 80 chain, with working load limits (WLL) of 2,000kg (2 t) to 5,300kg (5.3 t). The clevis pin connects directly to the chain without a connecting link, and the link lets chain or other lifting components be attached and detached.

Its Grade 80 lifting components are made from heat treated alloy steel, are tested throughout manufacture, and meet AS 3776, Lifting Components for Grade T Chain Slings. They carry distinguishing marks, including the brand, grade and size and a date of manufacture and batch ID.

Where this product is used

• Attaching and detaching chain or other lifting components
• Chain sling assemblies, using the WLL chart for the correct chain size

Features

• Grade 80 clevis single master link, WLL 2,000kg (2 t) to 5,300kg (5.3 t)
• Clevis pin connects directly to chain without a connecting link
• Marked with brand, grade and size, date of manufacture and batch ID
• Meets AS 3776, Lifting Components for Grade T Chain Slings

Key specifications

Choosing the right option

Chain size is the Grade 80 chain size the component suits.

Choose the size by the WLL and the chain size it must match, and make sure every part of the assembly (chain, link, hook and lifting point) is Grade 80 and rated for the load. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.

Other Beaver Grade 80 components: Beaver Grade 80 Oblong Master Link, Single / Double Leg (2.6 to 54.5 Tonne), Beaver Grade 80 Multi-Leg Oblong Master Link (3.15 Tonne to 31.5 Tonne), Beaver Grade 80 Component Connector (1.1 Tonne to 31.5 Tonne).
