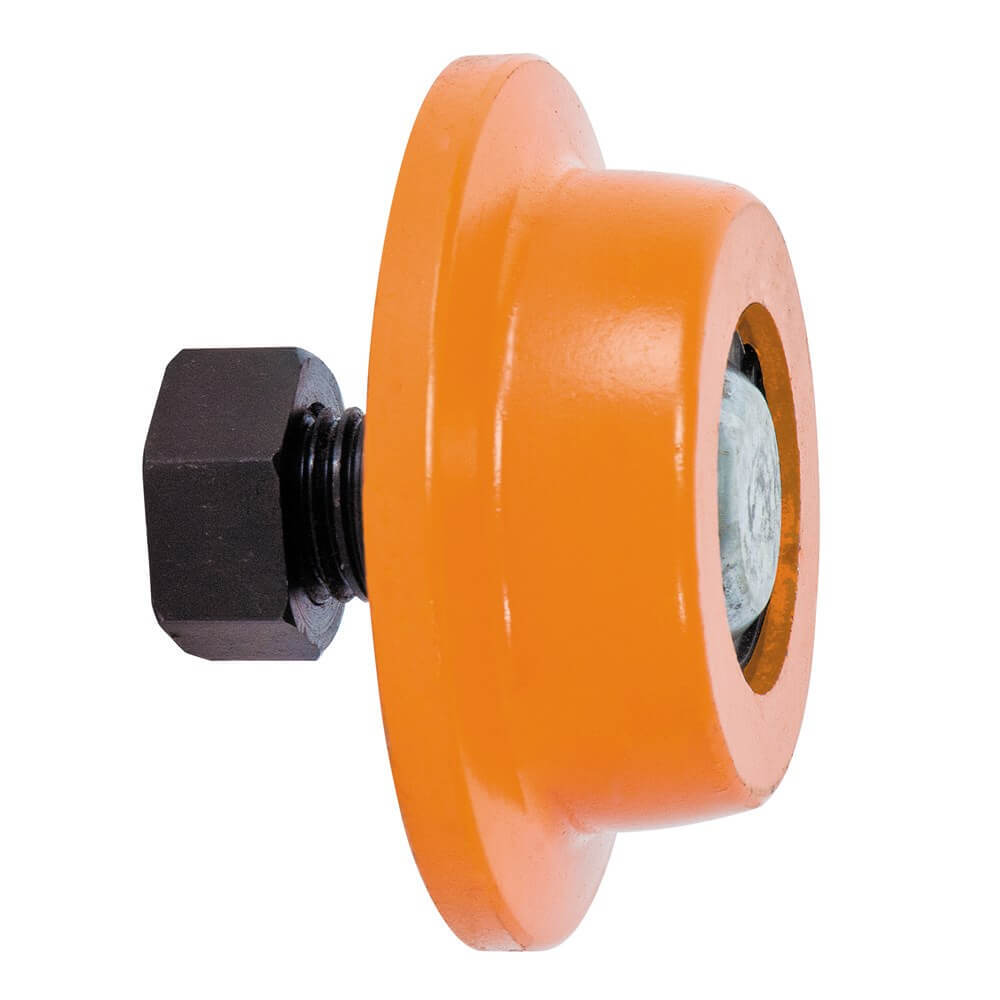

Beaver Single Flange Steel Plain Trolley Wheel, 1 t WLL over 4 Wheels (525010S)

Beaver single flange steel plain trolley wheels are steel wheels with a plain bore and a single flange, fitted with precision ball bearings, for Beaver push and geared girder trolleys (manufacturer-stated). This listing carries two codes: 525010S (1 t) and 525020S (2 t).

Beaver states that the working load limit (WLL) for each wheel code applies across the four wheels of a trolley, so each wheel carries one quarter of the stated capacity (manufacturer-stated). A single 525010S wheel is therefore rated for 250 kg and a single 525020S wheel for 500 kg on that basis. Beaver publishes no standard or proof load for the wheels. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards. If you are unsure what suits your lift, contact AIMS or a qualified rigger before ordering.

Where this product is used

• Replacing or fitting wheels on Beaver push and geared girder trolleys, as Beaver describes the wheels (manufacturer-stated)

Features

• Steel construction, plain bore, single flange (manufacturer-stated)
• Precision ball bearings (manufacturer-stated)
• WLL applies across four wheels, so each wheel carries one quarter of the stated capacity (manufacturer-stated)

Key specifications

Figures are from Beaver's Materials Handling Technical Manual (Vol. 4) and data sheet. Dimensions are in millimetres and the letters follow Beaver's drawing. The load per wheel column is the WLL divided by four, from Beaver's note. Beaver also lists 0.5 t, 3 t, 5 t and 10 t wheel codes (525005S, 525030S, 525050S and 525100S), which AIMS does not carry.

Selecting the right option

Choose the wheel code that matches your trolley and its rated capacity, and check the dimensions against the wheel you are replacing. If you are unsure which code suits your trolley, ask AIMS before ordering.

Related products

Related lifting products: push girder trolleys and geared girder trolleys, which these wheels are made for (manufacturer-stated). Check each item is rated for the lift before you order.
