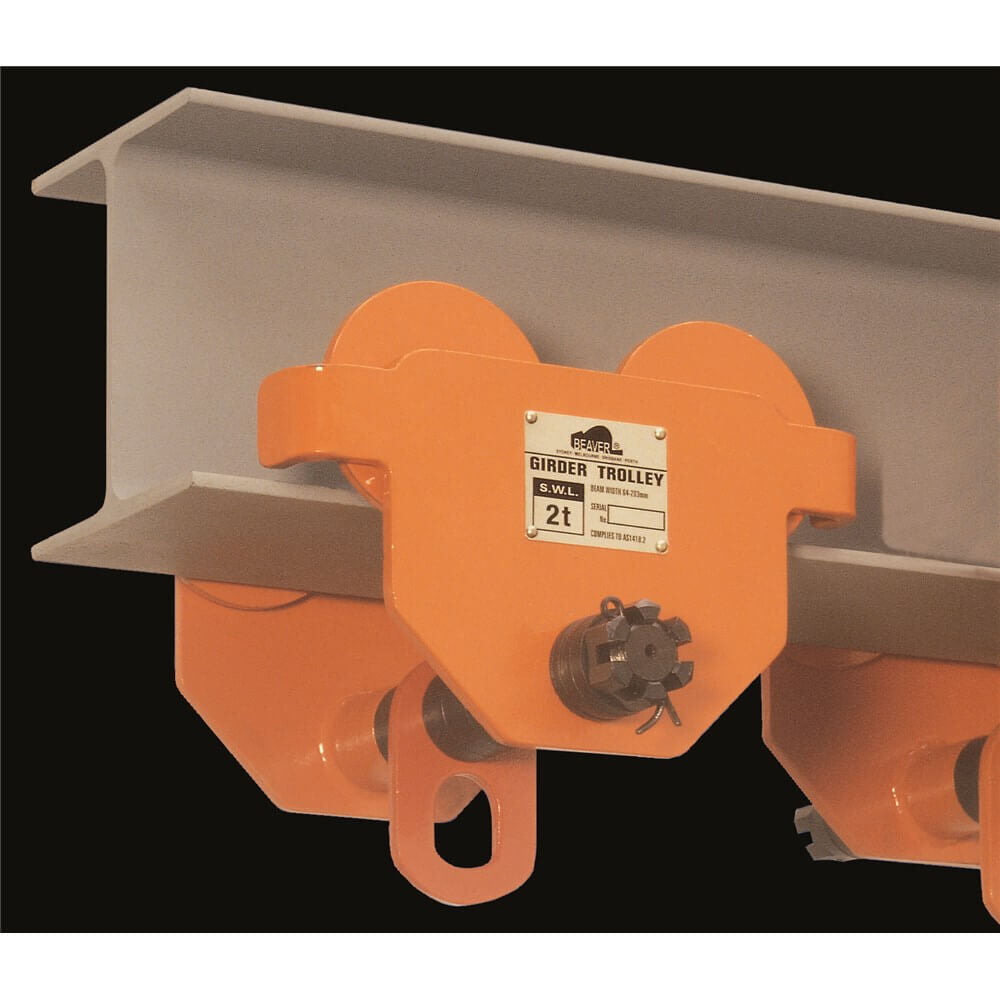

Beaver Integral Push Trolley and Girder Clamp, 2 t, 72-200 mm Beam (270020YTE)

Beaver's integral push trolley and girder clamp combines a push trolley with a girder clamp, so a load can be attached to an overhead beam and moved along it (manufacturer-stated). The clamp is set to the beam width by turning a threaded spindle, and Beaver says the threaded adjustment is secured by tightening a locking lever against the side plate (manufacturer-stated).

This listing is code 270020YTE, a 2 t unit with a beam width of 72-200 mm on the AIMS record. Beaver does not publish a table for the YTE code. Its manual says the model type is YT, with a yellow enamel finish, and that the black finish is used for YTE models, and it publishes YT data for 1 t (270010YT), 2 t (270020YT) and 3 t (270030YT), with a 75-200 mm beam width (manufacturer-stated). The figures below are Beaver's YT figures, shown for reference. Confirm the details of the YTE code with AIMS before ordering.

Beaver states the integral push trolley and girder clamp complies with AS 1418.2 (manufacturer-stated). It says every unit is operationally tested to 150% of its rated capacity and comes with an individual test certificate, and that each unit has a serial number stamped on the body and on the aluminium ID plate that matches the test certificate (manufacturer-stated). Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards. If you are unsure what suits your lift, contact AIMS or a qualified rigger before ordering.

Where this product is used

• Attaching a load to an overhead beam and moving it along the beam, for permanent or temporary mounting, as Beaver describes the integral push trolley and girder clamp (manufacturer-stated)

Features

• Integral push trolley and girder clamp in one unit (manufacturer-stated)
• Threaded spindle adjusts the clamp to the beam width, secured by a locking lever against the side plate (manufacturer-stated)
• Zinc plated threaded spindle (manufacturer-stated)
• Steel construction with a durable enamel finish, black on YTE models (manufacturer-stated)
• Built-in load bar for reduced headroom (manufacturer-stated)
• Serial number stamped on the body and on the ID plate, matching the test certificate (manufacturer-stated)

Key specifications

These are Beaver's published figures for the yellow YT model from its Materials Handling Technical Manual (Vol. 4), shown for reference. Beaver does not publish figures for 270020YTE, the black YTE code listed here. Dimensions are in millimetres and the letters follow Beaver's drawing. Beaver's website lists only 270010YT and 270020YT.

Selecting the right option

Confirm the details of the 270020YTE code with AIMS first, then check that the beam width range covers your beam flange and that your beam is suited to the load. The unit is only as strong as the beam it is on, so if you are unsure ask AIMS, a qualified rigger or an engineer before ordering.

Related products

Related lifting products: YC industrial girder clamps, push girder trolleys and 3S chain blocks. Check each item is rated for the lift before you order.
