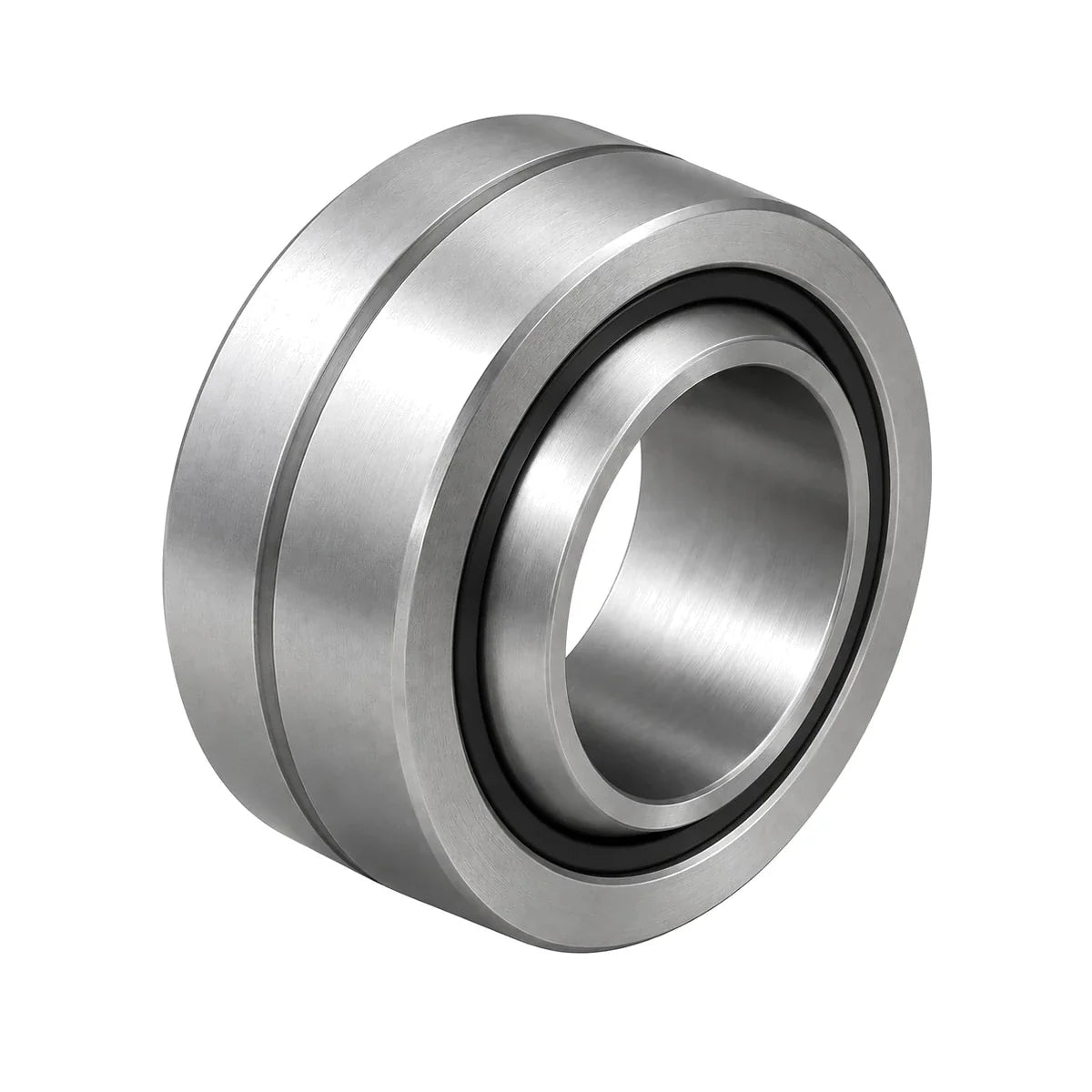

BECO BJ15F-2RS Heavy Series Spherical Plain Bearing Sealed
Available
BECO heavy series radial spherical plain bushings — spherical plain bearings — carry heavy radial load while letting the shaft sit out of square, which is the job a rolling bearing cannot do.
The series G envelope is wider and larger in outside diameter than the equivalent series E size, so you get a higher load rating on the same bore. Hardened steel on hardened steel sliding surfaces, for very high static load capacity and good tolerance of shock and alternating loads. Sealed on both sides to hold the grease in and keep dirt and water out.
These need periodic greasing — plan it into the service schedule.
At a glance
| Bearing type | Heavy Series Spherical Plain Bearing |
|---|---|
| Standard | DIN ISO 12240-1 series G |
| Sliding surfaces | Steel on steel |
| Sealing | 2RS seals, both sides |
| Lubrication | Relubrication required |
| Bore range | 15 mm to 100 mm (14 sizes) |
- Series G envelope — wider and larger in outside diameter, for a higher load rating on the same bore
- Very high static load capacity — hardened steel on hardened steel, built for shock and alternating loads
- Sealed both sides — holds the grease in and keeps dirt and water out of exposed positions
Full specifications, applications and features are in the tabs below.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
15 x 30 x 16mm bearing
Model Number: BJ15F-2RS_BECO
-
17 x 35 x 20mm bearing
Model Number: BJ17F-2RS_BECO
-
20 x 42 x 25mm bearing
Model Number: BJ20F-2RS_BECO
-
25 x 47 x 28mm bearing
Model Number: BJ25F-2RS_BECO
-
30 x 55 x 32mm bearing
Model Number: BJ30F-2RS_BECO
-
35 x 62 x 35mm bearing
Model Number: BJ35F-2RS_BECO
-
40 x 68 x 40mm bearing
Model Number: BJ40F-2RS_BECO
-
45 x 75 x 43mm bearing
Model Number: BJ45F-2RS_BECO
-
50 x 90 x 56mm bearing
Model Number: BJ50F-2RS_BECO
-
60 x 105 x 63mm bearing
Model Number: BJ60F-2RS_BECO
-
70 x 120 x 70mm bearing
Model Number: BJ70F-2RS_BECO
-
80 x 130 x 75mm bearing
Model Number: BJ80F-2RS_BECO
-
90 x 150 x 85mm bearing
Model Number: BJ90F-2RS_BECO
-
100 x 160 x 85mm bearing
Model Number: BJ100F-2RS_BECO
