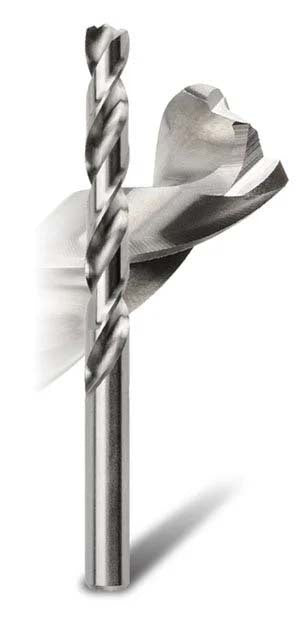

Bordo 1mm Delta Point Bright HSS Jobber Drill Bit - Metric
Available
The Bordo Delta Point Bright HSS Jobber Drill Bit - Metric is part of Bordo's Australian range of jobber drill bits, built for reliable performance in trade and industrial applications.
Key Specifications
| Diameter (mm) | 1 |
|---|---|
| Spindle Speed Free Cutting Stl RPM | 13696 |
| Flute Type | 30° Helix |
| Flute Length (mm) | 12 |
| Overall Length (OAL) mm | 34 |
| Feed per Revolution (mm) | 0.04 |
| Spindle Speed Aluminium/Brass RPM | 19429 |
| Spindle Speed Stainless Steel RPM | 3822 |
| Spindle Speed Wood/Plastic RPM | 28984 |
| Point Type | Delta Point |
| Spindle Speed Malleable Iron RPM | 8600 |
| Spindle Speed Med. Carbon Steel RPM | 9555 |
| Spindle Speed Cast Iron RPM | 7644 |
| Spindle Speed Tool Steel RPM | 5733 |
Product Features
- DIN338
- This means more edge doing the cutting and the results are simply extraordinary
- Bordo Metric Delta Point M2-HSS Twist Drills
- Delta Point drills have a multi-faceted cutting tip
- Rather than try and modify existing point types, or tweak the grind angles, Delta Point tip design required a revolutionary re-think of drill tip function
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo Delta Point Bright HSS Jobber Drill Bit - Metric: 1
SKU: A0198531 | Model: 2015-1.00
This is the 1mm diameter option of the Bordo Delta Point Bright HSS Jobber Drill Bit - Metric. Key details for this option: flute type 30° Helix, point type Delta Point, flute length 12mm.
Bordo Delta Point Bright HSS Jobber Drill Bit
Delta Point Bright HSS Twist.
Bordo Metric Delta Point M2-HSS Twist Drills.
DIN338.
Delta Point drills have a multi-faceted cutting tip.
Rather than try and modify existing point types, or tweak the grind angles, Delta Point tip design required a revolutionary re-think of drill tip function.
The overall length of the cutting edge significantly exceeds that of conventional drills.
This means more edge doing the cutting and the results are simply extraordinary.
Drilling times for a range of split point and Delta Point drills consistently showed that Delta Point bits were twice as fast in mild steel.
During independent lifetime testing Delta point drill bits averaged 609 holes in 20mm mild steel, ten times more holes than split point drills.
Drills Faster lasts longer.
Bright Finish Twist Drills have no surface treatment and are supplied in the as-ground condition.
These tools are suitable for general purpose use, particularly for non-ferrous applications.
