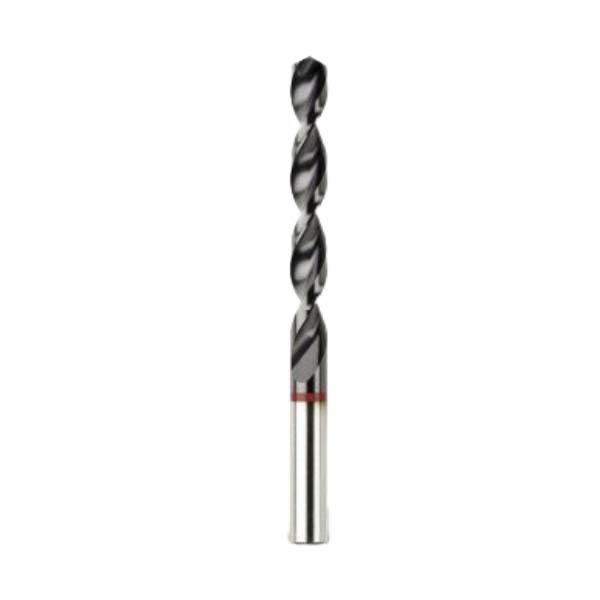

Bordo HSS Cobalt TiAlN Coated Red Band Jobber Drill Bit
Bordo Metric Red Band HSS-Co TiAlN Coated Twist Drills for Tough Treatable Steel.
DIN338.
130° UX point with two helical parabolic flutes with 33 degrees of helix angle.
The mechanical properties of materials are influenced diversely by the addition of alloying elements and heat treatment processes, resulting in some high-strength, quenched and tempered steels or hardened steels.
This range has its own unique set of machining requirements which are satisfied by the Red Band - Tough Treatable Steel - Series.
TiAlN coating increases tool surface hardness to 87Rc.
For machining materials with Hardness < 470 HB: Tensile Strength <1500 N/mm².
About UX Point
The notched UX point provides self centering, easier penetration, improved hole accuracy and improved load distribution.
The special notch geometry gives a corrected rake angle of 15° which provides a strong point for harder materials, as well as preventing snatching with materials such as Aluminium, Brass, Bronze and Plastics.
About Drill Bit Surface Treatment
Violet / Grey (Titanium Aluminium Nitride - TiAlN) A violet/grey finish with a higher hardness than both TiN and TiCN coating utilises aluminium in the coating which imparts greater oxidation stability. This stability is a result of a very thin film (of Aluminium Oxide) which is formed on the surface of the TiAlN.
This film is self repairing which leads to increased tool service life.
This high performance coating is able to withstand much higher temperatures which allows increased speeds and feeds and semi-dry machining operations.
TiAlN coating is especially useful when machining cast iron and tough steels.
Specifications
Applications
Features & Benefits
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Bordo HSS Cobalt TiAlN Coated Red Band Jobber Drill Bit
The Bordo HSS Cobalt TiAlN Coated Red Band Jobber Drill Bit by Bordo is a Jobber Drill Bit with a violet/grey TiAlN finish. It provides a tool surface hardness of 87Rc and is suitable for drilling tough treatable steel.
Bordo HSS Cobalt TiAlN Coated Red Band Jobber Drill Bit
Bordo Metric Red Band HSS-Co TiAlN Coated Twist Drills for Tough Treatable Steel.
DIN338.
130° UX point with two helical parabolic flutes with 33 degrees of helix angle.
The mechanical properties of materials are influenced diversely by the addition of alloying elements and heat treatment processes, resulting in some high-strength, quenched and tempered steels or hardened steels.
This range has its own unique set of machining requirements which are satisfied by the Red Band - Tough Treatable Steel - Series.
TiAlN coating increases tool surface hardness to 87Rc.
For machining materials with Hardness < 470 HB: Tensile Strength <1500 N/mm².
About UX Point
The notched UX point provides self centering, easier penetration, improved hole accuracy and improved load distribution.
The special notch geometry gives a corrected rake angle of 15° which provides a strong point for harder materials, as well as preventing snatching with materials such as Aluminium, Brass, Bronze and Plastics.
About Drill Bit Surface Treatment
Violet / Grey (Titanium Aluminium Nitride - TiAlN) A violet/grey finish with a higher hardness than both TiN and TiCN coating utilises aluminium in the coating which imparts greater oxidation stability. This stability is a result of a very thin film (of Aluminium Oxide) which is formed on the surface of the TiAlN.
This film is self repairing which leads to increased tool service life.
This high performance coating is able to withstand much higher temperatures which allows increased speeds and feeds and semi-dry machining operations.
TiAlN coating is especially useful when machining cast iron and tough steels.
