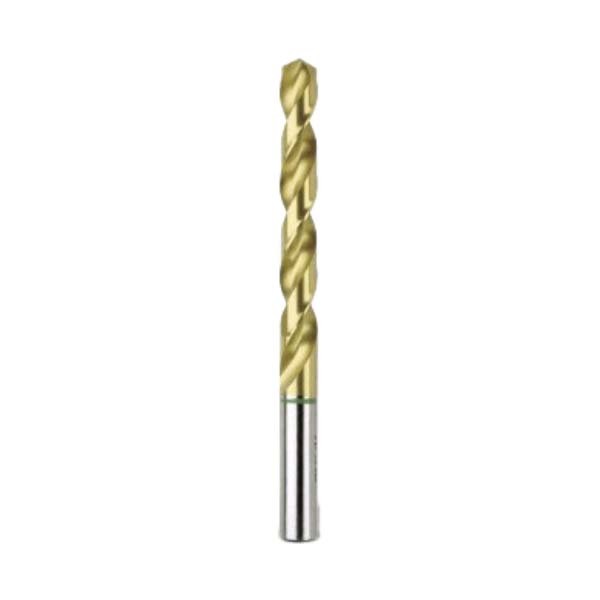

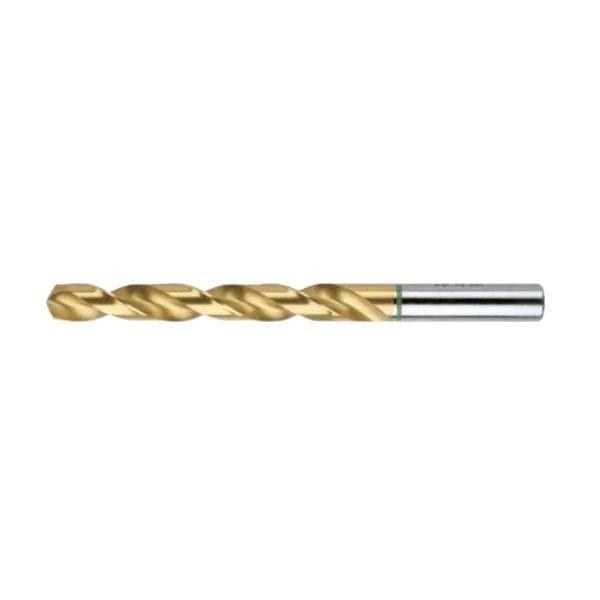

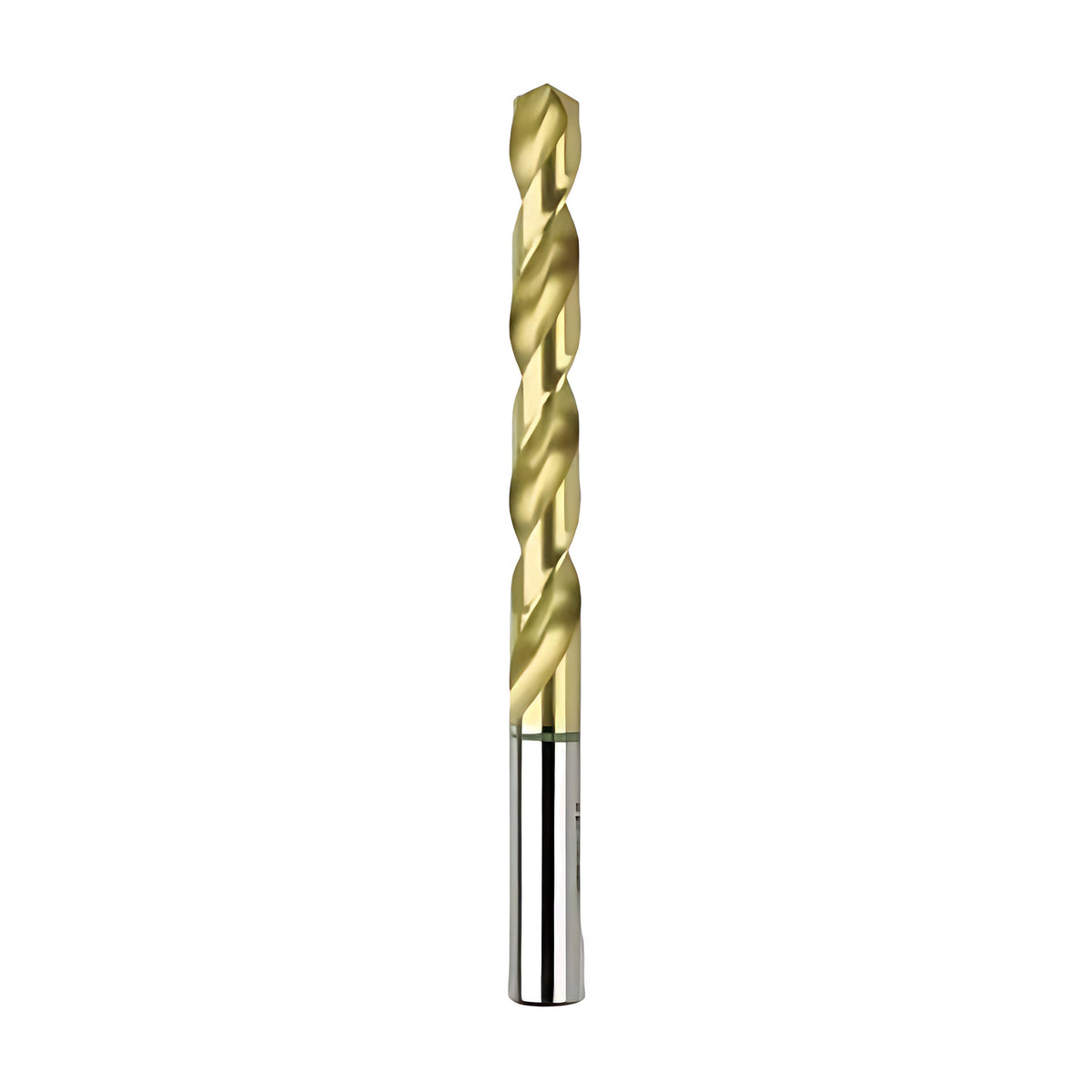

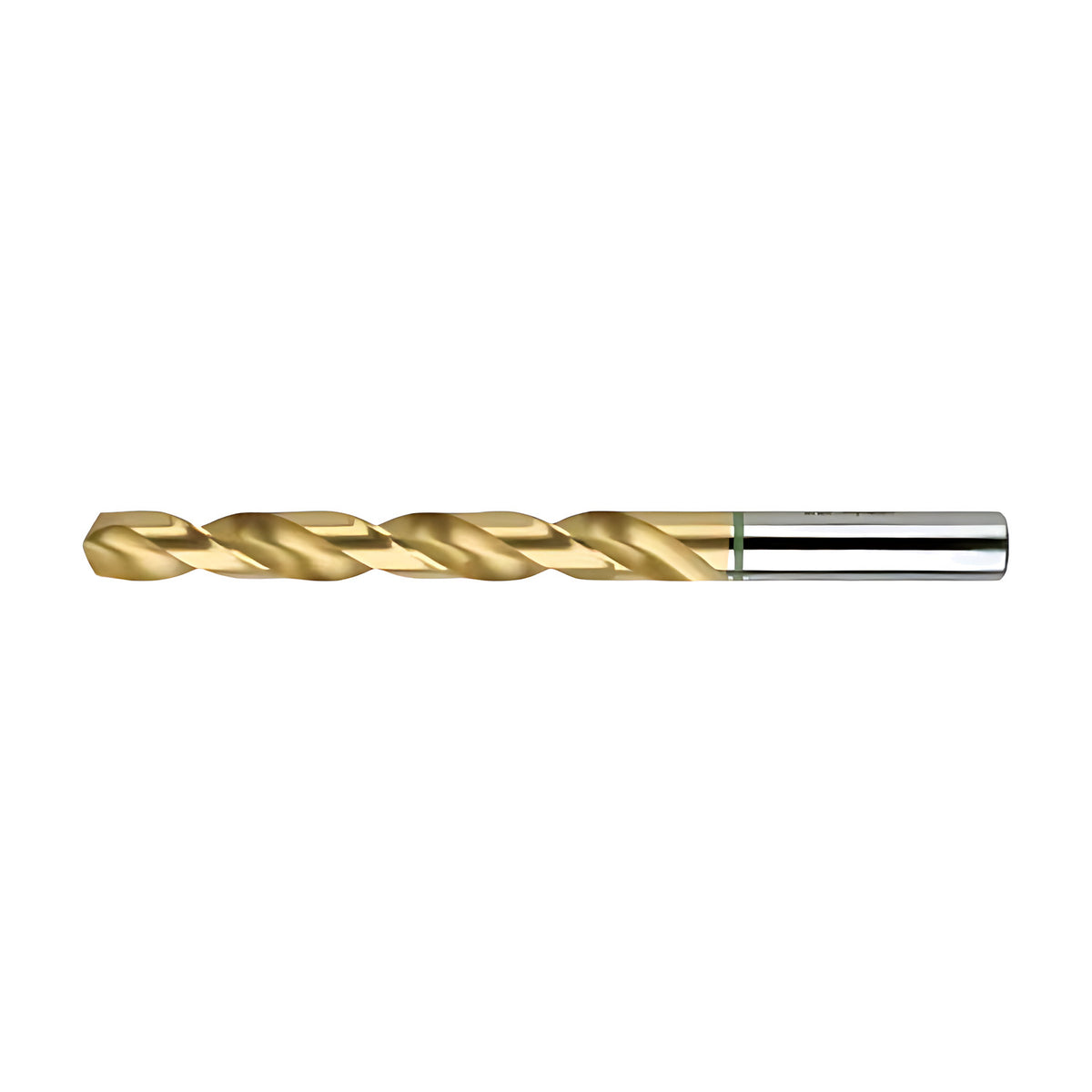

Bordo HSS Cobalt TiN Coated Green Band Jobber Drill Bit: 2

SKU: A0193915 | Model: 2056-2.00

This is the 2mm diameter option of the Bordo HSS Cobalt TiN Coated Green Band Jobber Drill Bit. Key details for this option: flute type 33° Helix, type of point 130° Split Point, flute length 24mm, surface finish Gold Coloured.

Bordo HSS Cobalt TiN Coated Green Band Jobber Drill Bit

Bordo Metric Green Band HSS-Co TiN Coated Twist Drills for Carbon Steel.

DIN338.

130° split point with two helical flutes with 33 degrees of helix angle.

The machinability of different carbon steels is as varied as their properties. Soft-tough construction steels place a unique set of demands on the tools.

The Green Band Series of drills and taps have been developed specifically for this range of steels.

For machining materials with Hardness < 250 HB: Tensile Strength <900 N/mm².

About Split Point

The 130° Split Point provides self centering and easier penetration.

The 33° helix open profile flute design has a reinforced web for high rigidity under extreme conditions.

About Drill Bit Surface Treatment

GOLD FINISH (TiN) (Titanium Nitride) A very hard gold-coloured surface finish a few microns thick is achieved by Physical Vapour Deposition (PVD).

As with all surface-coated tools, performance will deteriorate after resharpening.

The coating helps to dissipate heat and reduces friction and cold welding.

Higher speed and feed rates can be achieved and tool life is greatly increased.
