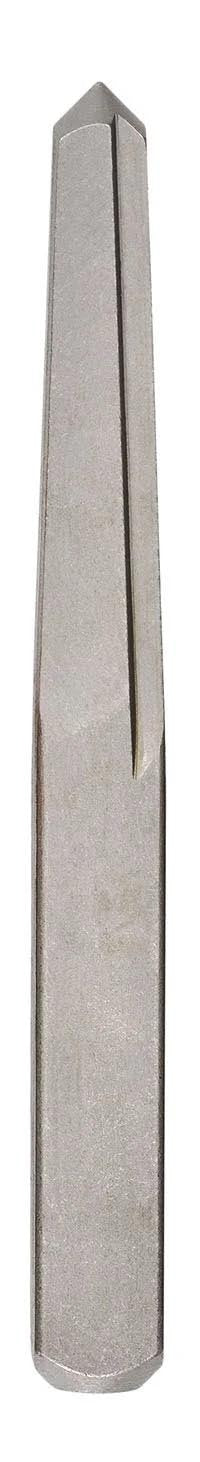

Bordo No. 1 Square Screw Extractor
Available
The Bordo Square Screw Extractor is part of Bordo's Australian range of hand tools, built for reliable performance in trade and industrial applications.
Key Specifications
| Size | 1 |
|---|---|
| Surface Finish | Shot Peened |
| For Bolt (mm) | 5.0-8.0 |
| Pilot Drill (inch) | 1/8 |
| Pilot Drill (mm) | 3 |
| Maximum RPM | : |
| For Bolt (inch) | 13/64-5/16 |
Product Features
- Chrome Molybdenum square screw extractor
- They are ideally suited for removing broken bolts
- Square screw extractors feature four sided sharp undercut edges to provide a solid grip and will not expand damaged fastener during extraction
They are ideally suited for removing broken bolts, studs & socket screws from medium to hard metals. Select a drill bit that is suitable for drilling into the specific material - typically HSS or HSS-Co5. Ideally the drill should be "Left Hand" which will prevent further tightening of the fixing during drilling.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo Square Screw Extractor: 1
SKU: A0207434 | Model: 9904-1
Size 1. Bordo MTS Adaptor for Annular Cutter
Chrome Molybdenum square screw extractor.
Square screw extractors feature four sided sharp undercut edges to provide a solid grip and will not expand damaged fastener during extraction.
They are ideally suited for removing broken bolts, studs & socket screws from medium to hard metals.
Typically the required screw extractor will be approx. 2/3 the diameter of the fixing you are extracting.
Use a centre punch to mark the centre of the fixing before drilling to prevent the drill bit wandering.
Select a drill bit that is suitable for drilling into the specific material - typically HSS or HSS-Co5.
Ideally the drill should be "Left Hand" which will prevent further tightening of the fixing during drilling.
When using left hand drills ENSURE THE DRILL IS SET TO REVERSE.
Drill pilot hole in centre of broken bolt, screw or stud.
Lightly tap screw extractor into hole and turn anti-clockwise with a tap wrench or spanner.
Damaged bolt, screw or stud will unwind out of the hole.
Avoid excessive lateral loads - breakage could result.
Wear eye and hearing protection.
