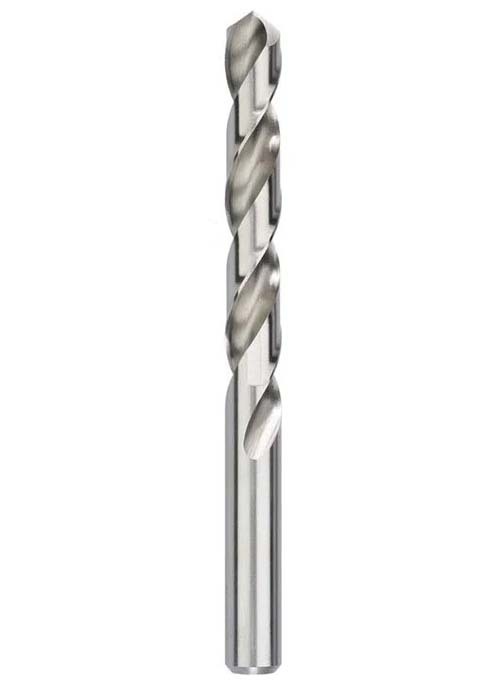

Bordo #1 Wire Gauge Quick Silver M2-HSS Twist Drill Bit(40-1Gauge)
Available
The Bordo Wire Gauge Quick Silver M2-HSS Twist Drill Bit(40-1Gauge) is part of Bordo's Australian range of jobber drill bits, built for reliable performance in trade and industrial applications.
Key Specifications
| Diameter (Gauge) | 1 |
|---|---|
| Diameter in (mm) | 5.79 |
| Spindle Speed Free Cutting Stl RPM | 2365 |
| Flute Type | 30° Helix |
| Flute Length (inch) | 2-5/8 |
| Overall Length (OAL) mm | 3-7/8 |
| Feed per Revolution (mm) | 0.13 |
| Spindle Speed Aluminium/Brass RPM | 3356 |
| Spindle Speed Stainless Steel RPM | 660 |
| Spindle Speed Wood/Plastic RPM | 5006 |
| Spindle Speed Malleable Iron RPM | 1485 |
| Spindle Speed Med. Carbon Steel RPM | 1650 |
| Spindle Speed Cast Iron RPM | 1320 |
| Spindle Speed Tool Steel RPM | 990 |
| Type of Point | 118° Std Chisel |
Product Features
- Bordo Wire Gauge Quick Silver M2-HSS Twist Drills
- Bright Finish Twist Drills have no surface treatment and are supplied in the as-ground condition
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo Wire Gauge Quick Silver M2-HSS Twist Drill Bit(40-1Gauge): 1
SKU: A0199058 | Model: 2013-1
Diameter (Gauge) 1. Bordo Wire Gauge Quick Silver M2-HSS Twist Drill Bit
Bordo Wire Gauge Quick Silver M2-HSS Twist Drills.
118° Split Point (crankshaft point).
Split point is self centering and reduces the need for end thrust. Friction at workpiece is reduced.
118° point angles are ideal for use in materials such as mild steel and cast iron.
The 118° point creates easily controlled chips which are wide and thin.
Bright Finish Twist Drills have no surface treatment and are supplied in the as-ground condition.
These tools are suitable for general purpose use, particularly for non-ferrous applications.
Gauge size drill calculations are generally made utilising a reference book or table.
For example, to drill a hole which is 10 thou (thousandth of an inch = .001) bigger than a 1/8" bolt, the user must first work out that 1/8" is 125 thou, so the required hole size is 135 thou. Using a reference table establishes that you would need a number 29.
Number drill bit gauge sizes are analogous to, but different from, American wire gauge.
Number gauge is most commonly used from size 80 (the smallest) to size 1 (the largest) followed by letter gauge size A (the smallest) to size Z (the largest).
Number gauge is actually defined down to size 97, but these smallest sizes are very rarely used.
