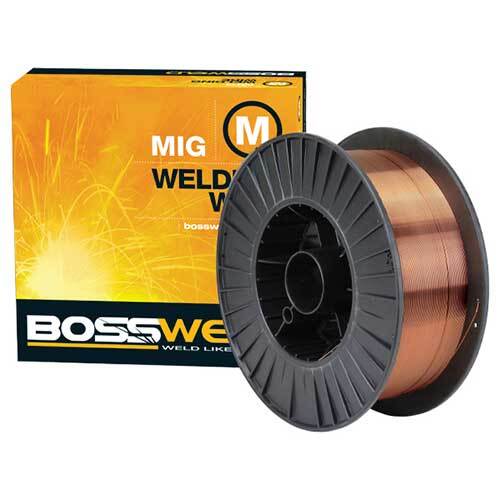

Bossweld 80S-D2 high tensile MIG wire, 1.2mm
Available
The Bossweld 80S-D2 High Tensile MIG Wire is a solid, copper-coated manganese-molybdenum wire for gas metal arc welding of medium to higher strength steels. Weld deposits are in the 550 MPa tensile class. It is classified AWS A5.28 ER80S-D2.
It suits short-arc, spray and pulsed arc transfer, and all-position and out-of-position welding. It comes in 0.9 and 1.2mm on 15kg spools.
Where this product is used
- Carbon manganese steels and higher strength steels
- Pressure vessels, boilers and pipelines
- High strength steels such as Bisalloy 60, 70 and 80 grades
- Out-of-position welding
Features
- Copper-coated manganese-molybdenum wire
- Classified AWS A5.28 ER80S-D2
- 550 MPa tensile class weld deposits
- Short-arc, spray and pulsed arc transfer
- All-position welding
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bossweld |
| Type | High tensile MIG wire |
| Current range | 70 to 240 A for 0.9mm, 110 to 350 A for 1.2mm |
| Voltage range | 15 to 25V for 0.9mm, 18 to 32V for 1.2mm |
| Diameters | 0.9 and 1.2mm |
| Spool weight | 15kg |
Choosing the right option
Match the wire to the steel grade and the procedure for the job.
See also: Bossweld 70S-6 Mild Steel MIG Welding Wire, Bossweld E70C-6M Metal Cored MIG Wire, Bossweld 71T-1M Flux Cored MIG Wire.
| Option | Part number | Diameter |
|---|---|---|
| 0.9mm | 200015 | 0.9mm |
| 1.2mm | 200016 | 1.2mm |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bossweld 80S-D2 High Tensile MIG Wire: 1.2 mm
SKU: A0147010 | Model: 200016
Bossweld 200016: 80S-D2 high tensile MIG wire, 1.2mm. Suits: MIG welding high strength steel. Diameter: 1.2mm.
