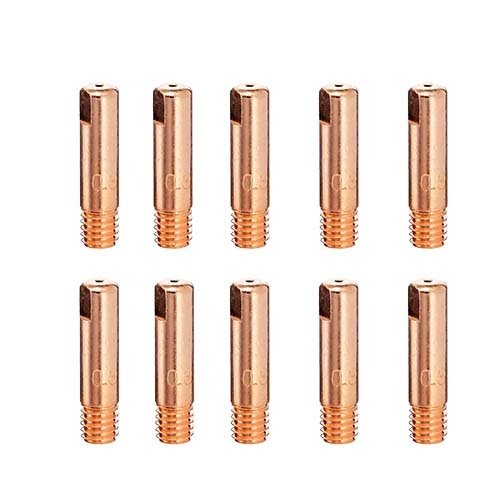

Bossweld binzel 501 Style Contact Tips, 0.8mm

Bossweld Binzel 501 Style Contact Tips 10mm Body fit Binzel 501 style MIG torches. They are supplied in 0.8, 1.4 and 1.6mm bores, and each pack holds 10 tips. Tip dimensions: 10mm body diameter.

Standard tips suit everyday MIG welding of steel and stainless steel wire. If you weld at higher current or for long arc-on times, a Heavy Duty tip in the same style is the step up.

Where this product is used

• General MIG welding of mild steel and stainless steel in workshops
• Maintenance and repair welding
• Routine replacement of worn tips on your existing torch

Features

• Standard contact tips for Binzel 501 style MIG torches
• Bore sizes: 0.8, 1.4 and 1.6mm
• 10mm body diameter
• Supplied in packs of 10

Key specifications

Choosing the right option

Match the bore to your wire diameter: a 1.2mm wire needs a 1.2mm tip. Check the thread and length against the tip you are replacing, because tips from different torch styles can look alike but will not interchange. Replace tips when the bore wears oversize, the arc becomes unstable or the wire starts to stick.

Matching parts for the same torch style: Bossweld Binzel 501 Style Adjustable Conical Nozzle 16mm (Pack of 2), Bossweld Binzel 501 Style Gas Diffuser, White (Pack of 2), Bossweld Binzel 501 Style Tip Holder M8 Short 28mm (Pack of 2), Bossweld Binzel 501 Style Swan Neck, Water-Cooled.
